Xinguo Heavy Industry 10 Ton Truck Crane with 5-section Boom 28m Lifting Height

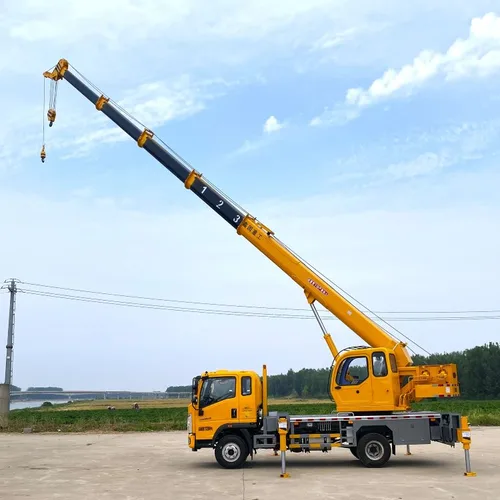

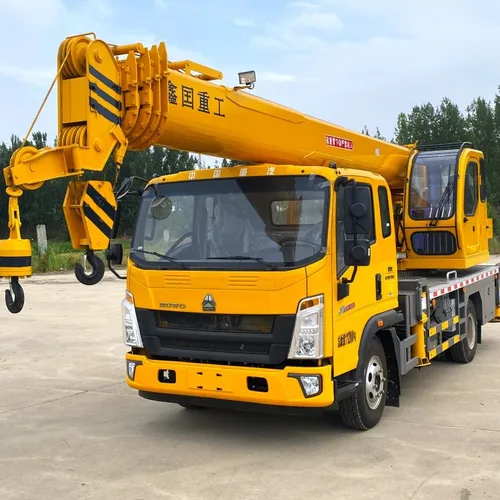

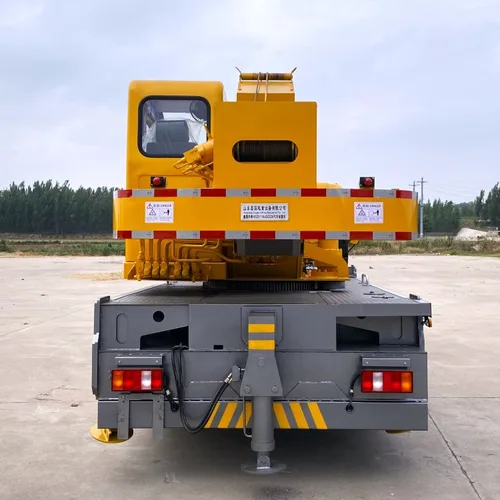

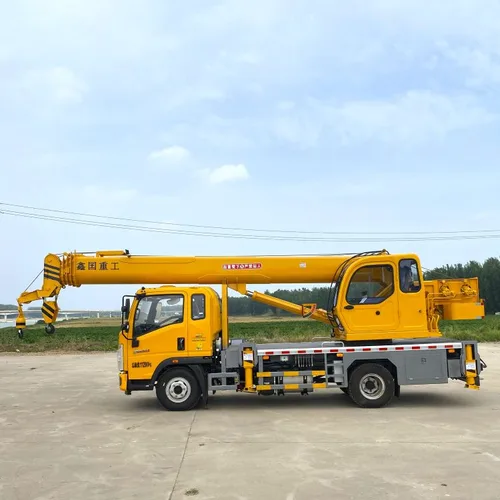

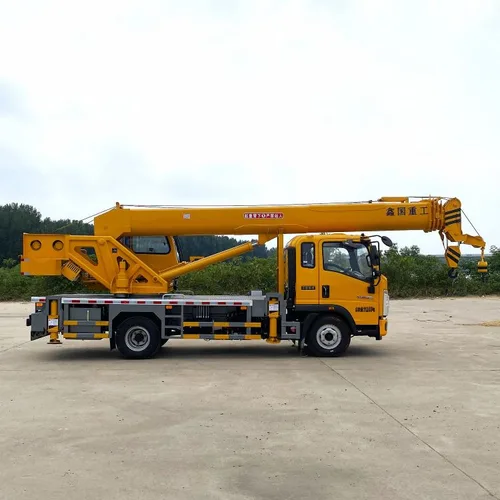

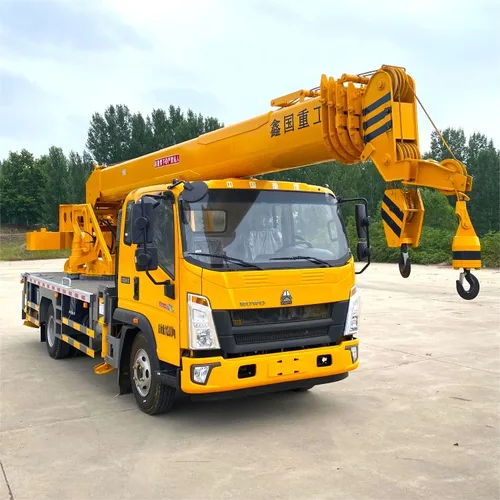

Xinguo Heavy Industry 10-ton truck crane is based on the Sinotruk Howo chassis, equipped with a 6.5m 5-section U-shaped external rope boom with a maximum lifting height of 28m. It adopts a full hydraulic drive system with strong power and stable operation. Suitable for municipal engineering, factory hoisting, road construction and landscaping, with various optional configurations, it is an efficient and reliable equipment for small and medium lifting operations.
$18000.00 - 22000.00
Send Message Contact Supplier
Jining Xinguo Intelligent Manufacturing Co., Ltd.

Jining Xinguo Intelligent Manufacturing Co., Ltd.

View Supplier
Registration Date December 19, 2025
Number of Employees 50+
Factory Area 5,000+ m²
Annual Sales 60 Million+ RMB
Main Products Cranes, Truck Cranes, 3-in-1 Cranes, Custom-Built Cranes
Target Markets Domestic, Middle East, Southeast Asia, Africa
Details
Specifications
This 10-ton truck crane is built on the Sinotruk Howo chassis, powered by a 150hp Weichai engine with sufficient power and low fuel consumption, reaching a driving speed of 80Km/h for flexible transfer. The upper structure is equipped with a 6.5m 5-section U-shaped external rope boom with a maximum lifting height of 28m, and the outrigger span is 6.22m×4.20m for stable operation.
The hydraulic system adopts inclined-axis winch and planetary reducer, with lifting speed up to 100-85m/min and slewing speed 0-3rpm for precise control. Equipped with a 40/32cc engine pump as standard, with optional motor pump for multiple power options. The crane is equipped with rear shifting top, electronic throttle and negative angle device, and optional computer torque limiter, limit switch, camera, hanging basket, etc., ensuring safe operation and meeting various lifting requirements.
Model
XGZ5110JQZZZ6
Chassis
Sinotruk Howo
Max Lifting Capacity
10000kg / 10 ton
Boom
6.5m 5-section U-shaped external rope boom
Max Lifting Height
28 meters
Outrigger Span
6.22m × 4.20m
Engine
Weichai 110KW/150HP
Max Speed
80Km/h
Gearbox
Wanliyang 5-speed with high/low range
Slewing Bearing
QW1000.25 (Φ1150mm)
Reducer
Planetary Reducer
Cabin
Luxury Operation Cabin
Gross Weight
11200Kg
  • Xinguo Heavy Industry 10 Ton Truck Crane with 5-section Boom 28m Lifting Height
  • Xinguo Heavy Industry 10 Ton Truck Crane with 5-section Boom 28m Lifting Height
  • Xinguo Heavy Industry 10 Ton Truck Crane with 5-section Boom 28m Lifting Height
  • Xinguo Heavy Industry 10 Ton Truck Crane with 5-section Boom 28m Lifting Height
  • Xinguo Heavy Industry 10 Ton Truck Crane with 5-section Boom 28m Lifting Height
  • Xinguo Heavy Industry 10 Ton Truck Crane with 5-section Boom 28m Lifting Height

Description

This 10-ton truck crane is built on the Sinotruk Howo chassis, powered by a 150hp Weichai engine with sufficient power and low fuel consumption, reaching a driving speed of 80Km/h for flexible transfer. The upper structure is equipped with a 6.5m 5-section U-shaped external rope boom with a maximum lifting height of 28m, and the outrigger span is 6.22m×4.20m for stable operation.
The hydraulic system adopts inclined-axis winch and planetary reducer, with lifting speed up to 100-85m/min and slewing speed 0-3rpm for precise control. Equipped with a 40/32cc engine pump as standard, with optional motor pump for multiple power options. The crane is equipped with rear shifting top, electronic throttle and negative angle device, and optional computer torque limiter, limit switch, camera, hanging basket, etc., ensuring safe operation and meeting various lifting requirements.
