XCMG Road Roller Gear Pump 803086849 CBFB-F25ALY-L | Hydraulic Pump XS183/XS263J

Name: XCMG Road Roller Gear Pump 803086849 CBFB-F25ALY-L | Hydraulic Pump XS183/XS263J
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

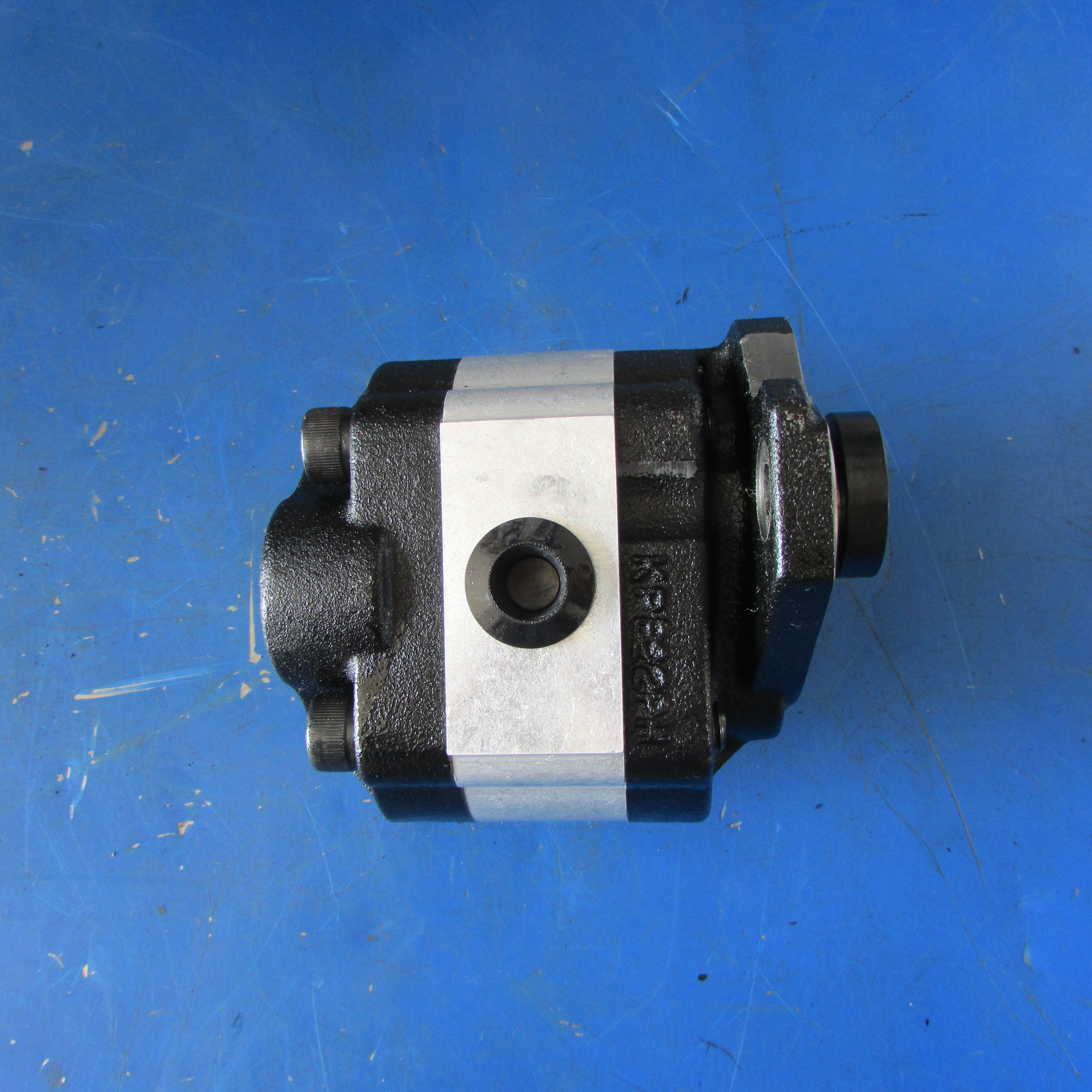

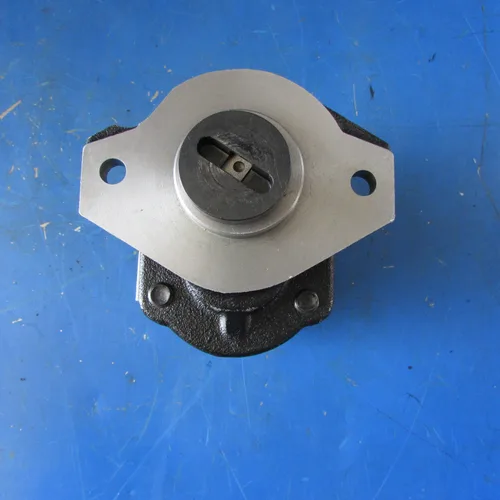

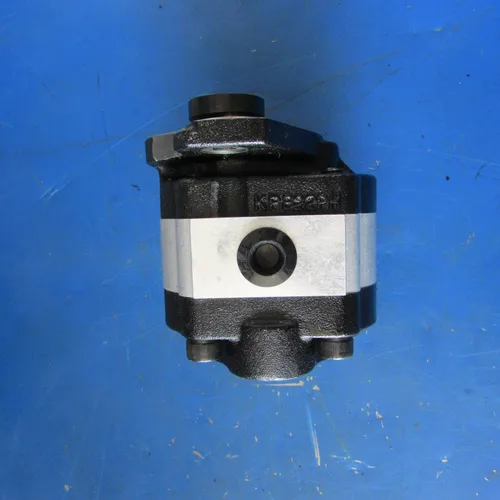

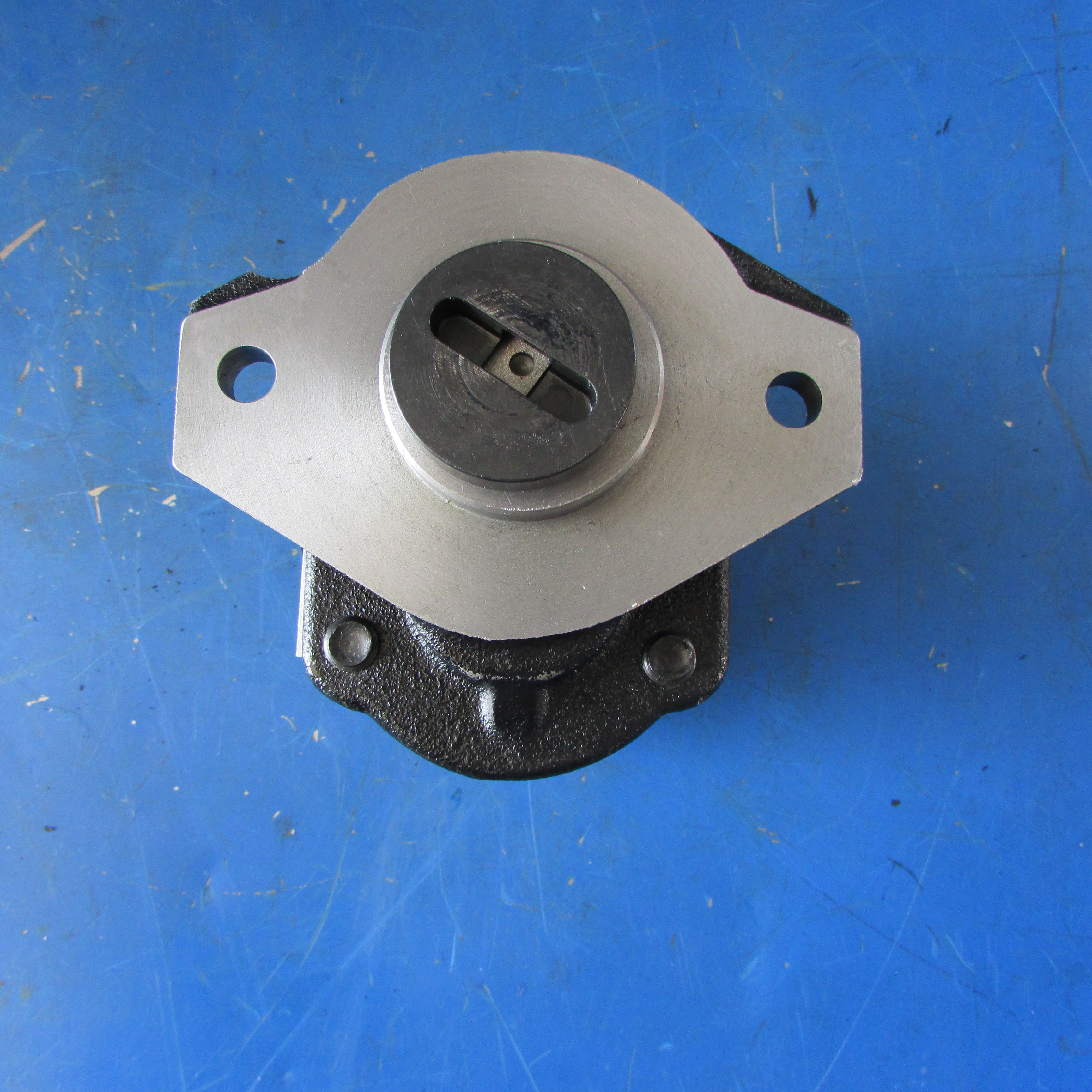

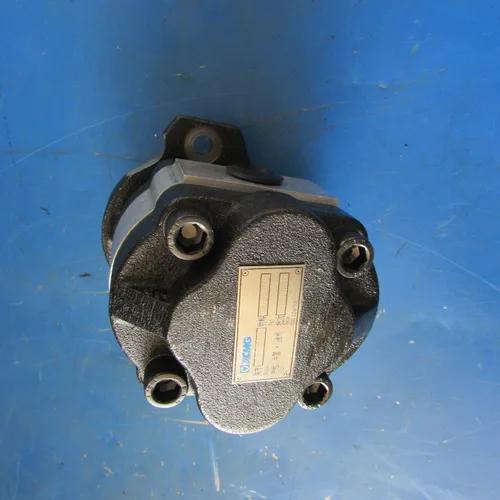

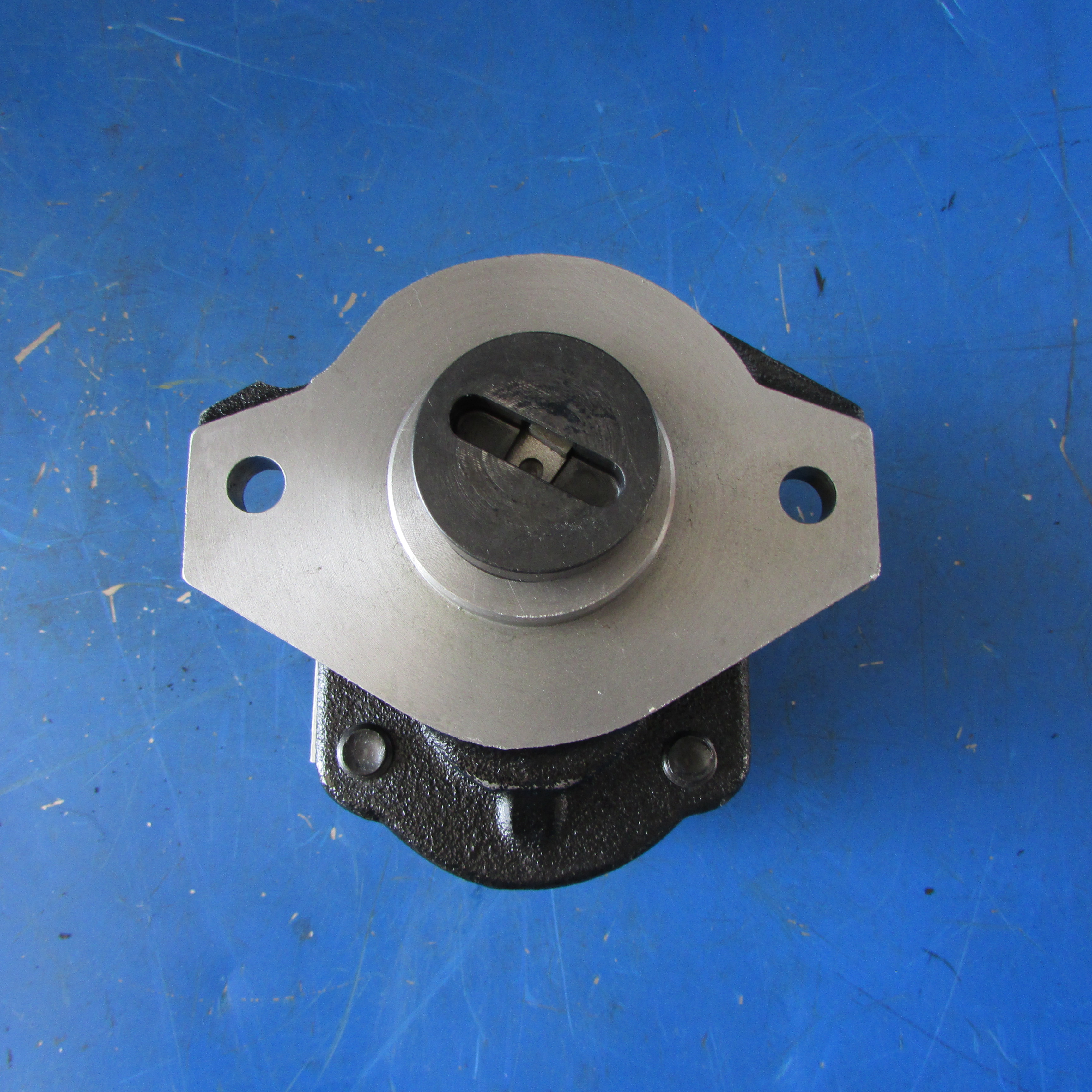

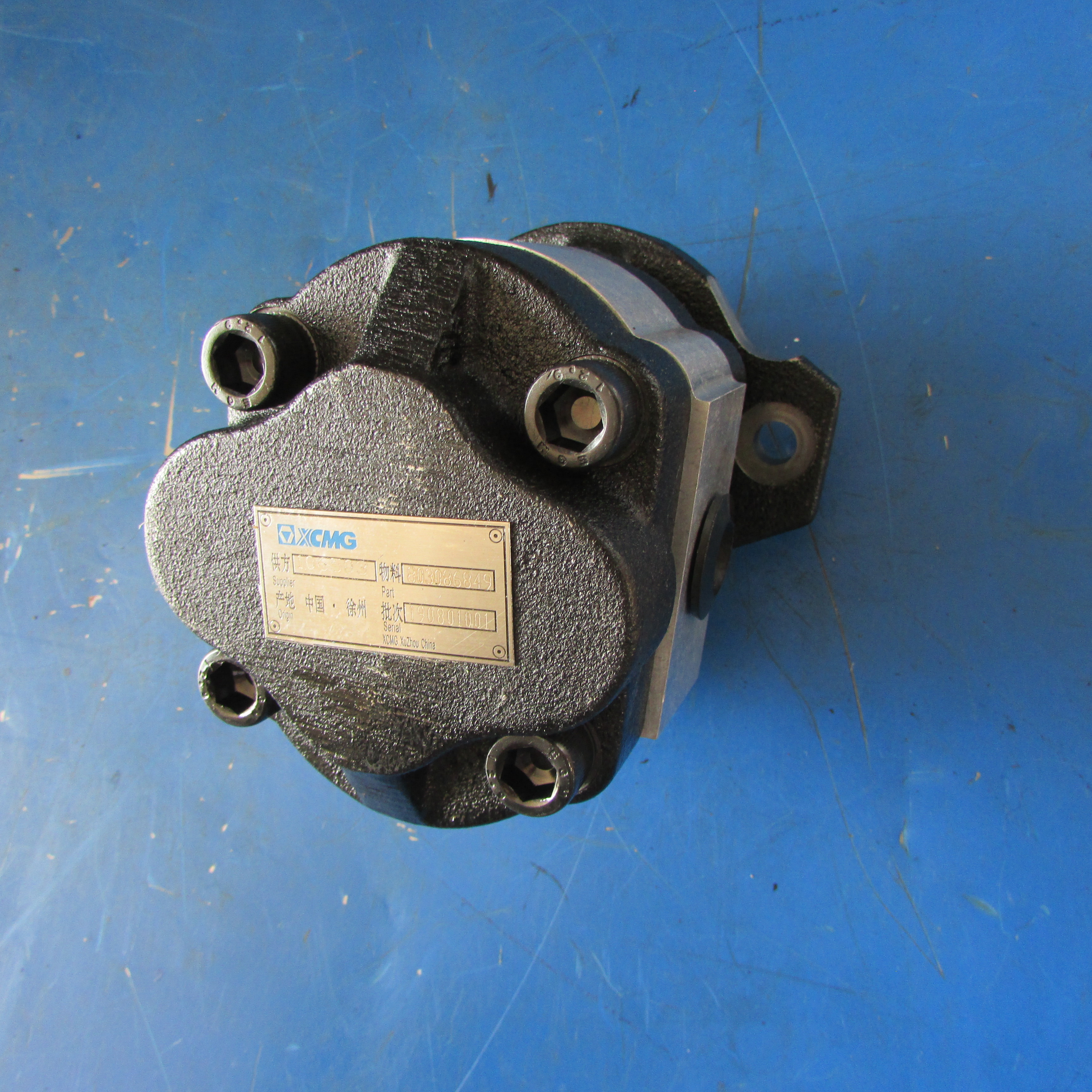

This Hydraulic Gear Pump (PN 803086849 / Model CBFB-F25ALY-L) is a high-pressure aluminum-body pump engineered for XCMG XS183 / XS263J vibratory road rollers, typically serving as a work-circuit or steering-circuit feed pump. Decoded from the model: F25 = 25 ml/r displacement, A = opposed-key shaft, L = left-hand rotation (viewed from shaft end), Y = threaded port connections—rated 20 MPa (max 25 MPa) at 2000–2500 r/min. The pump housing is high-strength aluminum alloy with hardened alloy steel gears; internal floating side plates with DU bearings provide automatic clearance compensation, maintaining high volumetric efficiency (>91%) even as the unit wears in. Direct flange-and-key mounting matches the OEM pump pad—same bolt pattern, same shaft centerline, same port thread—so installation requires no bracket mods or coupler changes. Each unit is bench-run for flow, pressure hold, and rotation verification before shipment.

$101.00

Send Message Contact Supplier

Xuzhou Hengming Machinery Equipment Co., Ltd.

Main Products: Full range of XCMG original spare parts

View Supplier

Year Established Established in 2008

Main Products Full range of XCMG original spare parts

Employees Less than 50 People

Factory Area 1,000-5,000 m²

Annual Revenue US$1 Million - US$5 Million

Main Markets Europe / Middle East & North Africa / Africa

Details

Specifications

Trade Information

✅ Type: External gear pump, high-pressure aluminum series (CBFB-F)
✅ Displacement: 25 ml/r
✅ Pressure: 20 MPa rated / 25 MPa max
✅ Speed: 2000 r/min rated / 2500 r/min max
✅ Rotation: Left-hand (L) – shaft-end view, confirm before install
✅ Shaft: Opposed-key (A), matches OEM coupling
✅ Ports: Threaded (Y)
✅ Fitment: XCMG XS183 / XS263J road rollers (verify circuit assignment per machine BOM)
✅ Construction: Aluminum body + DU floating side plates + hardened steel gears

Material code:

803086849

Material Description:

CBFB-F25ALY-L gear pump

MOQ

1 Pieces

Description

✅ Type: External gear pump, high-pressure aluminum series (CBFB-F)
✅ Displacement: 25 ml/r
✅ Pressure: 20 MPa rated / 25 MPa max
✅ Speed: 2000 r/min rated / 2500 r/min max
✅ Rotation: Left-hand (L) – shaft-end view, confirm before install
✅ Shaft: Opposed-key (A), matches OEM coupling
✅ Ports: Threaded (Y)
✅ Fitment: XCMG XS183 / XS263J road rollers (verify circuit assignment per machine BOM)
✅ Construction: Aluminum body + DU floating side plates + hardened steel gears
