Product Overview

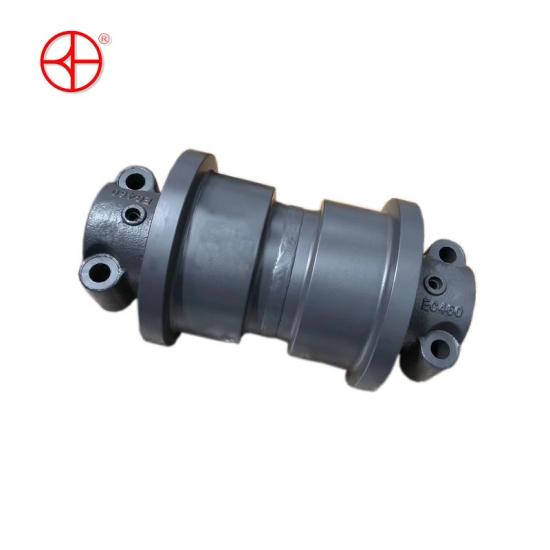

The Track Roller — also called Bottom Roller or Lower Roller — is the load-bearing roller mounted under the track frame of the Volvo EC460 excavator. It carries the full machine weight, keeps the track chain aligned, and transfers the load evenly to the ground. A worn or seized track roller causes track misalignment, accelerated wear on the chain and sprocket, and expensive downtime on the jobsite. Our rollers are engineered for the Volvo EC460 undercarriage family, covering the EC460, EC460B, EC460BLC and EC460LC series for a direct, bolt-on replacement.
Key Features & Benefits
Technical Specifications
| Item | Specification / Detail |
|---|---|
| Machine Model | Volvo EC460 / EC460B / EC460BLC / EC460LC Excavator |
| Part Type | Track Roller (Bottom Roller / Lower Roller) |
| OEM Part Numbers | 1081-01800 / 1081-02570 |
| Cross Reference Number | 1081-04411 (Volvo EC360 / EC460 series) |
| Flange Type | Single Flange (SF) / Double Flange (DF) |
| Material | High-strength Alloy Steel (35SiMn / 40Mn2) |
| Surface Hardness | HRC 50-56 |
| Hardening Depth | 5mm - 10mm |
| Sealing | Heavy-duty floating oil seal, lifetime lubricated |
| Mounting | OEM standard, bolt-on direct replacement |
| Shipping Note | Heavy part — sea freight recommended for quantity orders |
Why Trust Our Undercarriage Solutions?
For a 46-ton class excavator like the EC460, every track roller carries a significant share of the machine's total weight — a failed roller means track misalignment, extra wear on the entire undercarriage and expensive downtime. Every roller we produce is 100% inspected for hardness, dimensional accuracy and sealing quality before shipment. Our goal is to deliver genuine-compatible durability at a more competitive price, backed by a clear warranty. Contact us with your machine serial number, current part number and position (left/right, SF/DF) to confirm the correct fitment.
