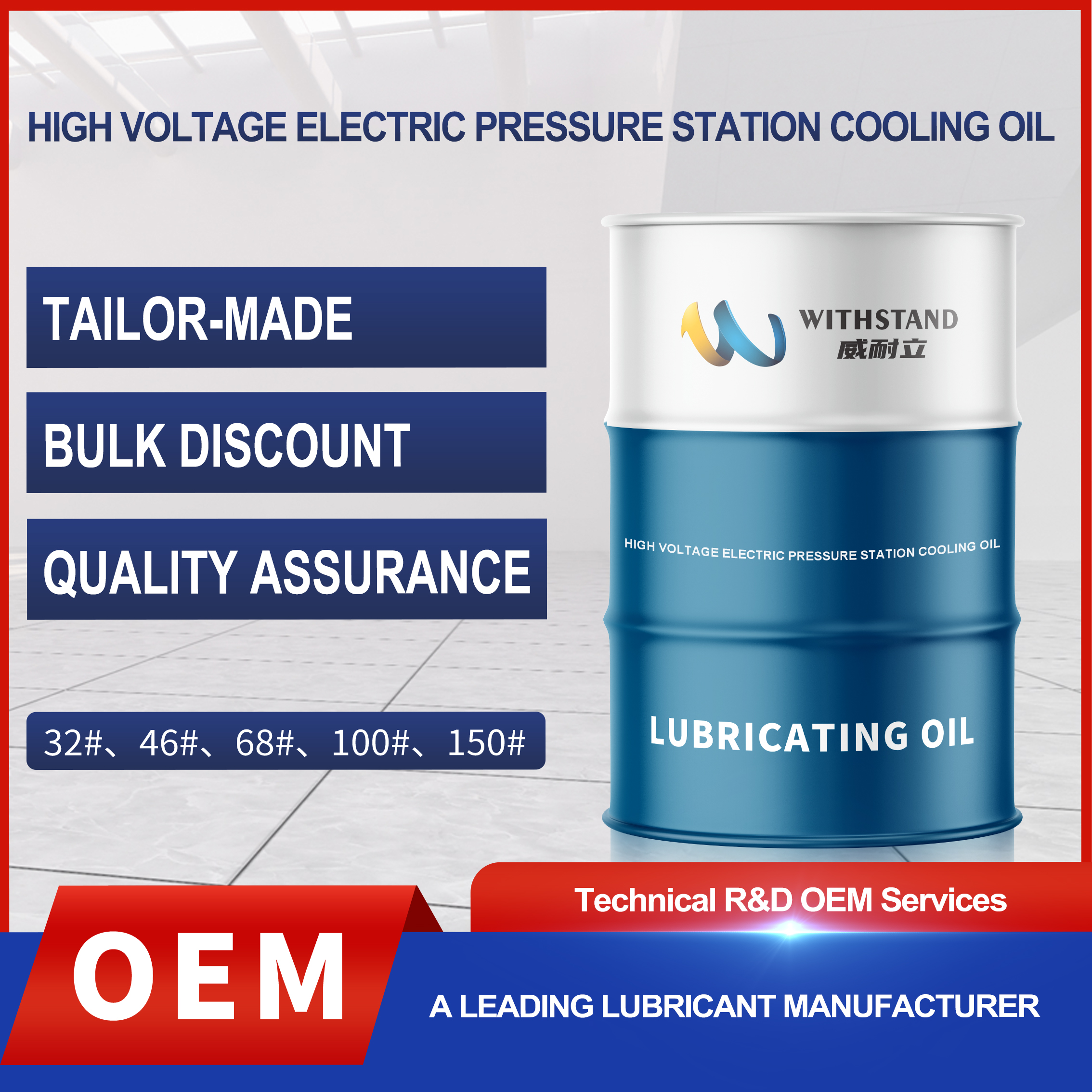

Ultra High Voltage Transformer Oil

Name: Ultra High Voltage Transformer Oil
Brand: GLOBALMACHEX
SKU: 25#45#
Availability: InStock
Rating: 5 (1 reviews)

High Voltage Electric Pressure Station Cooling Oil

Our High Voltage Electric Pressure Station Cooling Oil is a premium fluid specially crafted for high-voltage electrical pressure stations, engineered to handle the extreme heat and high-voltage working conditions of core electrical equipment. Made from high-quality naphthenic base oil with advanced hydrofining technology, it acts as cooling medium, insulation barrier and impurity cleaner all in one, ensuring stable and safe long-term operation of your pressure station equipment, reducing downtime and maintenance costs effectively.

$380.00

18L:

200L

Send Message Contact Supplier

Jining De Nai Chi New Energy Co., Ltd.

View Supplier

Registration Date 2016

Company Size 21,000 m²

Employees 100 persons

Storage Capacity 100,000 tons

Production Lines 20

Patents 30

Profit and Tax Contribution 14 million USD

Certifications ISO 9001, ISO 14001, IATF 16949, ISO 4500

Main Products: Construction Machinery Lubricants, Automotive Lubricants, Industrial & Special Oils, Metalworking Fluids

Oversea Warehouses: South Africa Warehouse, Russia Warehouse, Kazakhstan Warehouse, Southeast Asia Warehouse

Details

Technical requirements

Item			Quality Index					Test Method
Lowest Cold Start Temperature (LCSET)			0℃	-10℃	-20℃	-30℃	-40℃
Functional Characteristics	Pour Point / ℃ ≤		-10	-20	-30	-40	-50	GB/T 3535
	Kinematic Viscosity / (mm²/s) 40℃ ≤ 0℃ ≤ -10℃ ≤ -20℃ ≤ -30℃ ≤ -40℃ ≤		12 1800 - - - -	12 - 1800 - - -	12 - - 1800 - -	12 - - - 1800 -	12 - - - - 2500	GB/T 265 NB/SH/T 0837
	Water Content / (mg/kg) ≤		30/40					GB/T 7600
	Breakdown Voltage (meet one of the following requirements) / KV Untreated Oil ≥ Treated Oil ≥		30 70					GB/T 507
	Density (20℃) / (kg/m³) ≤		895					GB/T 1884 and GB/T 1885
	Dielectric Dissipation Factor (90℃) ≤		0.005					GB/T 5654
Refining / Stability Characteristics	Appearance		Clear and transparent, no sediment or suspended matter					Visual Inspection
	Acid Value (as KOH) / (mg/g)		≤ 0.01					NB/SH/T 0836
	Water-Soluble Acid or Alkali		None					GB/T 259
	Interfacial Tension / (mN/m)		≥ 40					GB/T 6541
	Total Sulfur Content (mass fraction) / %		No general requirement					SH/T 0689
	Corrosiveness		Non-corrosive					SH/T 0804
	Antioxidant Additive Content* (mass fraction) / % Oil without antioxidant additive (U) Oil with trace antioxidant additive (T) Oil with antioxidant additive (I)		Not detectable ≤ 0.08 0.08～0.40					SH/T 0802
	2-Furfural Content / (mg/kg)		≤ 0.1					NB/SH/T 0812
Operational Characteristics	Oxidation Stability (120℃)		1.2					NB/SH/T 0811
	Test Time: 164h for oil without antioxidant additive (U) 332h for oil with antioxidant additive (I) 500h for oil with antioxidant additive (I)	Total Acid Value (as KOH) / (mg/g)
		Sludge (mass fraction) / % ≤	0.8
		Dielectric Dissipation Factor (90℃) ≤	0.500					GB/T 5654
	Gas Evolution Rate / (mm³/min)		No general requirement					NB/SH/T 0810
Health, Safety and Environmental (HSE) Characteristics	Flash Point (Closed Cup) / ℃ ≥		135					GB/T 261
	Polycyclic Aromatic Hydrocarbon (PCA) Content (mass fraction) / % ≤		3					NB/SH/T 0838
	Polychlorinated Biphenyl (PCB) Content (mass fraction) / (mg/kg)		Not detectable					SH/T 0803
Note 1: "No general requirements" means that whether or not the project is tested is determined through negotiation between the supplier and the buyer, and the detection limits are also determined through negotiation between the supplier and the buyer. Note 2: Any items in the technical requirements marked as "no general requirements" or "whether to use this method for testing is determined through negotiation between the supplier and the buyer" are non-mandatory.

Product Advantages

Excellent heat dissipation: Fast heat conduction and low viscosity enable efficient heat transfer, keeping equipment at a stable working temperature.
Strong insulation performance: High dielectric breakdown voltage prevents short circuits and electric leakage in high-voltage systems.
Good oxidation stability: Resists sludge and acid formation, extending oil service life and reducing replacement frequency.
Wide temperature adaptability: Low pour point and high flash point work well in both cold and high-temperature environments.

Production Advantages

We adopt precision fractionation and strict quality control processes in production, with each batch of oil tested for key performance indicators. Our self-developed additive formula enhances the oil's comprehensive performance, and the automated production line ensures consistent product quality. We also use environmentally friendly production techniques, meeting international environmental and industrial standards.

Customer Reviews

"A reliable cooling oil for our 500kV pressure station—heat dissipation is great and equipment runs stably for over a year without oil change." — Power Engineering Co., Europe"Perfect insulation and cooling effects, solved our equipment overheating problem, and the after-sales service is very responsive." — Electrical Equipment Maintenance Co., Asia

SERVICES

Sample provision for performance testing before bulk purchase.
Professional technical support for oil selection and usage guidance.
Fast global shipping with reliable logistics partners and on-time delivery.
After-sales follow-up to solve product usage problems in time.

FAQ

What is the service life of this cooling oil?It can be used for 3-5 years under normal working conditions of pressure stations.
Is it compatible with other brand cooling oils?We do not recommend mixing, as it may affect performance; clean the system before replacement.
How to store this oil properly?Store in a sealed container in a cool, dry place, away from direct sunlight and open fire.
Does it meet international industrial standards?Yes, it complies with IEC 60296 and other major international electrical oil standards.
Can it be used for all high-voltage pressure station equipment?It is suitable for transformers, switchgear and other core equipment of high-voltage electric pressure stations.
How to test the oil performance during use?We provide professional testing methods and can also offer on-site testing service if needed.
Do you provide oil replacement and maintenance guidance?Yes, our technical team can provide online guidance for oil replacement and equipment maintenance.
