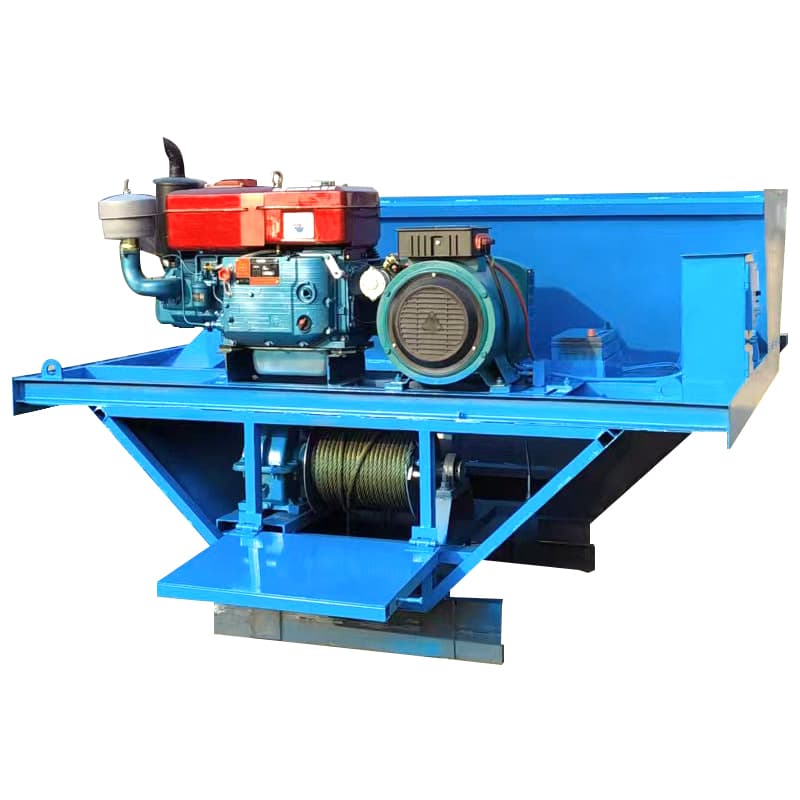

Towed Concrete Canal Slipform Paver
1. Overview & Key Keywords
A Towed Concrete Canal Slipform Paver, also commonly known as a Canal Lining Machine or Trench Forming Machine, is a specialized piece of heavy construction equipment designed for the efficient, continuous, and high-quality construction of linear irrigation channels, drainage ditches, and roadside gutters. It operates on the slipforming principle, integrating concrete placement, vibration, and shaping into a single, automated process.
Core Keywords: Towed Canal Slipform Paver, Canal Lining Machine, Trench Forming Machine, Concrete Channel Machine, Slipform Technology, U-Shaped Ditch Machine, Irrigation Channel Paver.
2. Primary Function & How It Works

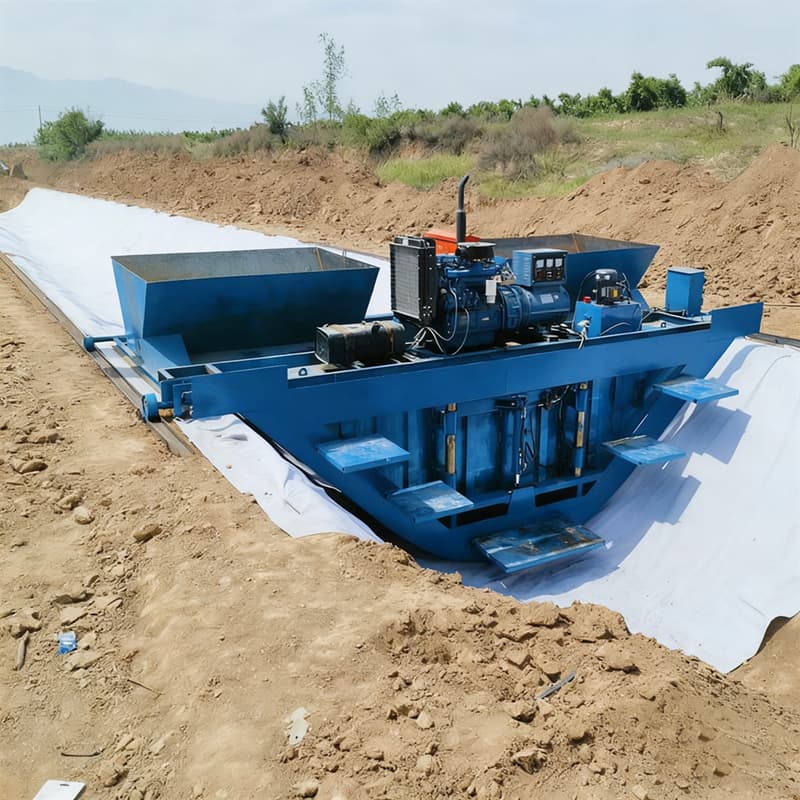

The machine's core function is to form monolithic, reinforced concrete channels in a continuous pass. It is typically towed by a winch and cable system or a tractor along a pre-excavated subgrade trench.
Process Flow: Ready-mix concrete is fed into the machine's hopper. The concrete is then distributed, compacted by internal high-frequency vibration motors, and extruded through a specially shaped, heavy-duty steel mold (forming box). As the machine is pulled forward, it leaves behind a perfectly shaped, dense, and smooth concrete channel in its wake.

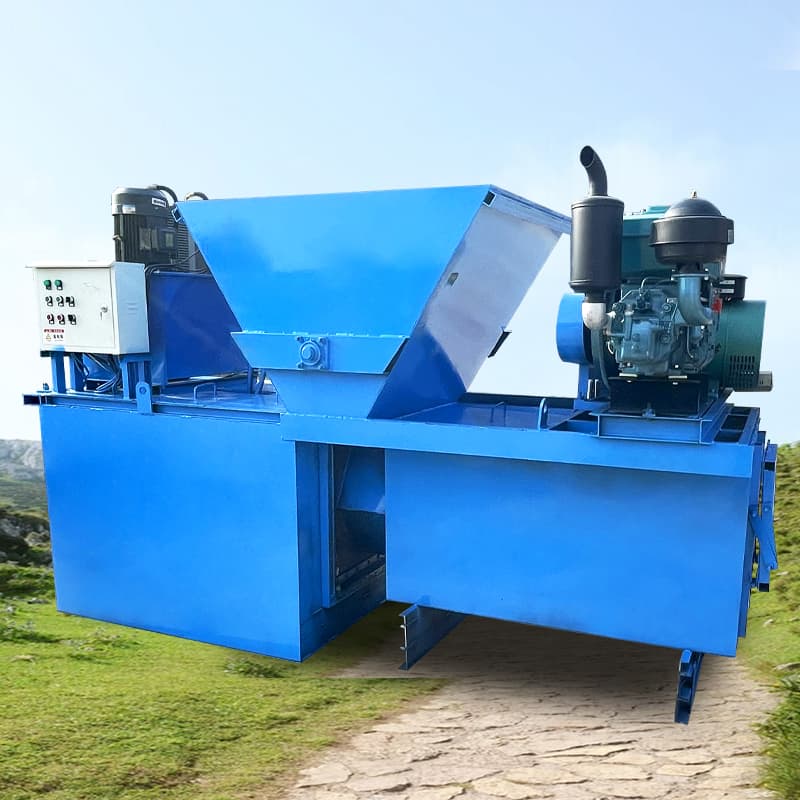

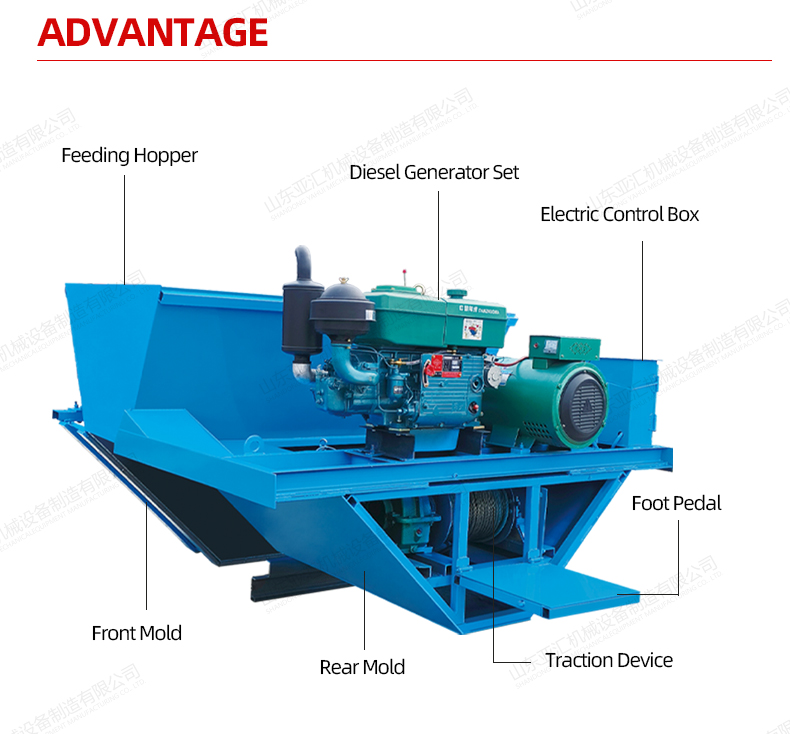

Key Components: Towing Winch & Anchoring System, Main Frame with Mold, High-Frequency Vibrators, Concrete Hopper and Auger, and Operator Control Panel.
3. Main Applications & Role

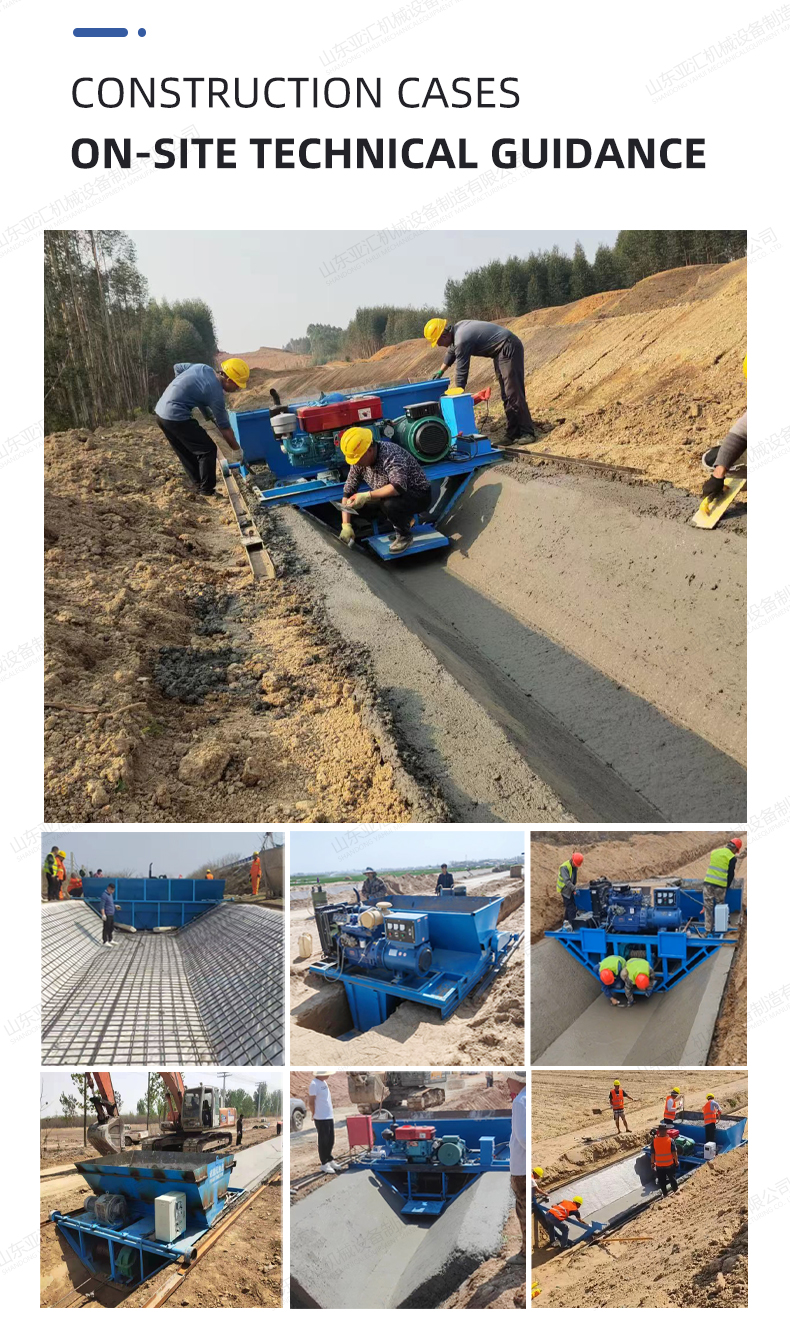

This machine plays a pivotal role in modern agricultural and civil water management projects:
Agricultural Irrigation: Constructing precise, water-efficient U-shaped or trapezoidal channels to replace earth ditches, significantly reducing water seepage.
Land Drainage & Flood Control: Creating efficient drainage networks to manage surface water and prevent waterlogging.
Road & Highway Construction: Building standardized roadside drainage gutters and culverts.
Its fundamental role is to mechanize a traditionally labor-intensive process, ensuring consistency, speed, and quality that manual methods cannot achieve.
4. Key Advantages & Benefits
The adoption of a Canal Slipform Paver offers substantial competitive and operational advantages:
Advantage Category
|
Specific Benefits
|
|---|
Unmatched Efficiency
|
High Construction Speed: Can complete 50-150 meters of channel per hour, dramatically reducing project timelines.
|
Superior Quality & Consistency
|
Monolithic Structure: Eliminates joints, minimizing leakage points.
Excellent Density & Strength: Vibration ensures optimal compaction.
Precise Dimensions: Produces uniform cross-sections with smooth finishes.
|
Significant Cost Reduction
|
Low Labor Dependency: Requires only 2-3 operators versus a large manual crew.
Reduced Material Waste: Precise concrete placement minimizes over-pour.
Lower Long-Term Maintenance: High-quality, durable linings require less upkeep.
|
Enhanced Operational Benefits
|

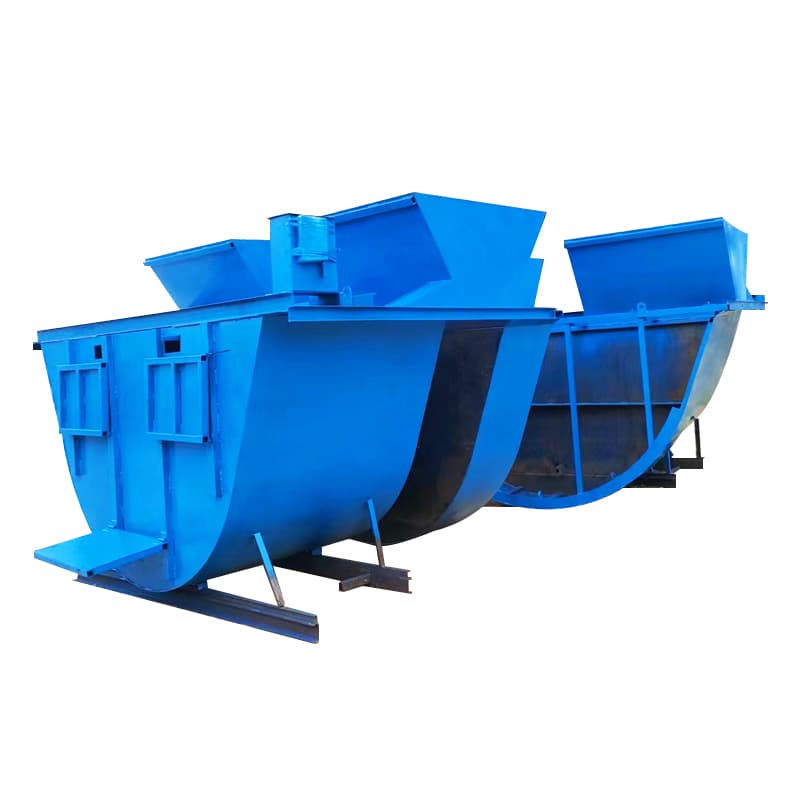

Versatility: Interchangeable molds allow for different shapes (U-type, trapezoidal, rectangular) and sizes.
Adaptability: Can work on various terrains and grades.
Improved Water Conservation: The impermeable lining increases water delivery efficiency to farms by up to 30-50%.
|
5. Conclusion
In summary, the Towed Concrete Canal Slipform Paver is an indispensable machine for modern large-scale water channel construction. It seamlessly combines slipform technology with robust engineering to deliver a product that is faster to build, superior in quality, and more economical in the long run compared to traditional methods, making it the preferred choice for contractors and government projects worldwide.
