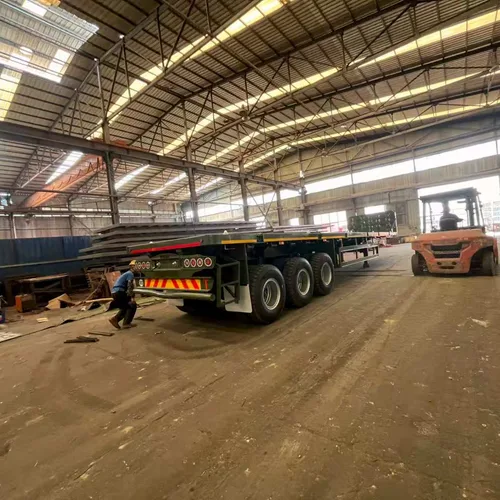

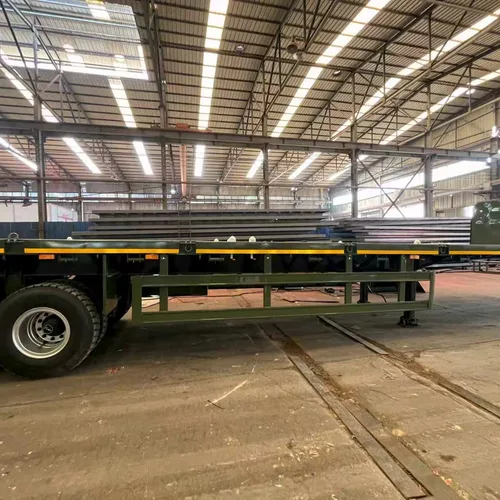

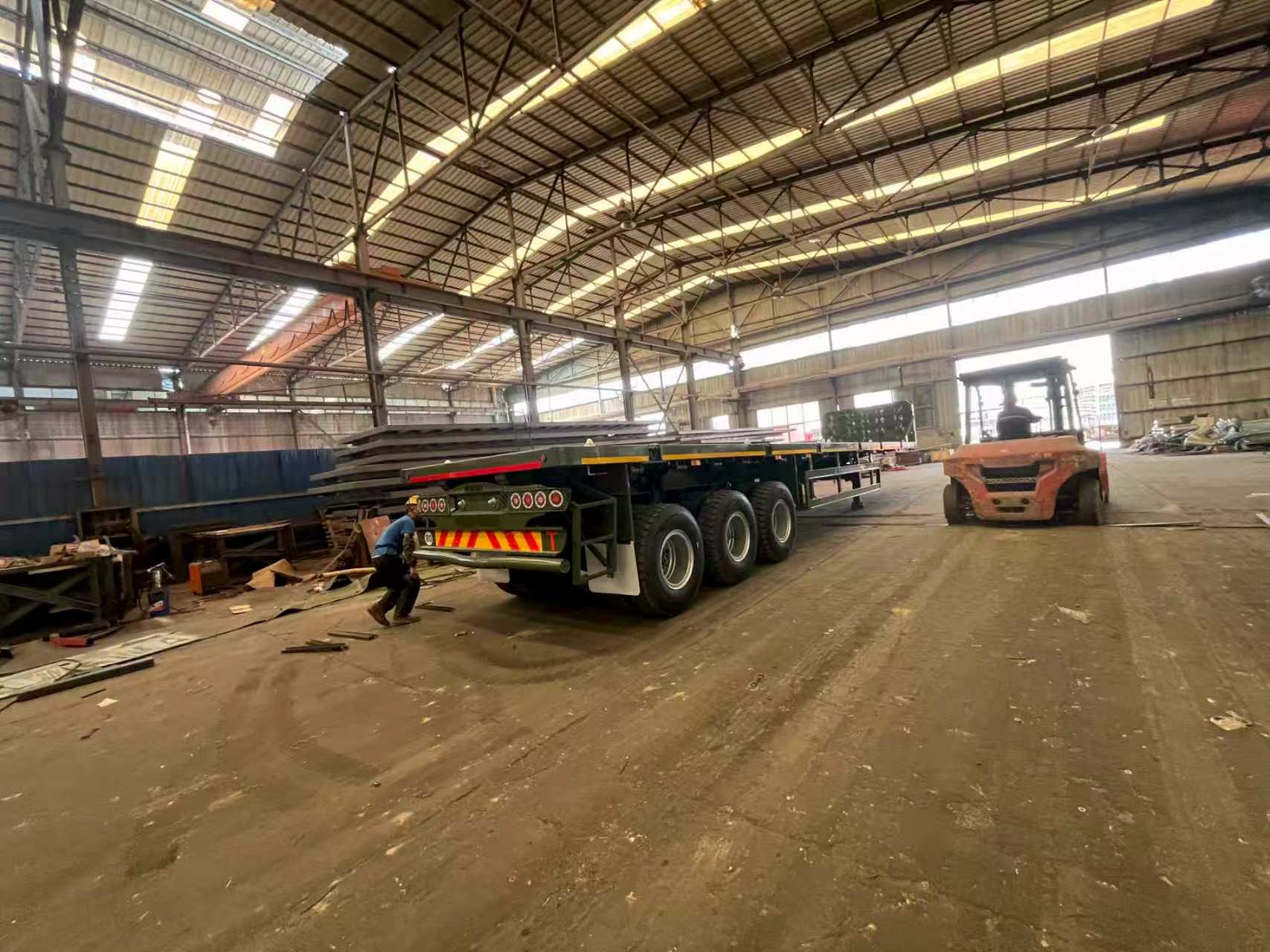

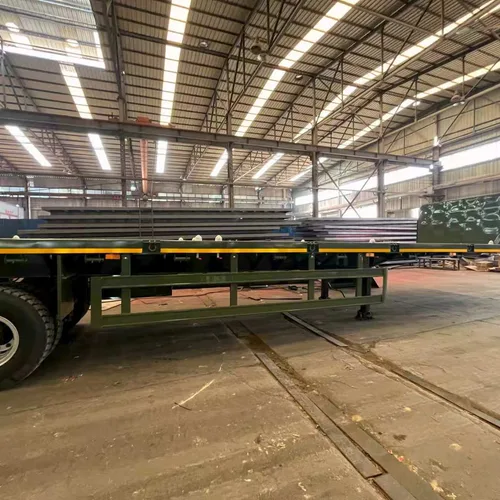

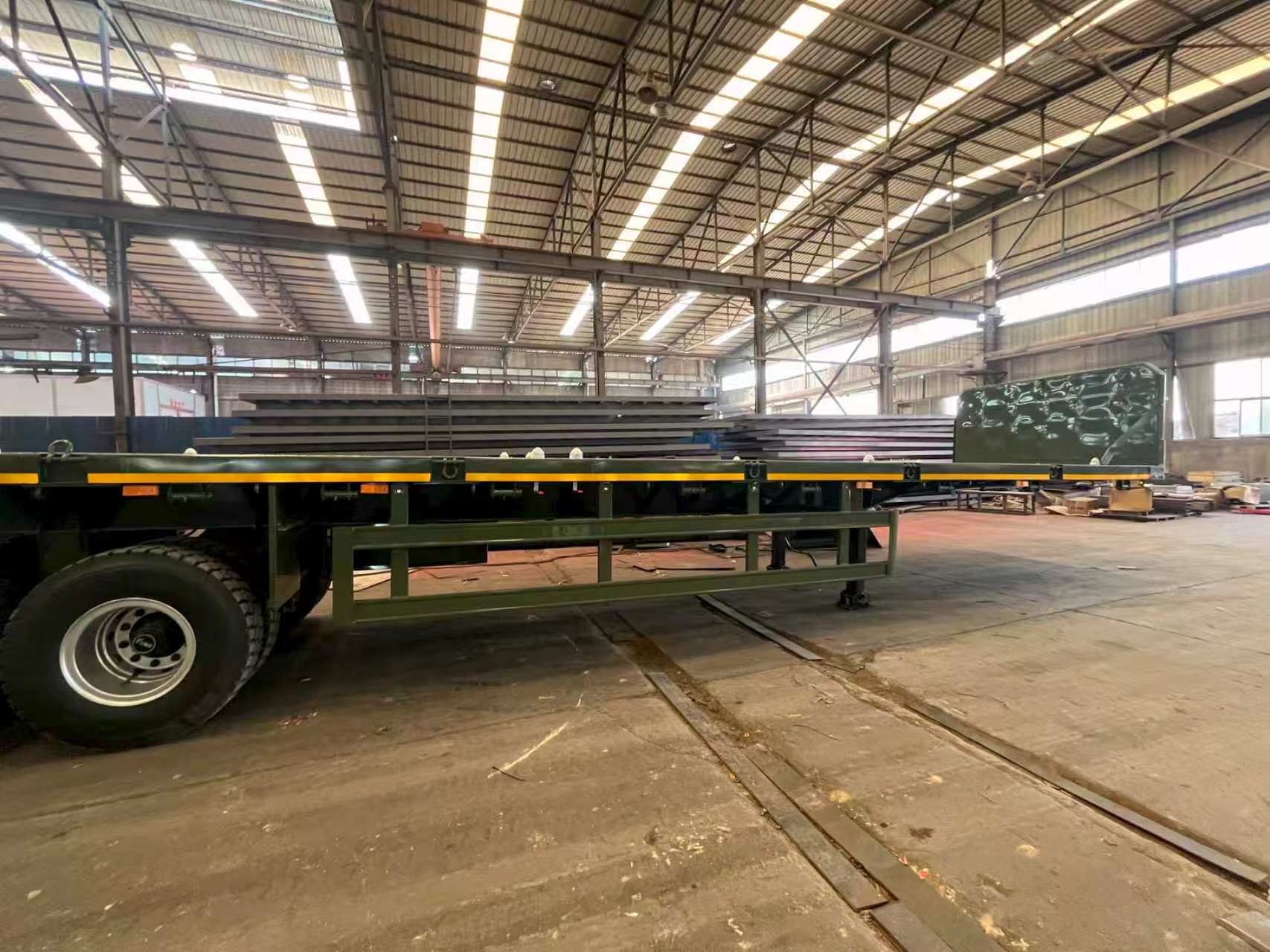

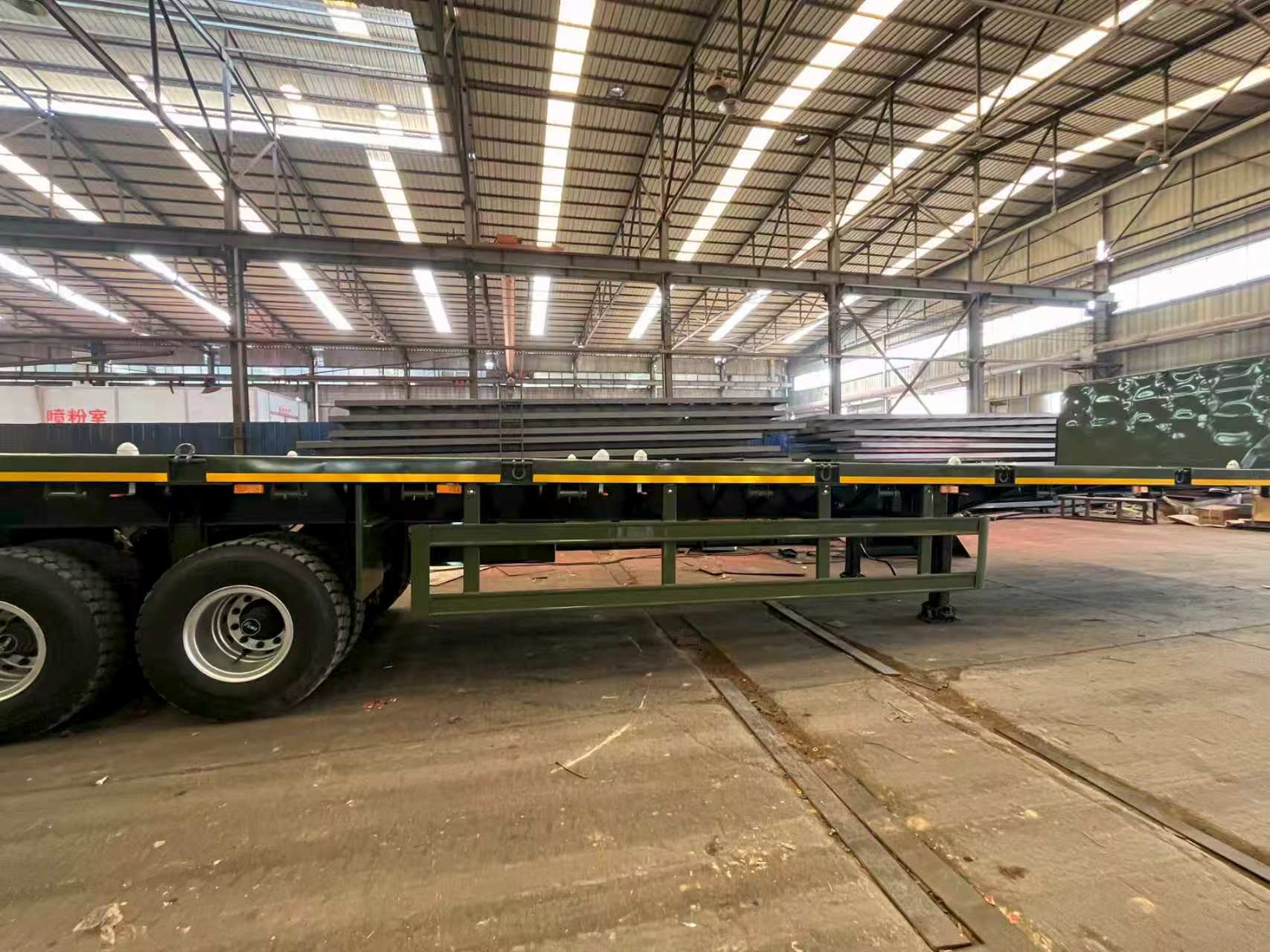

Standard Flatbed Semi-trailer for Africa & Middle East General Goods & Steel Haulage

Name: Standard Flatbed Semi-trailer for Africa & Middle East General Goods & Steel Haulage
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

3-axle flatbed semi trailer built with Q345B high tensile through beam, 13m standard deck rated load 30~40Ton, optional FUWA/BPW axle and ABS brake. Foldable front bulkhead enables over-length pipe loading, optional twist locks & lashing rings for multi-purpose cargo like steel, container and general goods, exported to Africa, Middle East & Southeast Asia.

$8826.00 - 11768.00

Send Message Contact Supplier

Liangshan Huachang Trailer Manufacturing Co., Ltd.

View Supplier

Year Established Established in 2007

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Heavy-duty Q345 Through Beam Against Distortion
500mm high box-type main beam with full submerged arc welding keeps chassis stable under full steel & machinery load on rough unpaved roads.

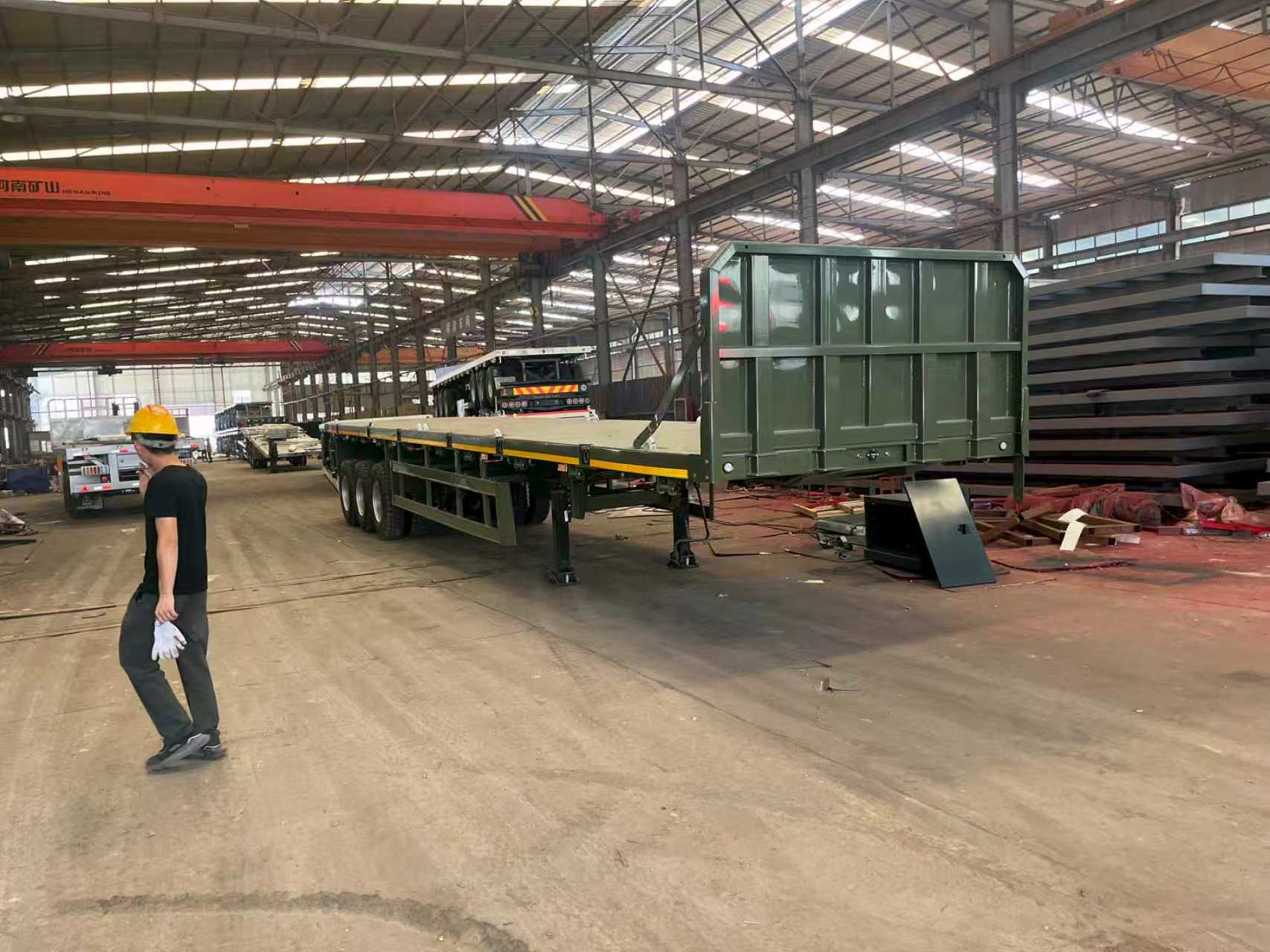

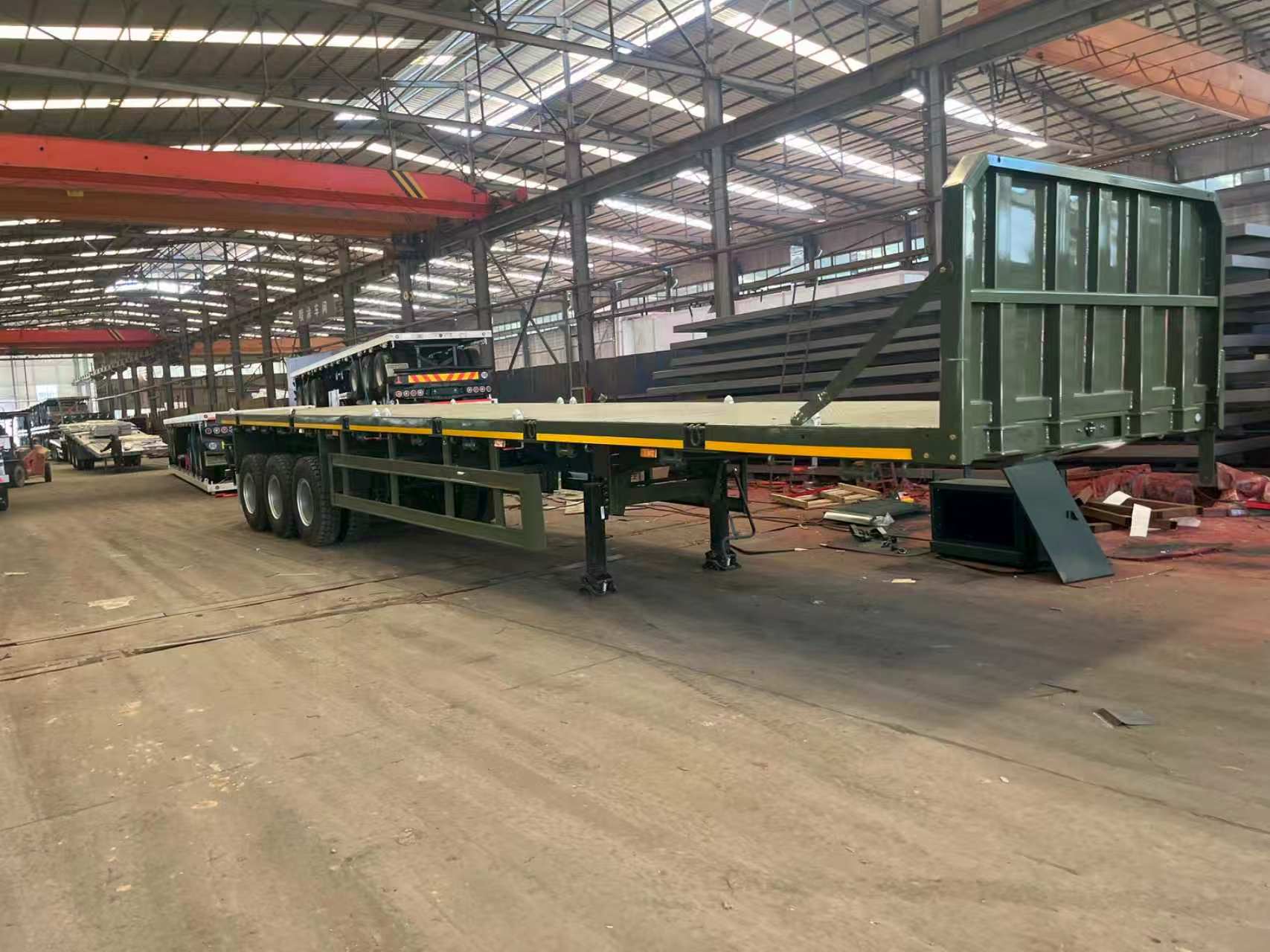

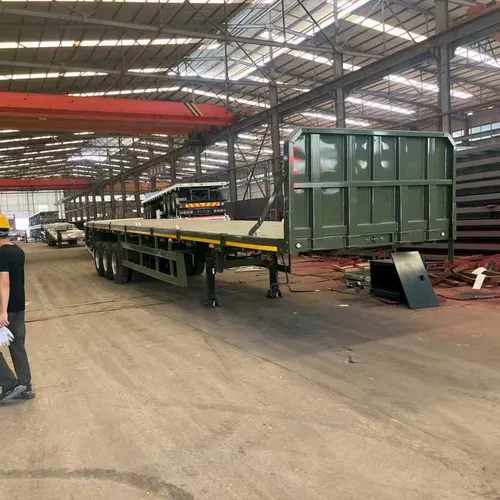

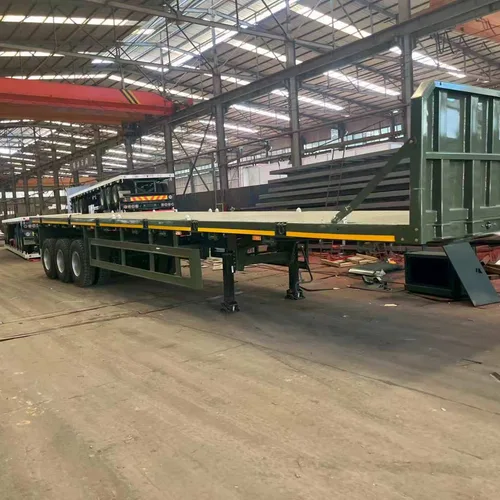

Foldable Front Board for Over-length Cargo
Droppable front bulkhead lets long steel pipe & profile extend forward beyond deck limit to avoid cargo splitting, greatly improving loading efficiency for oversize goods.
Multi-purpose Flat Deck for All Cargo Types
Open flat floor allows 4-side forklift/crane loading; side lashing rings for loose goods plus optional twist locks for ISO container realize multi-scenario transportation.
Global Aftermarket Spare Parts Support
Worldwide available FUWA/BPW axle and ABS spare parts reduce local maintenance cost and downtime in overseas emerging markets.
Full Customization & Complete Export Service
Custom deck length, plate thickness and body color, full set of customs clearance & container shipping for bulk global export.

Model

3 Axle Flatbed Semi Trailer with Foldable Front Bulkhead

Overall Size

Length:13m(Custom12.5/13.75m), Width:2.55m

Deck Size

Effective Deck:12.5~13.5m×2.48m

Main Beam

Q345B Mn Steel, Beam Height500mm, Web8/10mm

Floor Plat

3/4/5mm Checkered Plate, Extra Thick Wear Plate Optional

Empty Weight

6~7.5Ton

Axle & Tyre

3×13Ton Axle(FUWA/BPW Opt),12pcs 12R22.5 Tubeless Tyre

Rated Load

Standard:30~40Ton, Heavy Custom:50~60Ton

Suspension

Mechanical Leaf Spring, Air Suspension Optional

Lashing Parts

Side Lashing Rings, Optional Container Twist Locks & Toolbox

Landing Gear

Double-action Hydraulic Landing Gear

Brake

Dual-line Air Brake + Standard ABS, WABCO Valve Optional

Description

Heavy-duty Q345 Through Beam Against Distortion
500mm high box-type main beam with full submerged arc welding keeps chassis stable under full steel & machinery load on rough unpaved roads.
Foldable Front Board for Over-length Cargo
Droppable front bulkhead lets long steel pipe & profile extend forward beyond deck limit to avoid cargo splitting, greatly improving loading efficiency for oversize goods.
Multi-purpose Flat Deck for All Cargo Types
Open flat floor allows 4-side forklift/crane loading; side lashing rings for loose goods plus optional twist locks for ISO container realize multi-scenario transportation.
Global Aftermarket Spare Parts Support
Worldwide available FUWA/BPW axle and ABS spare parts reduce local maintenance cost and downtime in overseas emerging markets.
Full Customization & Complete Export Service
Custom deck length, plate thickness and body color, full set of customs clearance & container shipping for bulk global export.
