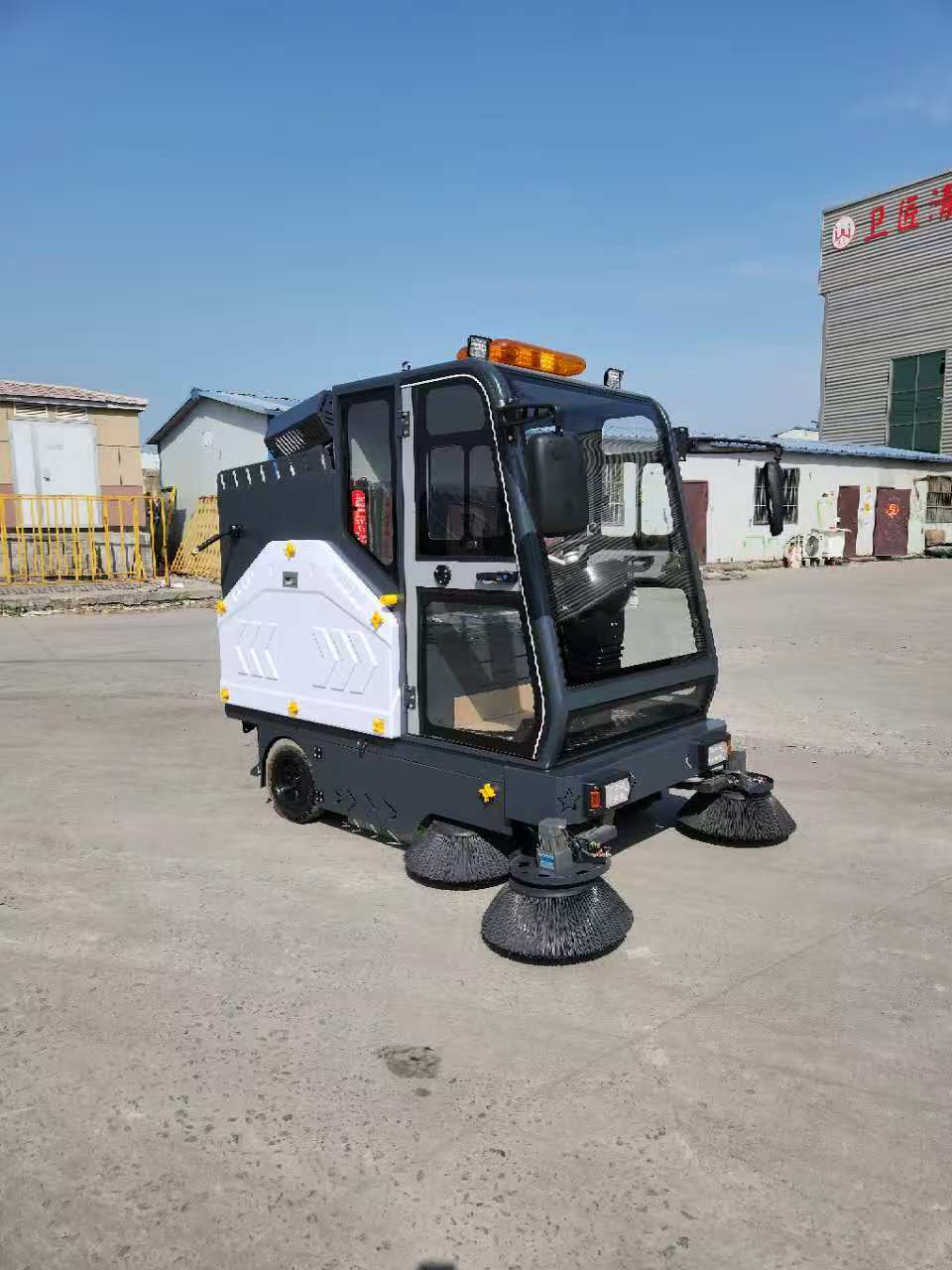

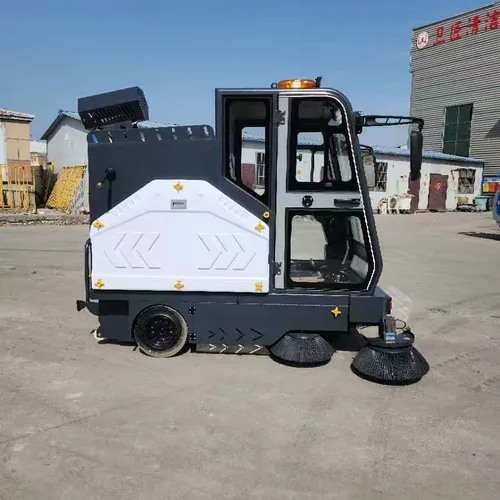

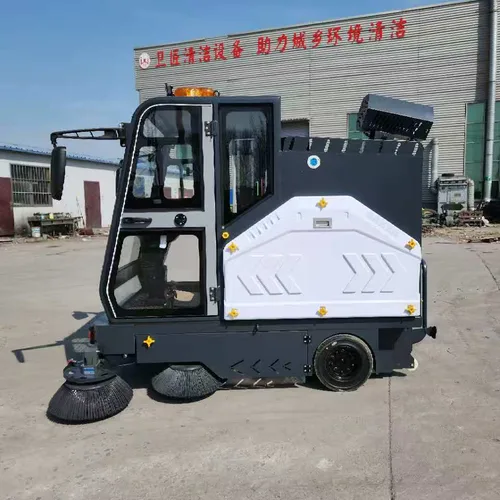

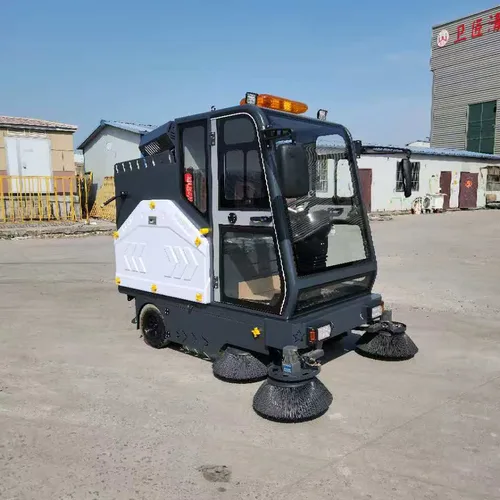

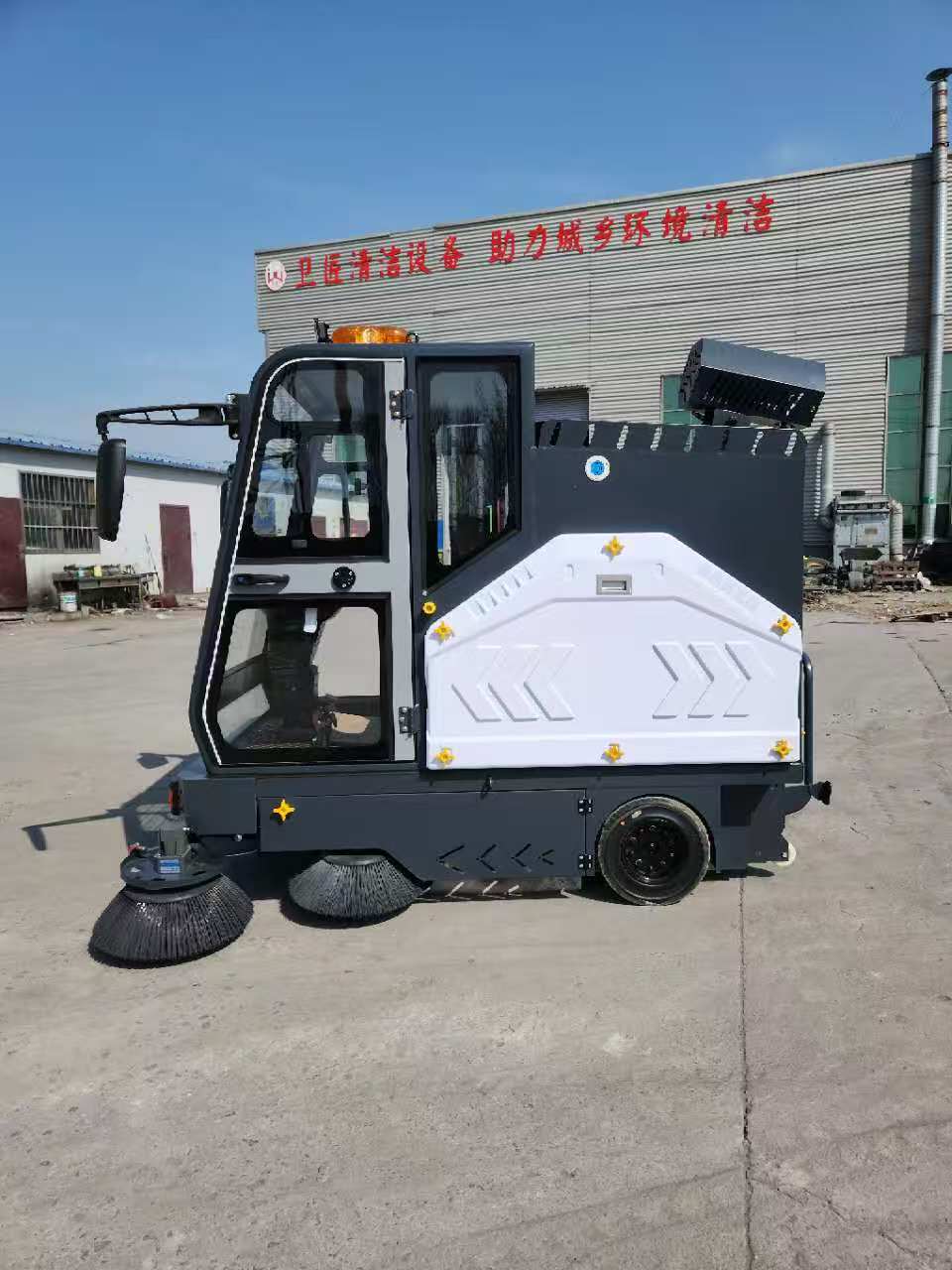

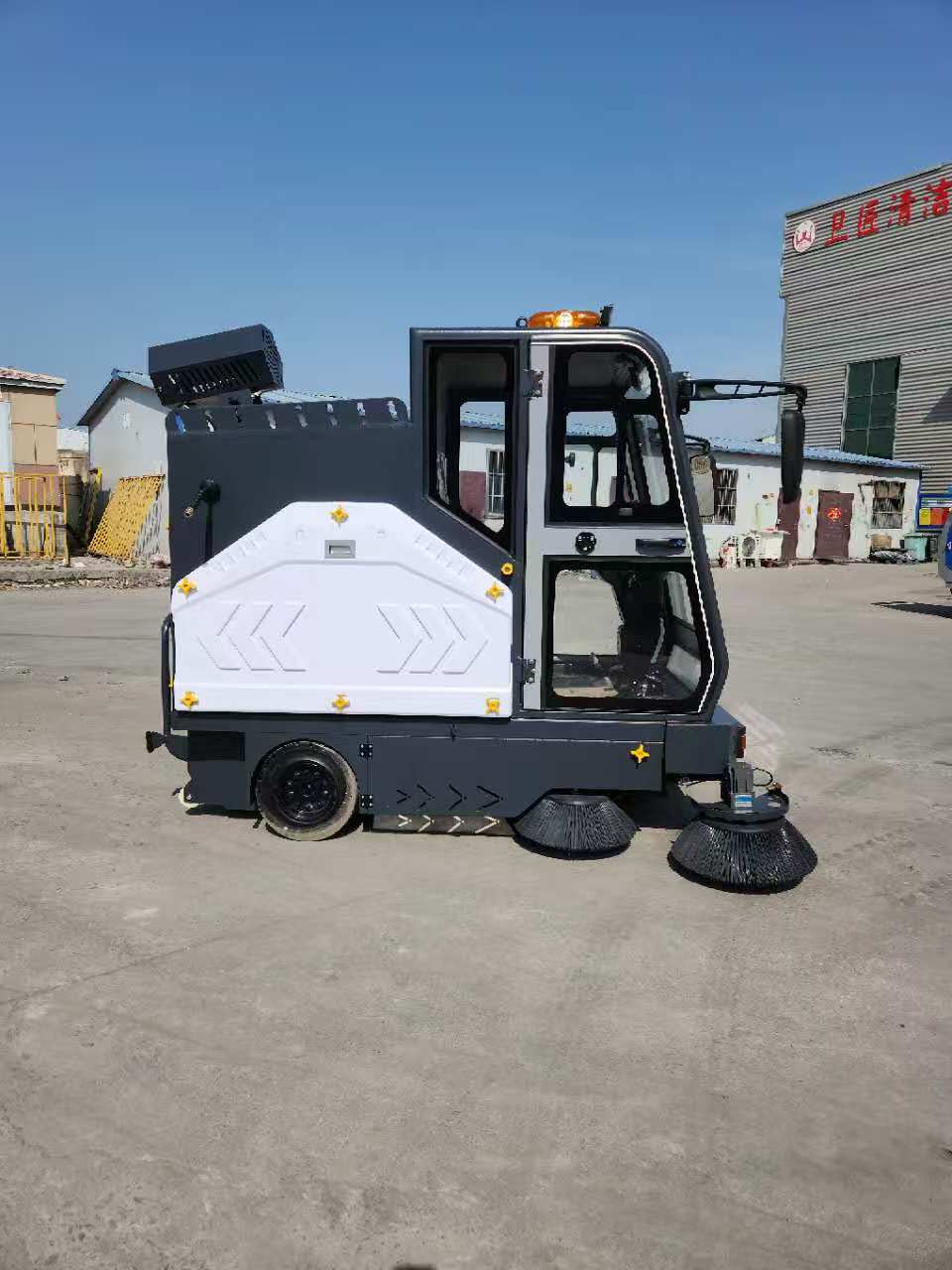

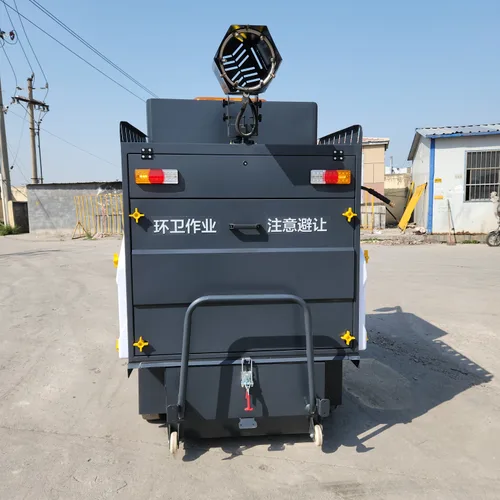

Phantom S Enclosed Electric Road Sweeper for Industrial Use

Name: Phantom S Enclosed Electric Road Sweeper for Industrial Use
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

The Phantom S enclosed electric sweeper is a ride-on cleaning equipment designed for industrial factories, residential properties and municipal roads. Powered by a 48V 150AH lithium battery, it delivers 4-6 hours of continuous operation with a 2.0m cleaning width and maximum efficiency up to 20000㎡/h. Equipped with 1 main brush + 4 side brushes, a 200L water tank and garbage bin, it supports high-pressure spray dust suppression to control dust while sweeping. An ideal alternative to manual cleaning, it improves efficiency and supports cross-border supply with customization available.

$4021.00

Send Message Contact Supplier

Weijiang (Shandong) Cleaning Equipment Co., Ltd.

Main Products: Sanitation Vehicles

View Supplier

Year Established Established in 2023

Main Products Sanitation Vehicles

Employees Less than 50 People

Factory Area 1,000-5,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Middle East & North Africa / Latin America

Details

Specifications

Enclosed Cab Design for Safety & Comfort
The enclosed cab with high-strength tempered glass, paired with steering wheel control and hydraulic dual-disc brakes, ensures easy operation and responsive braking. It adapts to complex environments with low temperatures, dust and noise, providing a safe and comfortable workplace for operators.
High-efficiency Cleaning System with Strong Performance
With a 2.0m cleaning width, 1100W main brush and 4 side brushes, combined with dual 600W fans and a dust vibration system, it quickly cleans dust, gravel, leaves and debris, achieving an efficiency up to 20000㎡/h and significantly reducing labor costs.
Integrated Dust Suppression for Eco-friendly Cleaning
Equipped with a 200L water tank and 1500W high-pressure pump, it sprays water while sweeping to control dust pollution. The 200L garbage bin reduces emptying frequency, improving operation continuity.
Long Battery Life & Stable Performance for Versatile Use
Powered by a 48V 150AH lithium battery, it delivers 4-6 hours of continuous operation per charge. With an 8-12km/h speed and ≤25% climbing capacity, it handles factory ramps and residential roads easily. Solid tires are wear-resistant for complex surfaces.
Low Maintenance & Customizable Options
National standard waterproof wiring harness and one-click start system ensure simple operation and easy maintenance. Optional rearview camera and other configurations are available, with customization supported for scenarios including industrial factories, residential properties, municipal roads and parks.

Shell material

220℃ high-temperature spray painting, high-strength tempered glass

Scan count

Main brush ×1 + side brush ×4

Number of fans

Split-type 600W fan ×2

Dust particle count

Dust 150W ×2

Steering direction

Unique Steering Structure with Steering Wheel Design

Drive mode

Electric rear-wheel differential drive (DC motor)

Brake mode

Hydraulic dual-disc brake

Power supply

Total voltage: 48V; 150AH lithium cell

Electrical control circuit

National Standard Integrated Waterproof Wire Harness

Work control method

One-click startup, automatic control system

Charging generator

Includes smart charger

Tyre

Solid tire

Cleaning width

2.0M

Work efficiency

≤20000 ㎡/h

Rearview camera

Rearview mirror type

Continuous working time

4-6h

Climbing capacity

≤25%

Maximum work rate

8-12km/h

Turning radius

3.4 米

Water tank capacity

200L

Garbage bin capacity

≤200L

Brush diameter

Front: 600mm ×2, Rear: 550mm ×2

Main brush specifications

800mm*350mm

Main brush motor power

1100w

Brushless motor power

150W×4

Driving power

2000w

Working Power

Main brush: 1100W; fan: 600W×2; dust vibration system: 200W×2; side brushes: 150W×4; water pump: 50W

High-pressure pump power

1500w

Machine weight

780Kg

Filter element

2*8²

Outline dimension

2600×2000×2200mm

Description

Enclosed Cab Design for Safety & Comfort
The enclosed cab with high-strength tempered glass, paired with steering wheel control and hydraulic dual-disc brakes, ensures easy operation and responsive braking. It adapts to complex environments with low temperatures, dust and noise, providing a safe and comfortable workplace for operators.
High-efficiency Cleaning System with Strong Performance
With a 2.0m cleaning width, 1100W main brush and 4 side brushes, combined with dual 600W fans and a dust vibration system, it quickly cleans dust, gravel, leaves and debris, achieving an efficiency up to 20000㎡/h and significantly reducing labor costs.
Integrated Dust Suppression for Eco-friendly Cleaning
Equipped with a 200L water tank and 1500W high-pressure pump, it sprays water while sweeping to control dust pollution. The 200L garbage bin reduces emptying frequency, improving operation continuity.
Long Battery Life & Stable Performance for Versatile Use
Powered by a 48V 150AH lithium battery, it delivers 4-6 hours of continuous operation per charge. With an 8-12km/h speed and ≤25% climbing capacity, it handles factory ramps and residential roads easily. Solid tires are wear-resistant for complex surfaces.
Low Maintenance & Customizable Options
National standard waterproof wiring harness and one-click start system ensure simple operation and easy maintenance. Optional rearview camera and other configurations are available, with customization supported for scenarios including industrial factories, residential properties, municipal roads and parks.
