Product Summary
This OEM Supported Excavator (Model: XE220-OEM) is manufactured under strict OEM quality protocols, offering the same production line precision as tier-1 brands without the premium markup. Operating at 22,000 kg weight and powered by a 125 kW Cummins QSB6.7 engine, it achieves an industry-leading hydraulic flow of 2x210 L/min. Ideal for contractors seeking reliable OEM excavator for sale options with immediate spares integration into existing fleets.
Why Choose This Machinery
Unlike unbranded or fully aftermarket machines, this OEM Supported Excavator retains genuine parts compatibility with major hydraulic and undercarriage suppliers. Key competitive edges include: (1) Fuel efficiency: 15% lower consumption vs. regional clones due to precise negative-flow control hydraulics. (2) Undercarriage robustness: Reinforced track frame with 46-section triple-grouser pads designed for 5,000+ hours in rocky terrain. (3) ROI: At a USD 68,500 FOB price, payback period typically under 18 months in rental or mining support roles. (4) Global warranty: 1-year or 2,000-hour global parts warranty with regional warehouse support in Dubai, Lima, and Jakarta.
Powertrain & Structural Overview

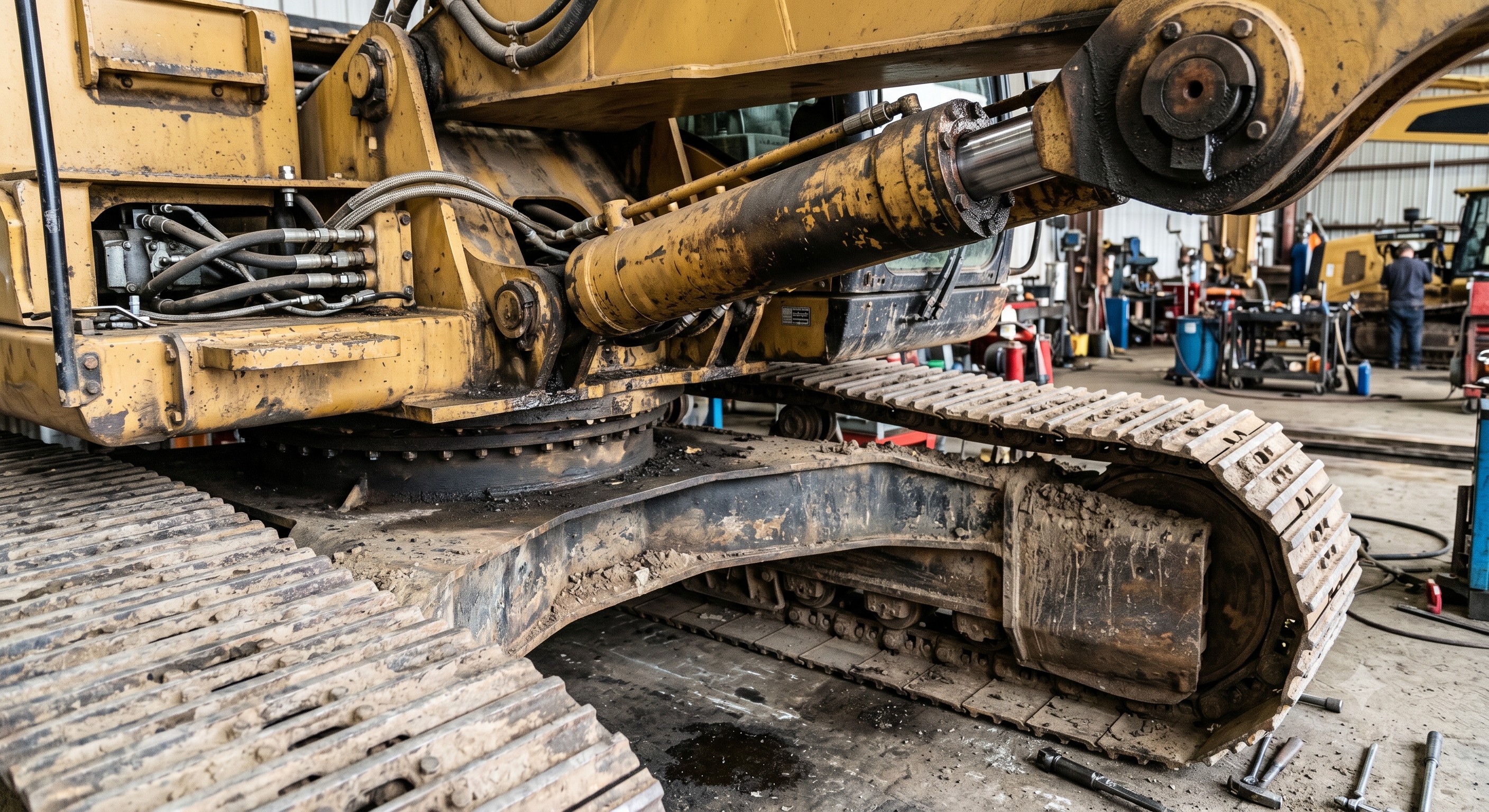

The powertrain centers on a Cummins QSB6.7-C125 diesel engine, Tier 2 / Tier 3 emission configurable per export region. It couples with a Kawasaki K3V112DT main hydraulic pump, delivering maximum pressure of 34.3 MPa to the boom, arm, and bucket cylinders. The heavy-duty X-frame chassis uses integrated box-section construction with abrasion-resistant steel plates (HB400) on all lower wear surfaces. The cab meets ROPS/FOPS standards, equipped with a 7-inch LCD monitor showing real-time fuel burn, filter life, and diagnostic codes. All OEM Excavator for Sale variants come standard with a grease-free swing bearing and auto-lubrication ready ports.
Technical Specifications
Below is the primary data for the OEM Supported Excavator 22-ton class. Values apply to standard heavy-duty configuration with 600mm triple-grouper shoes.
Heavy-Duty Application Scenarios
Earthmoving
In bulk earthmoving for highway or industrial park projects, the OEM excavator achieves 220-250 cycles per hour using a 1.0 m³ bucket. The auto-idle system and two-speed travel motor (5.2 km/h / 3.2 km/h) reduce cycle times on long cut-to-fill distances.
Quarry & Aggregates
Equipped with a reinforced heavy-duty arm (HD option) and 1.1 m³ rock bucket, this OEM Supported Excavator handles shot rock up to 600 mm. The boom foot guards and cylinder rod protectors are standard for high-impact environments.
Municipal & Utility
With optional offset boom and quick-coupler hydraulic lines, the machine is ready for pipe laying, trenching, and urban drainage work. Its reduced tail swing radius (2,100 mm) increases safety on congested city job sites.
Equipment Q&A
Q1: What is the current shipping lead time for this OEM Excavator?
A1: For stock units, shipping lead time is 7–10 days from receipt of deposit. FOB main ports (Shanghai, Tianjin, or Qingdao). RoRo and 40' flat rack container shipping both available. Bulk orders (6+ units) reduce lead time to 15 days via chartered space.
Q2: Does the 1-year global warranty include wear parts like bucket teeth and track pads?
A2: The warranty covers structural components (boom, arm, chassis, swing bearing) and major powertrain parts (engine block, pump head, final drive). Wear parts (teeth, edges, filters, rubber pads) are excluded but available as a separate consumables package at 30% below local distributor pricing.
Q3: Can emissions be modified for different countries (e.g., Nigeria, Peru, Indonesia)?
A3: Yes. The base engine is configurable to Tier 2, Tier 3, or Stage IIIA emission levels without electronic derate. We provide a compliant COO and engine certificate for customs clearance in most non-EU, non-NA regions. For EU Stage V, a different model is recommended.
Q4: What operational training or documentation is included?
A4: Every machine ships with a full digital service manual, parts catalog, and operator handbook in English, Spanish, French, or Arabic (specify). We also provide 5 free remote video training sessions via WhatsApp or WeChat for your lead mechanics.
Q5: How do you ensure genuine OEM parts availability after 3-4 years?
A5: This OEM Supported Excavator shares 80% of hydraulic and undercarriage parts with Hitachi Zaxis and Sumitomo common platforms. We maintain a 10-year supply commitment, with a regional parts depot. Part orders via our B2B portal ship within 48 hours.
