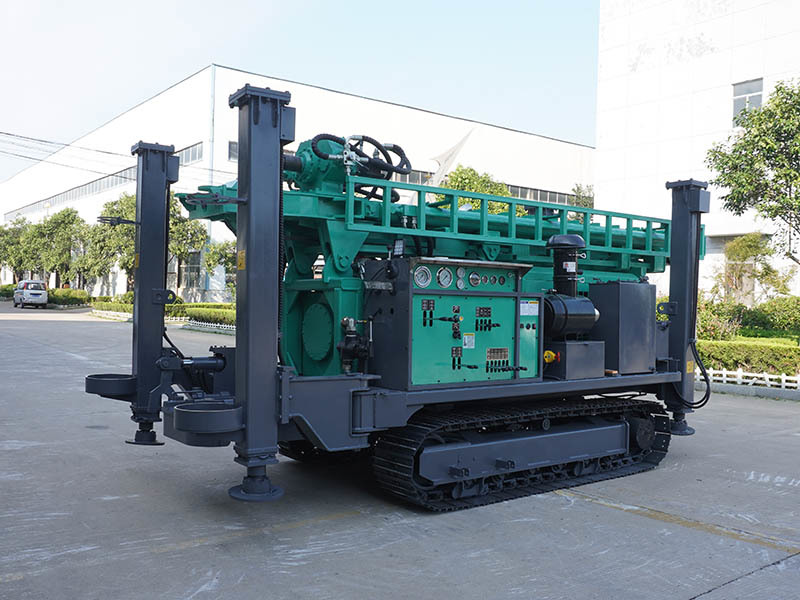

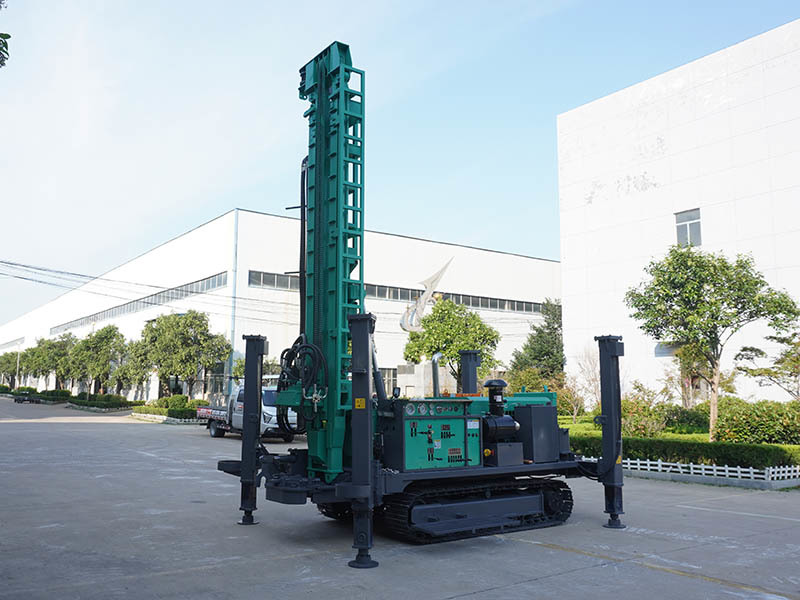

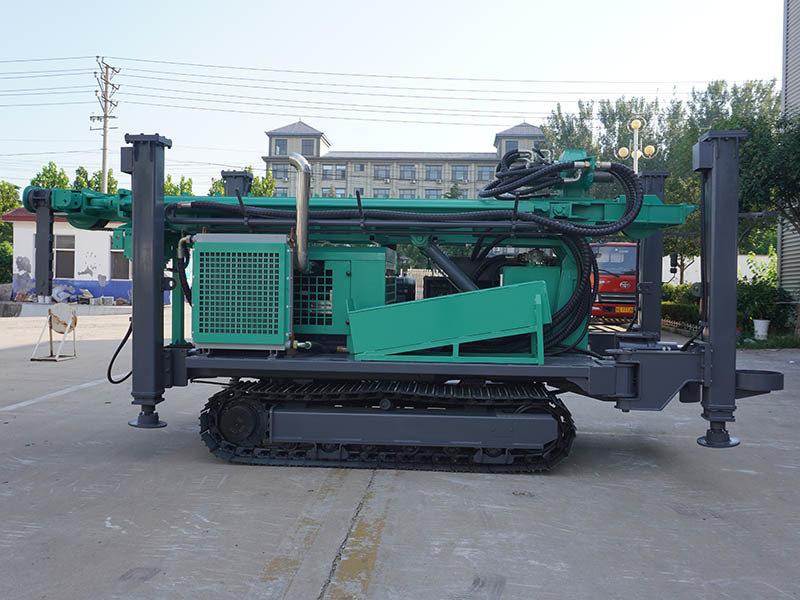

Light High-Efficiency Water Well Drilling Rig Mountain Rock Formation Drilling Equipment for Agricultural Irrigation & Civil Wells

Name: Light High-Efficiency Water Well Drilling Rig Mountain Rock Formation Drilling Equipment for Agricultural Irrigation & Civil Wells
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Water well drilling rig is a light, high-efficiency and multi-functional drilling equipment, mainly used for drilling domestic water wells, agricultural irrigation wells and various engineering water wells, especially suitable for water intake projects in mountainous areas and rock formations. Adopting advanced hydraulic system with high-torque hydraulic motor and large-bore hydraulic cylinder, it can realize rotary drilling, percussion rotary drilling and casing follow drilling, adapting to soft soil, rock, cobble and other formations. With compact structure, easy operation and flexible construction, it is an ideal drilling machine for rural water supply, farmland irrigation and field water intake projects.

$14620.00 - 43860.00

Send Message Contact Supplier

Shandong Tengda Construction Machinery Equipment Co., Ltd.

View Supplier

Registration Date April 2022

Number of Employees 20

Factory Area 5,000 m²

Annual Sales 5 Million RMB

Main Products Photovoltaic Drill, Full Hydraulic Core Drill, Core-Taking Drill, Pneumatic Water Well Drill, Truck-Mounted Pneumatic Drill, Air-Lift Reverse Circulation Drill

Target Markets Africa, Middle East, Southeast Asia, Europe & America

Details

Specifications

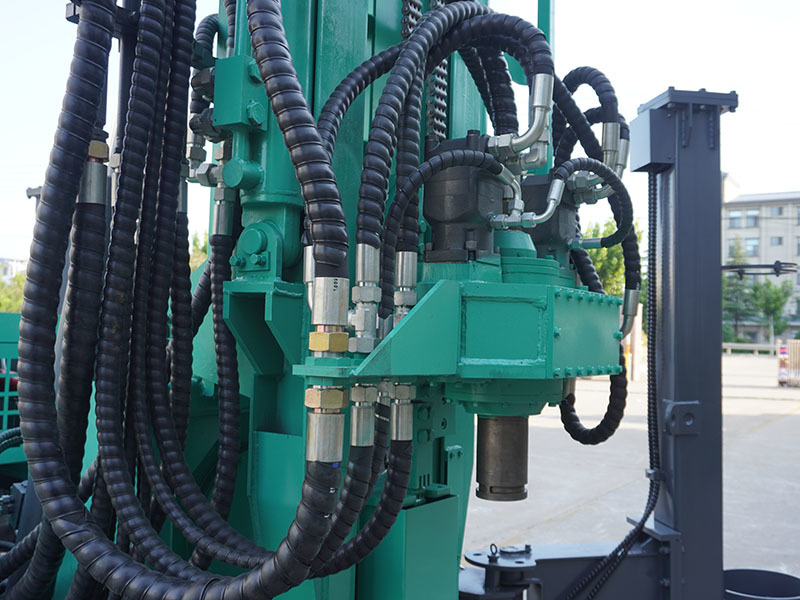

This water well drilling rig adopts new hydraulic drive technology with strong power and stable operation, which can flexibly switch drilling processes according to different formations. Equipped with high-torque hydraulic motor for rotary drilling, it can quickly form holes in conventional formations with alloy bits; in hard rock formations, it uses button bits for percussion rotary drilling with high rock-breaking efficiency; matched with air compressor and DTH hammer, it can adopt casing follow drilling in unstable formations such as cobble and quicksand to effectively prevent hole collapse.

The rig is equipped with an integrated control console with reasonable layout and easy operation; adopts single-handle control dual-pump confluence rotation system for smooth and comfortable control. Large-amplitude telescopic drill mast with adjustable clearance meets the needs of long-stroke casing construction, with shorter transportation size and more convenient transfer. Generator, centrifugal pump, foam pump and other auxiliary devices can be selected to fully meet drilling operations under different working conditions with high cost performance.

Product Name

Water Well Drilling Rig

Type

Light, High-Efficiency & Multi-Functional

Drive

Full Hydraulic Drive

Control

Integrated Console, Single-Handle Dual-Pump

Mast

Large-Amplitude Telescopic, Clearance Adjustable

Drilling

Rotary / Percussive Rotary / Casing Follow
