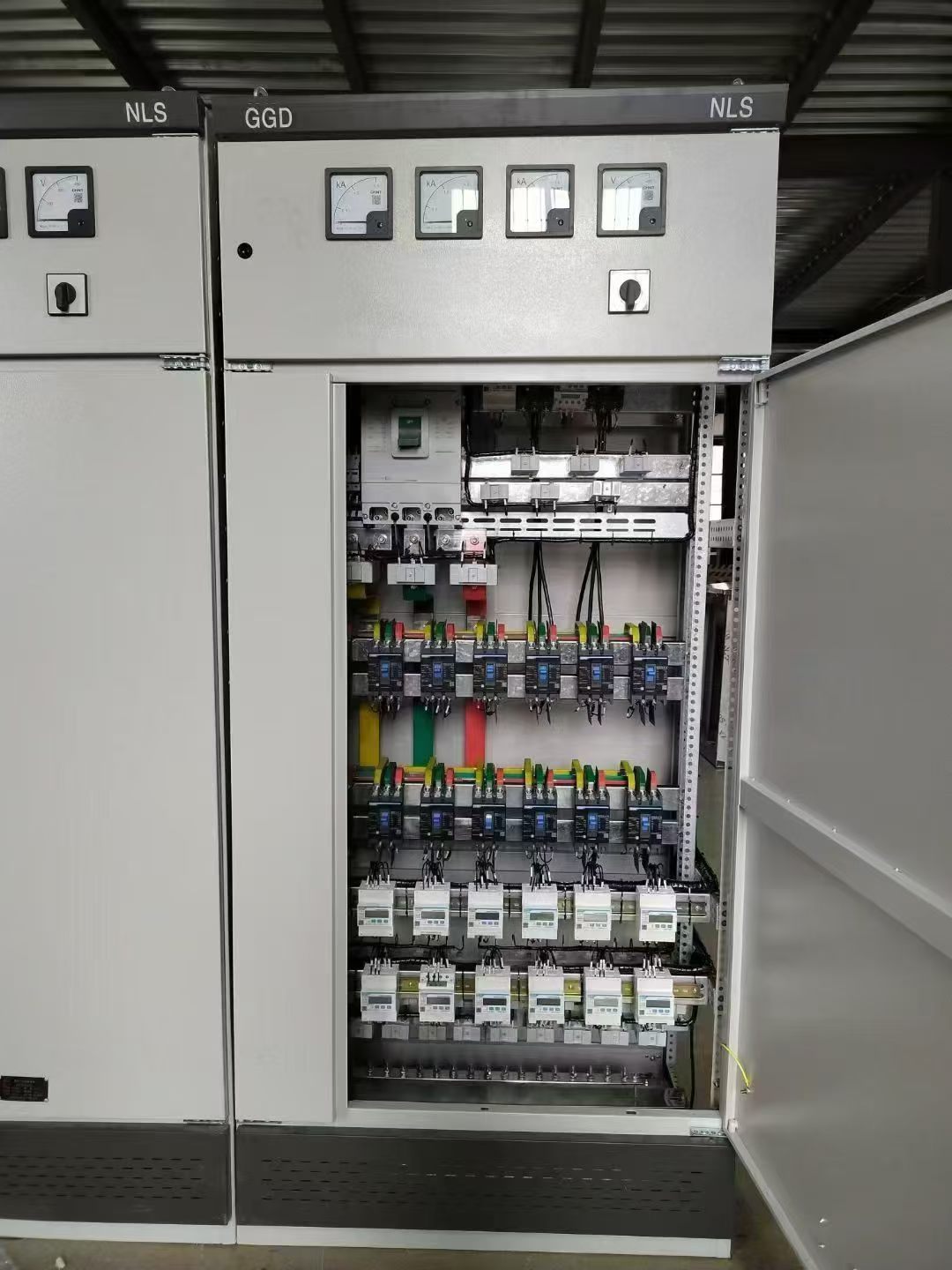

JN/XL-21 Enclosed Power Distribution Cabinet Customized, 21 Modified LV Complete Power Distribution Box

The 21G (JN/XL-21) enclosed power distribution box is suitable for power systems below 500V in industrial and mining enterprises and civil buildings, realizing power distribution, lighting distribution and process control functions. It is available in two structures: welded type and assembled type. We offer on-demand customization and drawings-based customization services, allowing adjustment of box size, circuit configuration and appearance technology according to on-site needs, widely used in various industrial and civil power distribution scenarios.
$44.00 - 2202.00
Send Message Contact Supplier
Jining Tongyang Electrical Engineering Co., Ltd.

Jining Tongyang Electrical Engineering Co., Ltd.

View Supplier
Registration Date January 18, 2008
Number of Employees 15
Factory Are 1,100 m²
Annual Sales Over 10 Million RMB
Main Product Distribution Boxes, High & Low Voltage Switch Cabinets
Target Markets Enterprises and Real Estate Sectors
Details
Specifications

1. Product Overview

The 21G enclosed power distribution box (JN/XL-21 series) is a complete set of equipment specially designed for low-voltage power distribution systems. It is suitable for industrial and mining enterprises and civil buildings with AC 50Hz and rated voltage 500V and below, used for power distribution, lighting distribution and process control. The equipment is divided into two structural forms: welded type and assembled type, which can be flexibly configured according to user needs to adapt to the power distribution and control requirements of different scenarios.

2. Structure and Features

  1. Welded Structure (JN/XL-21): Made of high-quality plates through CNC shearing, punching, bending and other processes. The surface adopts electrostatic spraying technology, and the color can be customized according to customer requirements, with stable structure and strong protection.
  2. Assembled Structure (JN/XL-21): The frame is made of C-shaped steel with modular holes punched on the side, which can be quickly assembled according to different needs. It has the characteristics of compact structure, convenient maintenance and flexible use, adapting to later expansion and transformation needs.
  3. Wide Scenario Adaptability: It can meet various power distribution needs such as industrial power loads, civil lighting, and process control, adapting to different working conditions such as workshops, buildings, and commercial places.
  4. Customization Service: Supports customized box size, protection level, circuit configuration and appearance technology according to needs, and can also carry out exclusive design according to customer-provided drawings to ensure the equipment perfectly matches the project site.

3. Application Scenarios

  • Industrial and mining enterprises: Power distribution control for workshop power equipment, production lines, fans and water pumps
  • Civil buildings: Power distribution for buildings, public lighting, and power supply control for fire-fighting equipment
  • Commercial places: Power and lighting distribution systems for shopping malls and office buildings
  • Industrial projects: Low-voltage power distribution for equipment process control and automated production lines
Applicable frequency
50 Hz
Rated working voltage
≤500 V
Applicable scenarios
Power distribution, lighting distribution, process control
Structural forms
Welded type / Assembled type (C-shaped steel frame + modular holes)
Surface technology
Electrostatic spraying (color customizable)
Protection level
Customizable on demand (standard IP30/IP40)
Box material
High-quality cold-rolled steel plate (stainless steel optional)
  • JN/XL-21 Enclosed Power Distribution Cabinet Customized, 21 Modified LV Complete Power Distribution Box

Description

1. Product Overview

The 21G enclosed power distribution box (JN/XL-21 series) is a complete set of equipment specially designed for low-voltage power distribution systems. It is suitable for industrial and mining enterprises and civil buildings with AC 50Hz and rated voltage 500V and below, used for power distribution, lighting distribution and process control. The equipment is divided into two structural forms: welded type and assembled type, which can be flexibly configured according to user needs to adapt to the power distribution and control requirements of different scenarios.

2. Structure and Features

  1. Welded Structure (JN/XL-21): Made of high-quality plates through CNC shearing, punching, bending and other processes. The surface adopts electrostatic spraying technology, and the color can be customized according to customer requirements, with stable structure and strong protection.
  2. Assembled Structure (JN/XL-21): The frame is made of C-shaped steel with modular holes punched on the side, which can be quickly assembled according to different needs. It has the characteristics of compact structure, convenient maintenance and flexible use, adapting to later expansion and transformation needs.
  3. Wide Scenario Adaptability: It can meet various power distribution needs such as industrial power loads, civil lighting, and process control, adapting to different working conditions such as workshops, buildings, and commercial places.
  4. Customization Service: Supports customized box size, protection level, circuit configuration and appearance technology according to needs, and can also carry out exclusive design according to customer-provided drawings to ensure the equipment perfectly matches the project site.

3. Application Scenarios

  • Industrial and mining enterprises: Power distribution control for workshop power equipment, production lines, fans and water pumps
  • Civil buildings: Power distribution for buildings, public lighting, and power supply control for fire-fighting equipment
  • Commercial places: Power and lighting distribution systems for shopping malls and office buildings
  • Industrial projects: Low-voltage power distribution for equipment process control and automated production lines
