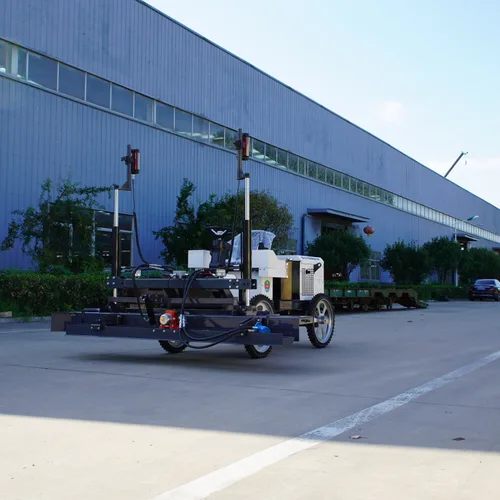

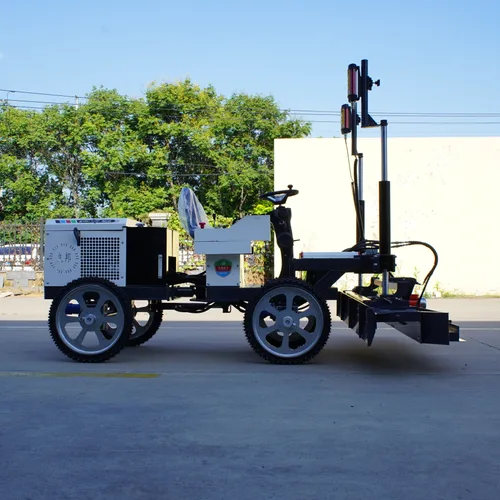

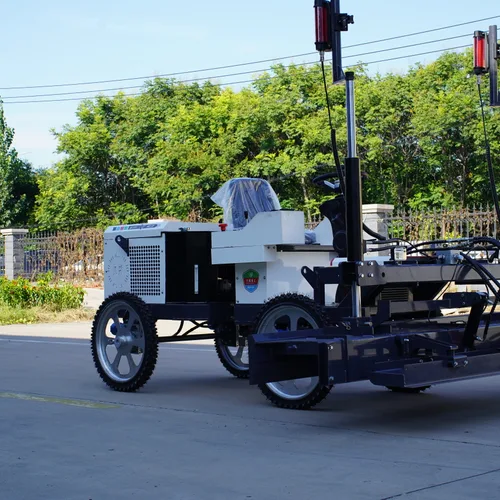

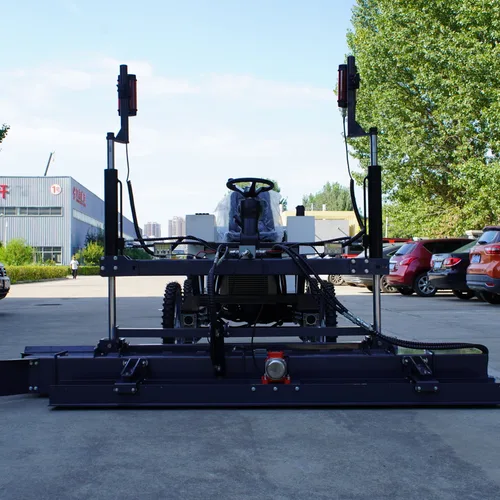

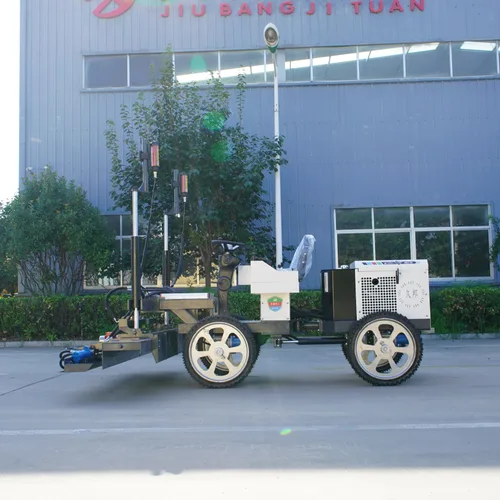

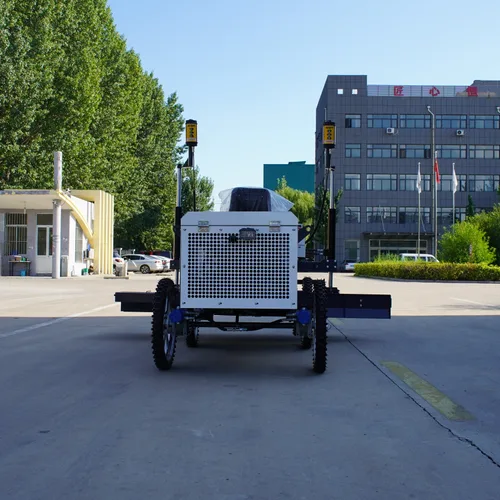

JB31-25 Laser Concrete Screed, Honda/Loncin Power, Hydraulic Auger Paving

The JB31-25 Laser Concrete Screed is powered by a 22KW Honda or Loncin gasoline engine with a Danfoss control system, and optional laser systems from Leica, Topcon or Tuowei for automatic leveling of planes, slopes or dual slopes (3D). With integrated hydraulic auger paving and vibrating screeding, the 2525mm wide vibrating plate completes concrete paving, vibration, slurry lifting and leveling in one pass. Widely used in factories, floors, municipal roads and other concrete projects, it is an ideal equipment to improve construction efficiency and floor flatness.
$18191.00
Jining Jiubang Construction Machinery Equipment Co., Ltd.

Jining Jiubang Construction Machinery Equipment Co., Ltd.

View Supplier
Registration Date March 2, 2020
Number of Employees 700+
Factory Area About 170,000 m²
Annual Sales 300 Million RMB
Main Products Aerial Work Equipment (Core Products): Truck-mounted aerial work platforms (e.g., 56m models), new energy self-propelled aerial work platforms, etc. Special Engineering Vehicles: Telescopic boom fork loaders (multi-functional forklifts), skid steer loaders, electric forklifts, etc. Road & Forestry Machinery: Laser leveling machines, grapple saws and felling machines for forest operations, etc. Other Heavy Equipment: Cranes and other construction machinery.
Target Markets Russia, Kazakhstan, Uzbekistan, Kyrgyzstan, Saudi Arabia, Azerbaijan, Vietnam, Malaysia, etc.
Details
Specifications
High-precision Laser Leveling: Equipped with imported or domestic brand laser systems and Danfoss control system for automatic leveling, supporting plane, slope and dual slope 3D construction with minimal flatness errors, far exceeding manual construction standards.
Efficient Integrated Operation: Integrated hydraulic auger paving and vibrating screeding completes concrete paving, vibration, slurry lifting and leveling in one pass, with efficiency 3-5 times higher than manual work, greatly shortening construction periods.
Stable Power Configuration: Optional 22KW Honda or Loncin gasoline engines provide sufficient power and stable operation for complex site conditions, with a 37L large-capacity fuel tank reducing refueling frequency.
Intelligent Travel System: One-touch cruise control, adjustable travel speed 0-55m/min and precise working speed 4-20m/min for easy operation, reducing labor intensity.
Durable Site Design: Solid anti-slip and anti-puncture tires adapt to complex site roads, with a robust fixed suspension structure, strong vibration force and stable frequency, suitable for various concrete projects such as factories, floors and municipal roads.
Model
JB31-25
Engine Model
Honda 690 / Loncin (optional)
Engine Power
22KW/30HP
Oil/Fuel Capacity
Oil 1.8L / Fuel 37L
Laser System
Leica/Tuowei/Topcon (optional), Danfoss Control System
Control Effect
Plane/Slope/Dual Slope (3D)
Paving Method
Hydraulic Auger Paving
Vibrating Screed Width
2525mm/2955mm
Leveling Thickness
50-250mm
Vibration Force/Speed
2000N, 3600rpm
Travel Drive
Low-speed High-torque Reducer + Hydraulic Motor
Travel/Working Speed
0-55m/min/ 4-20m/min (adjustable)
Tires
Solid Anti-slip & Anti-puncture Tires
Dimensions/Weight
3250×2850×1320mm, 900kg
