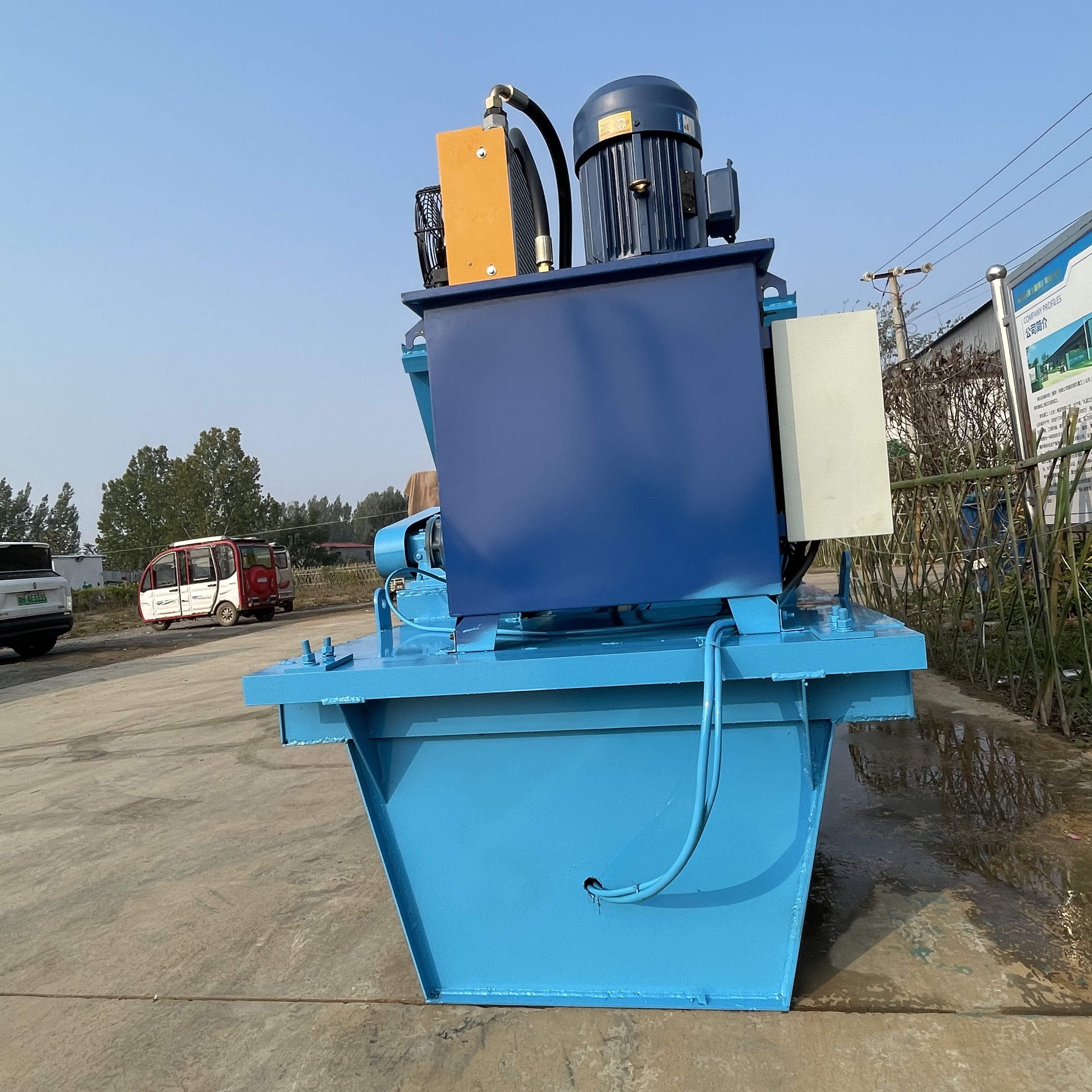

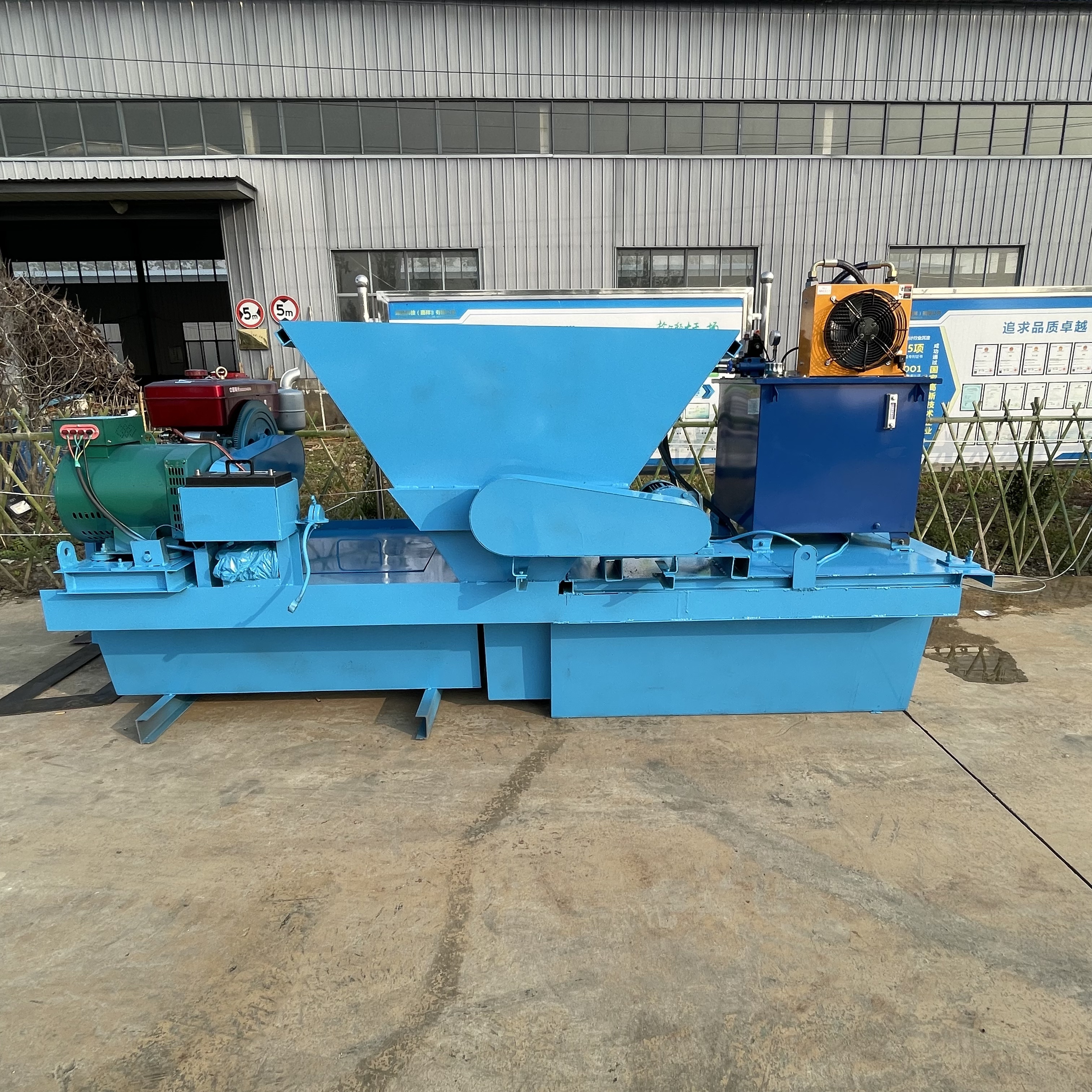

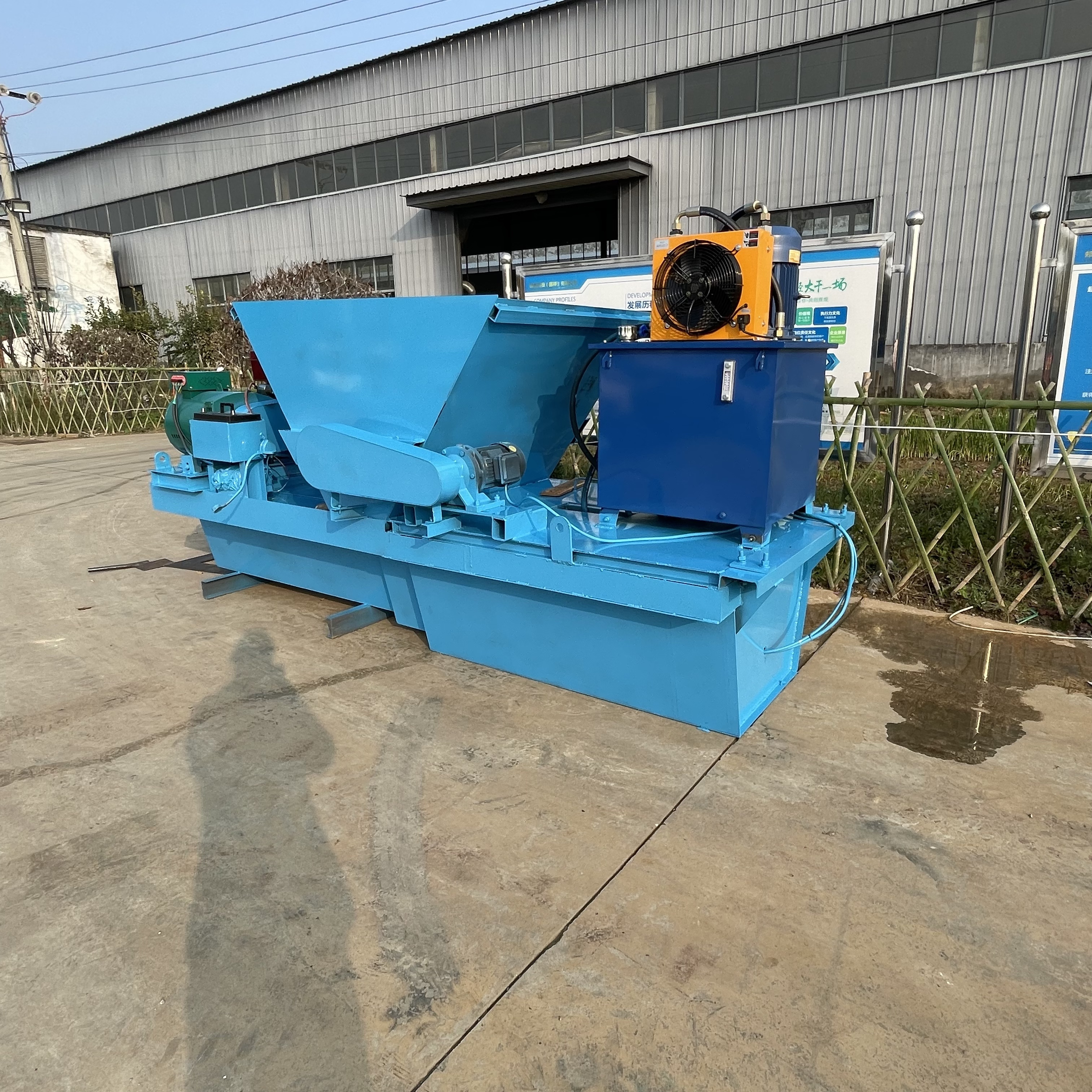

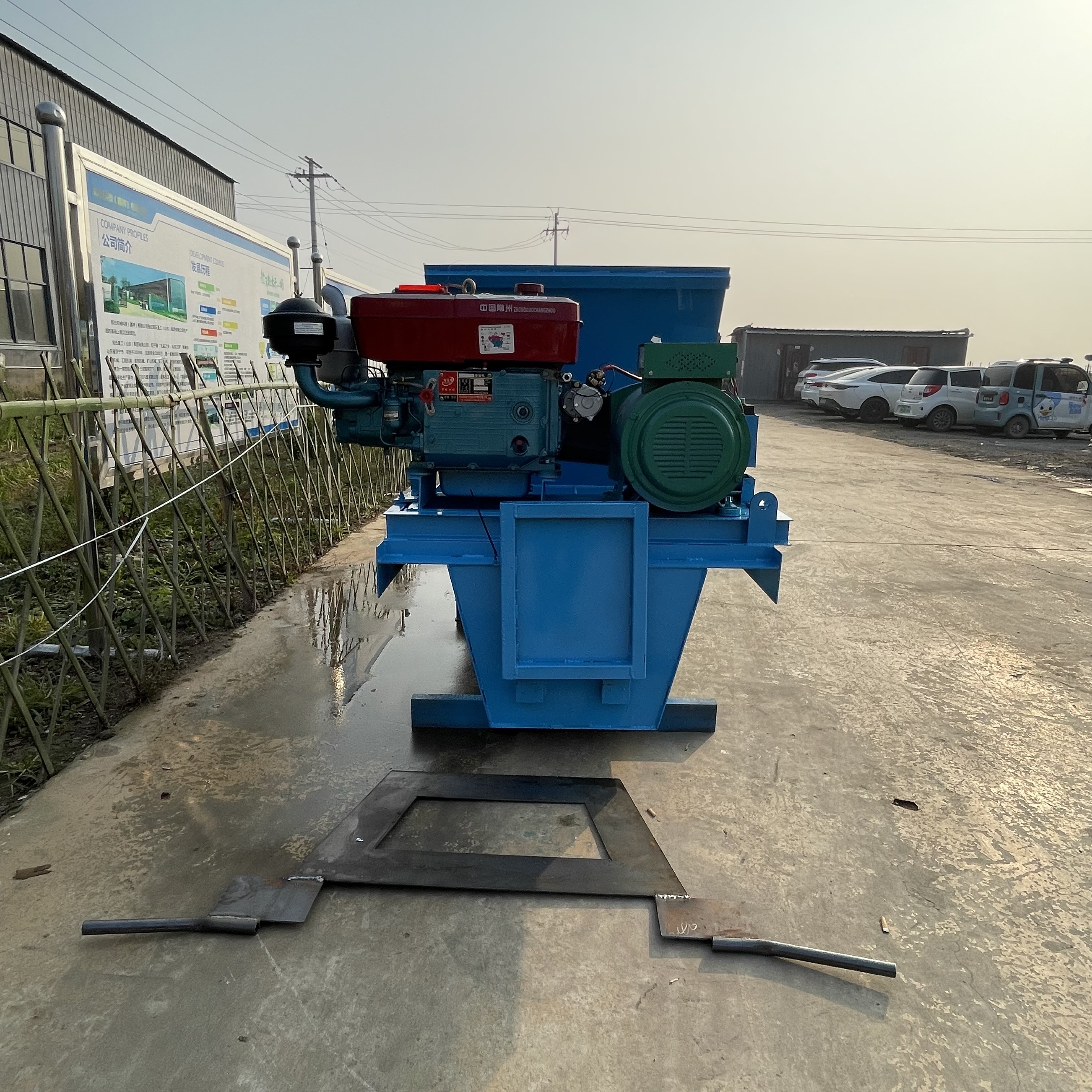

Hydraulic Self-propelled Canal Forming Machine (Trapezoidal Irrigation Canal)

Name: Hydraulic Self-propelled Canal Forming Machine (Trapezoidal Irrigation Canal)
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Hydraulic self-propelled canal forming machine is special cast-in-place slipform equipment for farmland water conservancy and field drainage. With hydraulic self-propelled design, it completes one-time extrusion & vibration forming of trapezoidal irrigation drainage canal on site. Equipped with bucket feeding and joint cutting knife. No steel bar, geotextile, insulation board or other special processes needed. Simple and efficient construction, dense and anti-seepage canal body. Special for high-standard farmland canal construction. Complete set includes 1 hydraulic self-propelled main machine, bucket and cutting knife.

$4800.00

Send Message Contact Supplier

Shandong Yahui Mechanical Equipment Manufacturing Co., Ltd.

View Supplier

Registration Date August 2, 2019

Number of Employees 50-100

Factory Area 6,000 m²

Annual Sales 30 Million RMB

Main Products Canal Forming Machine, Curb Stone Forming Machine, Paver, Crawler Carrier, Crawler Lift Platform, Crawler Chassis, Underwater Dredging Robot, Crawler Fire Fighting Robot, Lawn Mower, Skid Steer Loader, Crawler Transporter

Target Markets Belt & Road Countries, Europe, America & Global Markets

Details

Specifications

This machine is integrated hydraulic self-propelled canal slipform machine. Hydraulic driving walking, hydraulic mould lifting & vibrating, integrated operation of automatic feeding, forming and joint cutting. Matched with special trapezoidal canal mould, can form standard trapezoidal canal section as drawing at one time. No complex special processes such as steel bar, geotextile and insulation board needed during construction. Pure concrete cast-in-place forming, convenient construction, anti-seepage and durable. Widely used in high-standard farmland, agricultural irrigation and field drainage canal projects.

Overall Size

2300×2200×1500mm

Bucket Size

2600×700×700mm

Machine Weight

2.2T

Machine Name

Hydraulic Self-propelled Canal Forming Machine

Power Configuration

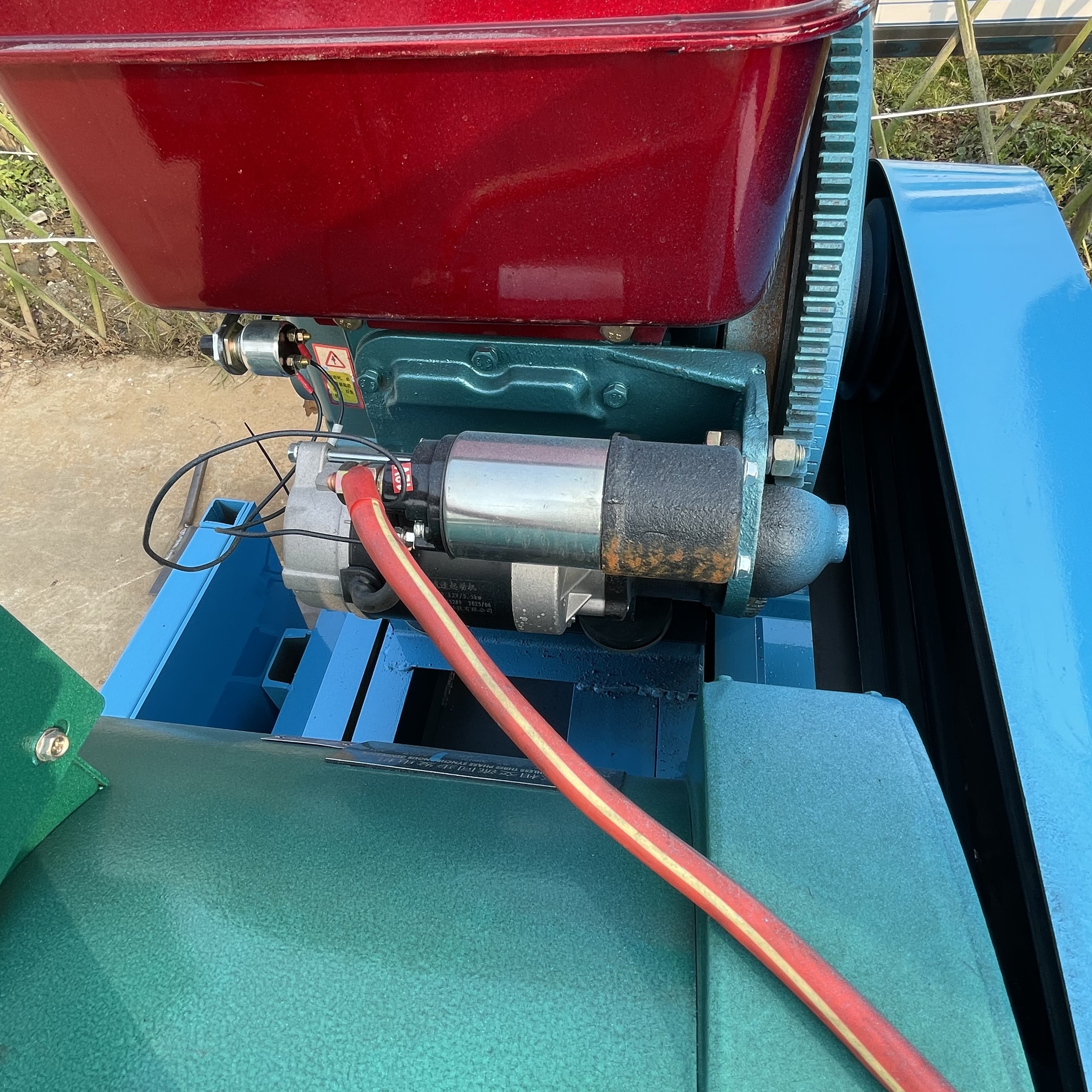

24kw Diesel Generator Set + 3kw Winch

Standard Accessories

1 Set Hydraulic Self-propelled Host + 1 Set Trapezoidal Mould + 1 Set Bucket + 1 Set Electric Control Box + 1 Set Cutting Knife
