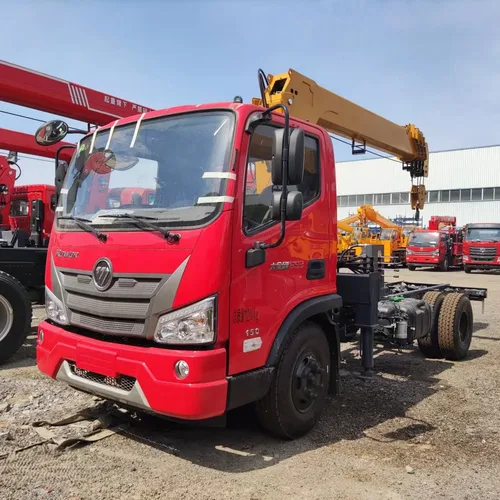

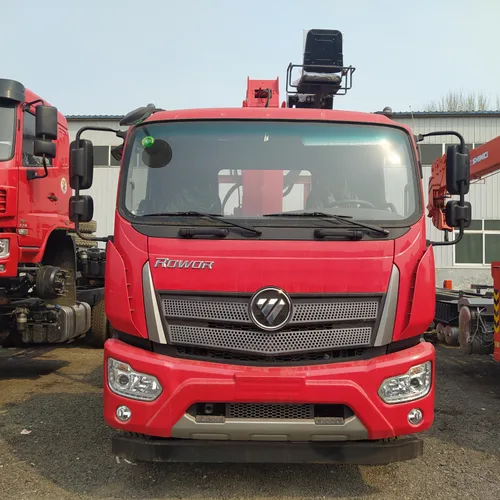

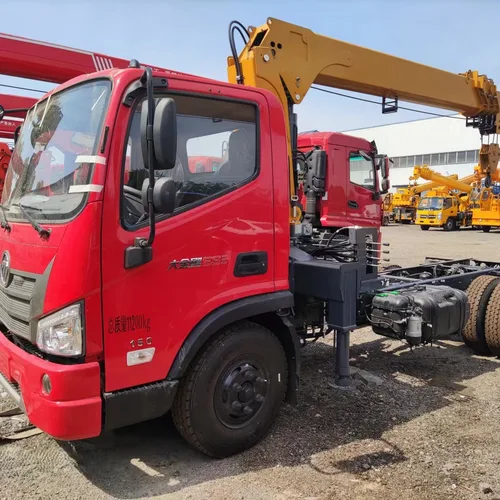

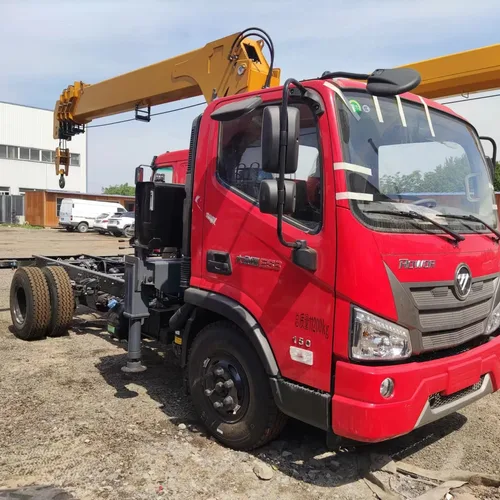

Foton SE3 4 Ton Truck Mounted Crane 4-section Boom 11.6m Lifting Height

Foton SE3 4-ton truck mounted crane is equipped with a National VI Weichai engine chassis and a 4-ton 4-section crane with a maximum lifting height of 11.6m. It integrates lifting and transportation functions for multi-purpose use. Compact and flexible, it is suitable for urban and rural short-distance lifting transportation, construction site material handling and equipment loading/unloading, ideal for small engineering transportation.
$18000.00 - 22000.00
Send Message Contact Supplier
Jining Xinguo Intelligent Manufacturing Co., Ltd.

Jining Xinguo Intelligent Manufacturing Co., Ltd.

View Supplier
Registration Date December 19, 2025
Number of Employees 50+
Factory Area 5,000+ m²
Annual Sales 60 Million+ RMB
Main Products Cranes, Truck Cranes, 3-in-1 Cranes, Custom-Built Cranes
Target Markets Domestic, Middle East, Southeast Asia, Africa
Details
Specifications
This Foton SE3 4-ton truck mounted crane is powered by a National VI Weichai WP3NQ160E61 engine, meeting emission standards, matched with a Fast small 8-speed gearbox for smooth operation and stable driving. The chassis adopts 215 local three-layer frame with strong load capacity, total mass 8280KG and cargo box length 3.3m, meeting short-distance transportation needs.
The 4-ton 4-section crane has a maximum lifting moment of 100KN·M, lifting height of 11.6m, outrigger span of 2-4.6m, 360° full rotation and 0-78° luffing angle, covering a wide working range. The crane adopts a single-pump hydraulic system with stable operation and lower control mode. The truck is equipped with electric windows, driving recorder, ABS, original air conditioner, etc., with both comfort and safety. 5-ton crane configuration is optional.
Chassis
Foton SE3
Emission Standard
National VI
Engine
Weichai WP3NQ160E61
Gearbox
Fast Small 8-speed
Rear Axle
8T
Tire
7.50R16 Steel Wire Tire
Wheelbase
3600mm
Cargo Box Length
3.30m
Crane Capacity
4 ton (Optional 5 ton)
Boom Sections
4 sections
Max Lifting Height
11.6 meters
Max Working Radius
9.6 meters
Outrigger Span
2-4.6 meters
Slewing Angle
360°
Control Mode
Lower Control
  • Foton SE3 4 Ton Truck Mounted Crane 4-section Boom 11.6m Lifting Height
  • Foton SE3 4 Ton Truck Mounted Crane 4-section Boom 11.6m Lifting Height
  • Foton SE3 4 Ton Truck Mounted Crane 4-section Boom 11.6m Lifting Height
  • Foton SE3 4 Ton Truck Mounted Crane 4-section Boom 11.6m Lifting Height

Description

This Foton SE3 4-ton truck mounted crane is powered by a National VI Weichai WP3NQ160E61 engine, meeting emission standards, matched with a Fast small 8-speed gearbox for smooth operation and stable driving. The chassis adopts 215 local three-layer frame with strong load capacity, total mass 8280KG and cargo box length 3.3m, meeting short-distance transportation needs.
The 4-ton 4-section crane has a maximum lifting moment of 100KN·M, lifting height of 11.6m, outrigger span of 2-4.6m, 360° full rotation and 0-78° luffing angle, covering a wide working range. The crane adopts a single-pump hydraulic system with stable operation and lower control mode. The truck is equipped with electric windows, driving recorder, ABS, original air conditioner, etc., with both comfort and safety. 5-ton crane configuration is optional.
