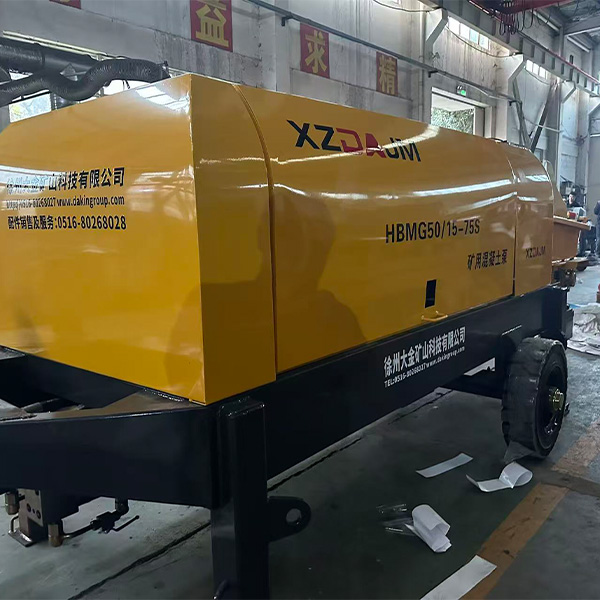

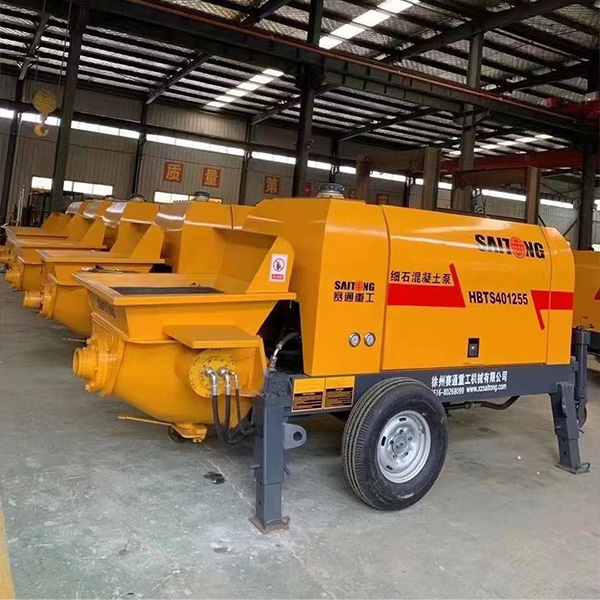

Fine-grained Concrete Pump HBTS30/HBTS40 | Electric Driven Concrete Pump for High-rise Buildings & Underfloor Heating

Name: Fine-grained Concrete Pump HBTS30/HBTS40 | Electric Driven Concrete Pump for High-rise Buildings & Underfloor Heating
Brand: GLOBALMACHEX
SKU: HBTS30/HBTS40
Availability: InStock
Rating: 5 (1 reviews)

The fine-grained concrete pump integrates multiple cutting-edge concrete pumping technologies, representing China’s first advanced underfloor heating construction equipment. Designed for high-rise buildings and large-scale underfloor heating projects, it adopts international renowned brand components and stable engineering design to enhance operational efficiency and reduce labor intensity. Models HBTS30-10-37, HBTS30-10-45, HBTS40-12-55 offer max output up to 40m³/h and pressure up to 12MPa, ideal for construction and rental industries.

Send Message Contact Supplier

Xuzhou Saitong Heavy Industry Machinery Co., Ltd.

View Supplier

Registration Date June 2010

Company Personnel 50 people

Site Area 6600-10000㎡

Annual Output 1000+

Details

Specifications

Product Overview

The fine-grained concrete pump is China’s first advanced underfloor heating construction equipment, integrating multiple cutting-edge concrete pumping technologies. It is specially designed for large-scale, high-efficiency installation of fine-grained concrete or mortar filling layers in underfloor heating projects, with a focus on high-rise building applications. Featuring internationally renowned brand components and a rational engineering design, it delivers exceptional stability, greatly improving operational efficiency while reducing manual labor intensity.

Core Performance & Hydraulic System

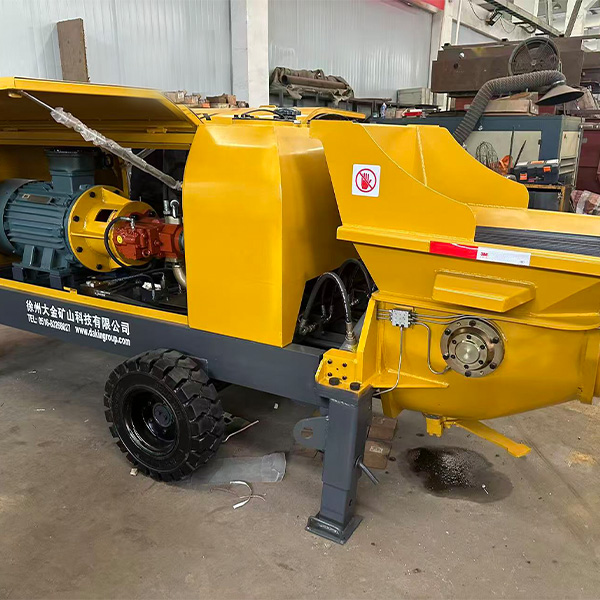

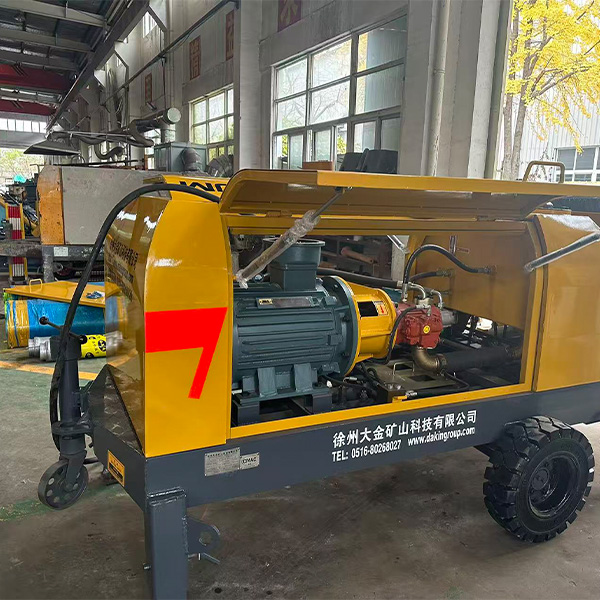

This series of fine-grained concrete pumps adopts an open hydraulic system configuration, driven by electric motors with power options of 37kW, 45kW, and 55kW. The rated voltage is 380V, and the motor speed is 1480r/min, ensuring stable power output. Equipped with an S-type distribution valve and cycloidal hydraulic motors, it provides smooth and responsive control. The maximum theoretical output reaches 40m³/h, and the maximum concrete pressure is up to 12MPa, meeting the demands of high-rise building transportation and large-area underfloor heating construction.

Structural Design & Convenient Operation

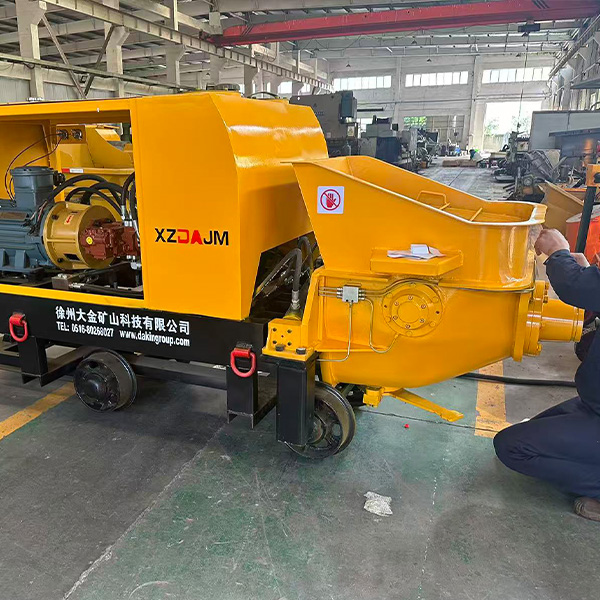

The pump features a compact structure with optimized dimensions, making it easy to transport and deploy on construction sites. The hopper capacity is 0.6m³, supporting efficient continuous feeding. The HBTS30-10-45 and HBTS40-12-55 models are equipped with imported critical components, enhancing durability and reliability. The rational layout includes an external fuel filler and LED lighting, improving operational convenience and safety.

Application Scenarios & Certification

Certified to meet international export standards, this fine-grained concrete pump is widely used in high-rise building concrete transportation, underfloor heating project mortar/fine stone concrete filling layer construction, indoor renovation, road repair, and landscaping projects. It can be matched with various attachments to expand its versatility, making it an ideal choice for construction companies and rental businesses.

Why Choose Our Fine-grained Concrete Pump?

Customized for high-rise buildings and underfloor heating projects, with high performance matching.
Internationally renowned components and stable design, low failure rate and long service life.
Multiple power models available to suit different construction scales and budgets.
Efficient operation reduces labor costs and improves overall project efficiency.
Meets international certification standards, suitable for global market sales.

Hydraulic System Configuration

open

rated voltage

380 V

Form of distribution valve

Max theor Output

30 m³/h / 30 m³/h / 40 m³/h

Max Concrete Pressure

10 MPa / 10 MPa / 12 MPa

dynamic form

electric motor

speed

1480 r/min

power of motor

37 kW / 45 kW / 55 kW

Main oil cylinder diameter

90 mm / 90 mm / 100 mm

Cylinder diameter of transfer cylinder

140 mm / 140 mm / 160 mm

Hydraulic oil tank volume

120 L

bucket capacity

0.6 m³

duct

80 mm

Hopper height

1100 mm

Appearance size

4000×1650×1600 mm / 4350×1650×1750 mm / 4350×1650×1750 mm

Total weight

2500 kg / 3000 kg / 3200 kg

Critical component configuration

made in China / importation / importation
