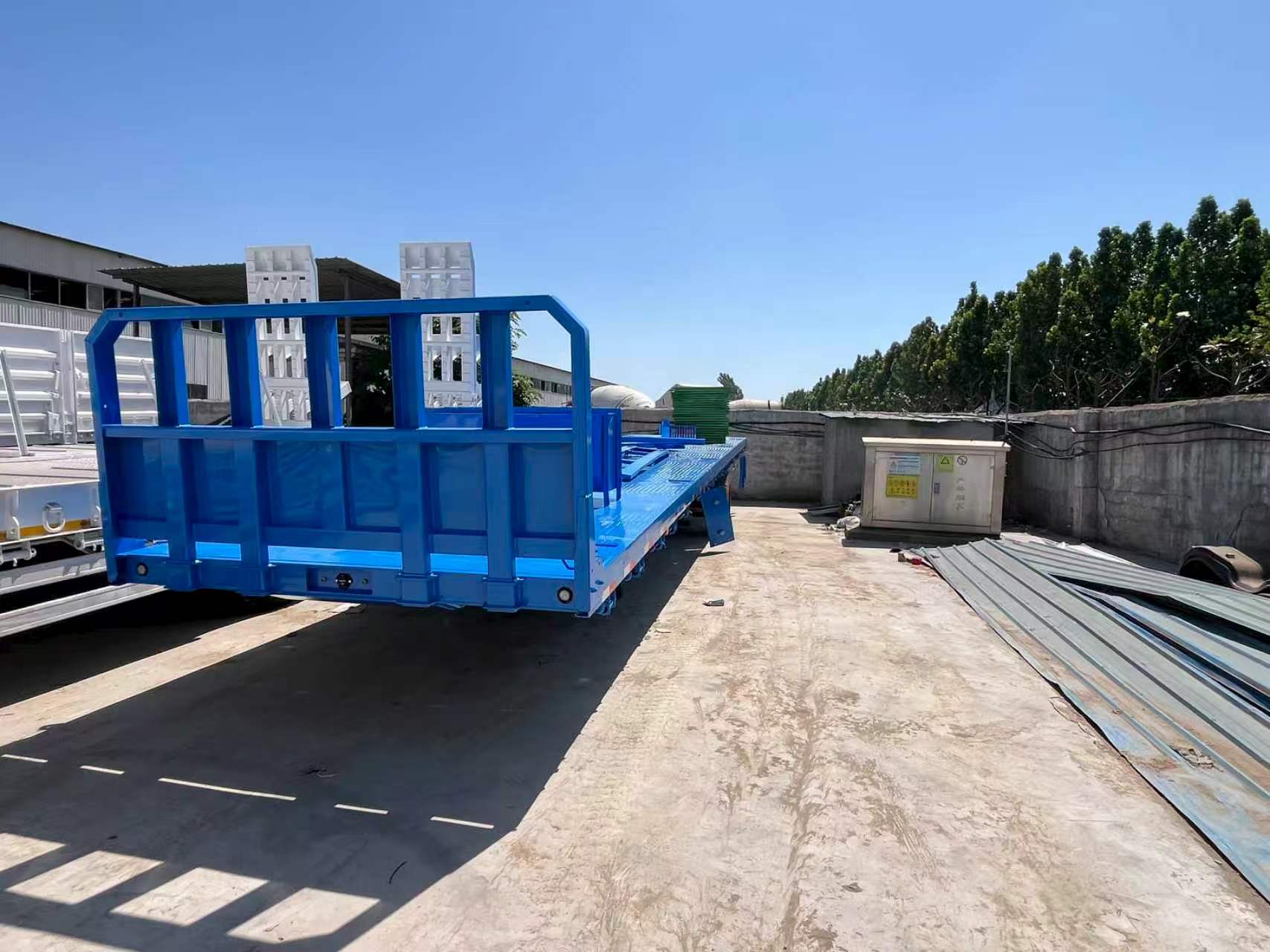

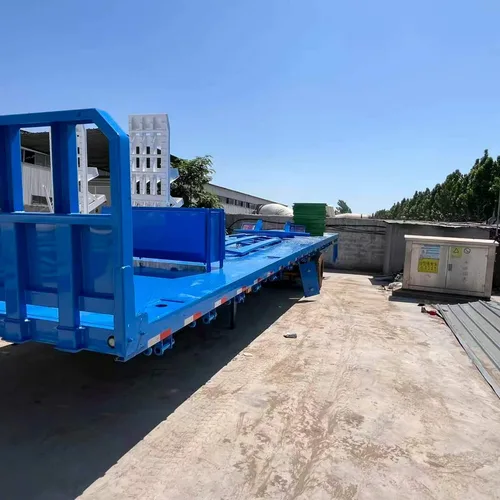

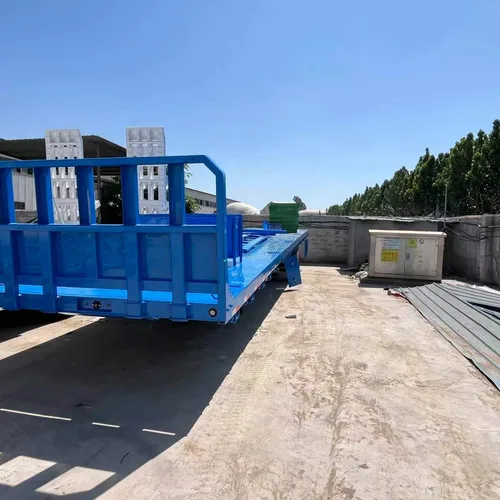

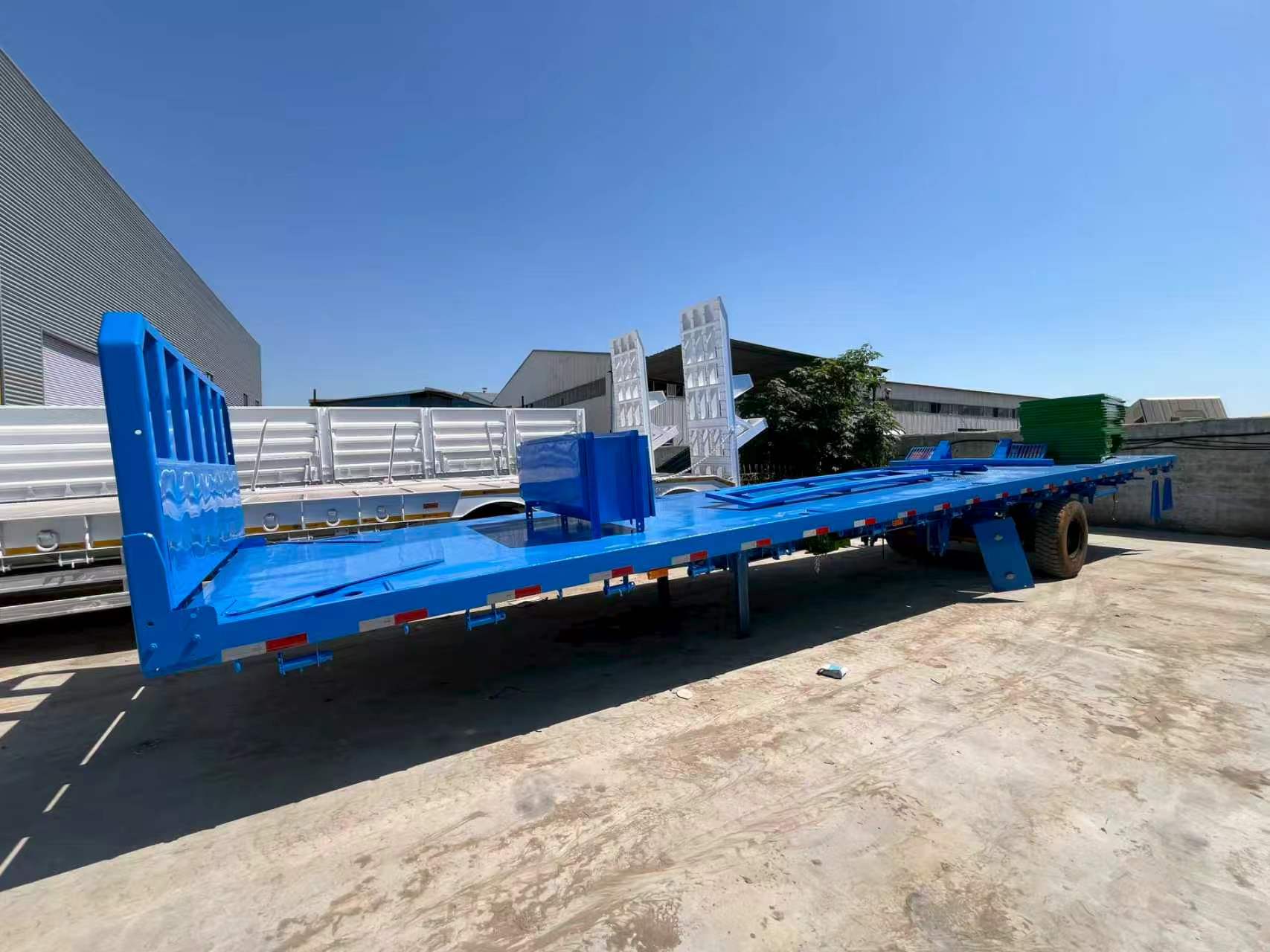

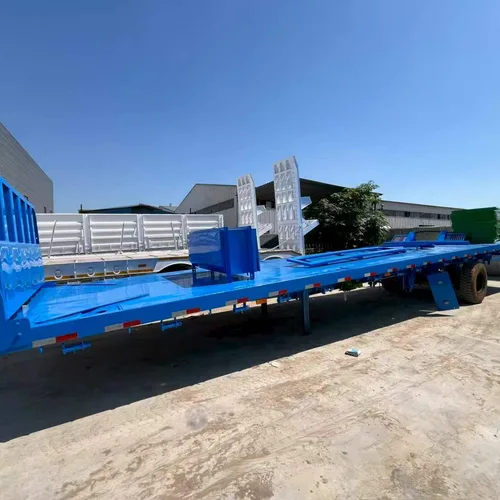

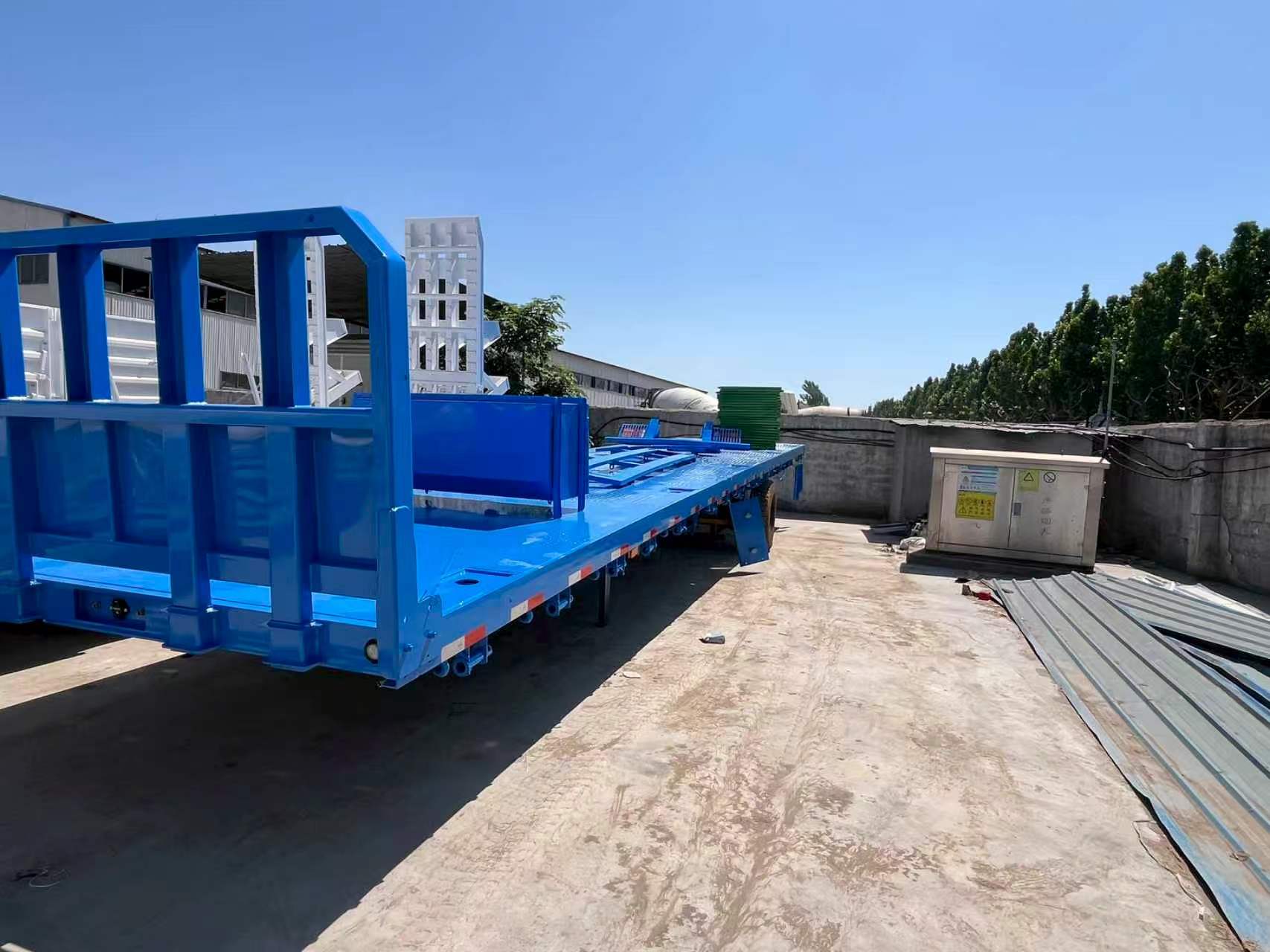

Export Heavy Duty Low Platform Semi Trailer with FUWA/BPW Axle, Optional Hydraulic Ramp & Gooseneck

Name: Export Heavy Duty Low Platform Semi Trailer with FUWA/BPW Axle, Optional Hydraulic Ramp & Gooseneck
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

3-axle lowboy semi trailer built with Q345B box-type high tensile steel, rated payload 40~60Ton, optional FUWA/BPW axle and ABS brake, equipped with mechanical/hydraulic loading ramp. Ultra-low deck height 0.8~1.1m for excavator & heavy machinery haulage, customizable dimension & hydraulic gooseneck for Africa, Middle East & Southeast Asia market.

$8826.00 - 11768.00

Send Message Contact Supplier

Liangshan Huachang Trailer Manufacturing Co., Ltd.

View Supplier

Year Established Established in 2007

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Box-type Mn Steel Beam for Heavy Anti-distortion
Closed Q345B manganese box main beam with full submerged arc welding resists bending under full heavy machinery load, perfect for rough mine roads across Africa and Middle East.
Ultra-low Deck Avoid Over-height Restriction
0.8~1.1m low platform cuts overall loaded height to comply with global highway height limit, customized widened deck for oversize wide cargo transportation.
Load Ramp & Front Guard Improve Loading Safety
20~40Ton capacity ramp allows crawler machine self-drive onboard without crane assistance; factory front bumper prevents cargo shifting to damage tractor head during transit.
Full-range Customization for Global Regulation
2/3/4 axle optional, mechanical/hydraulic ramp & detachable hydraulic gooseneck available, air suspension and famous brand axles meet regional legal requirements worldwide.
Cost-effective Export Solution with Global Aftermarket
Globally available FUWA/BPW spare parts cut local maintenance cost; factory direct price with full customs clearance & container shipping service for bulk export.

Model

3 Axle Lowboy Semi Trailer, Standard Ramp, Hydraulic Gooseneck Optional

Rated Payload

40~60Ton, Custom Heavy Load:80~100Ton

Empty Weight

7~10Ton (Depends on Optional Accessories)

Deck Dimension

Length:10~13m(Max 16m Custom), Width:2.5~3m(Up to3.5m)

Deck Height

Ultra-low Deck:0.8~1.1m from Ground

Axle

13/16Ton Axle, FUWA/BPW/Domestic Optional

Tyres

12.00R20 /11R22.5 Heavy-duty Tyre

Suspension

Mechanical Leaf Spring, Air/Hydraulic Suspension Optional

Frame Material

Q345B High Strength Mn Steel Box Beam

Ramp

Standard Mechanical Ramp, Hydraulic Optional, Load 20~40Ton

Front Guard

Heavy-duty Fixed Front Bumper Guard

Landing Gear

Double-action Hydraulic Landing Gear

Brake

Dual-line Air Brake + Standard ABS, WABCO Valve Optional

Optional Parts

Hydraulic Gooseneck, Widened Deck, Toolbox, Custom Painting, Multi-axle Upgrade

Description

Box-type Mn Steel Beam for Heavy Anti-distortion
Closed Q345B manganese box main beam with full submerged arc welding resists bending under full heavy machinery load, perfect for rough mine roads across Africa and Middle East.
Ultra-low Deck Avoid Over-height Restriction
0.8~1.1m low platform cuts overall loaded height to comply with global highway height limit, customized widened deck for oversize wide cargo transportation.
Load Ramp & Front Guard Improve Loading Safety
20~40Ton capacity ramp allows crawler machine self-drive onboard without crane assistance; factory front bumper prevents cargo shifting to damage tractor head during transit.
Full-range Customization for Global Regulation
2/3/4 axle optional, mechanical/hydraulic ramp & detachable hydraulic gooseneck available, air suspension and famous brand axles meet regional legal requirements worldwide.
Cost-effective Export Solution with Global Aftermarket
Globally available FUWA/BPW spare parts cut local maintenance cost; factory direct price with full customs clearance & container shipping service for bulk export.
