Complete Series Hydraulic Concrete Pulverizer Model 1400/1700/2660 Single Cylinder & Rotary Double Cylinder Fit 20-35 Ton Excavator Demolition Rebar Separation

Name: Complete Series Hydraulic Concrete Pulverizer Model 1400/1700/2660 Single Cylinder & Rotary Double Cylinder Fit 20-35 Ton Excavator Demolition Rebar Separation
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

This series includes Model 1400 & 1700 single-cylinder concrete pulverizer and Model 2660 rotary double-cylinder pulverizer shear, compatible with all 20~35 ton excavators. Lightweight single-cylinder design of 1400/1700 features large jaw opening and strong crushing force, specially for concrete breaking and rebar separation in house demolition. Heavy-duty 360° rotary double-cylinder 2660 equipped with extended wear-resistant blades, realizes dual functions of concrete breaking and thick rebar/scrap steel cutting. The whole machine adopts high-strength wear-resistant steel plate and imported hydraulic oil seals. Custom connecting brackets fit Sany, XCMG, Caterpillar, Komatsu and all other excavator brands, widely exported to demolition & construction waste recycling projects in Central Asia and Africa.

$3851.00

Model:

220

230

280

Send Message Contact Supplier

Yantai Jinshan Heavy Industry Machinery Equipment Co., Ltd.

View Supplier

Year Established Established in 2009

Employees 101-500 People

Factory Area > 50,000 m²

Annual Revenue US$10 Million - US$50 Million

Main Markets North America / Europe / Southeast Asia / Oceania

Details

Specifications

Trade Information

Core Foreign Trade Advantage Of Two Differentiated Structure Types
The complete set includes lightweight single-cylinder model (1400/1700) and heavy-duty rotary double-cylinder model (2660), covering market demands of small indoor building demolition and large factory & bridge dismantling. Model 1400/1700 adopts lightweight non-rotary design with light dead weight & flexible slewing performance, free of space limits for narrow indoor construction sites and low-rise old house demolition. The single-cylinder structure has fewer spare parts and low failure rate, cutting maintenance cost for small overseas demolition teams. Model 2660 features exclusive unlimited 360° rotation structure to clamp and break materials at any angle, equipped with 260mm extended wear-resistant alloy blades. It realizes dual functions of concrete breaking, rebar stripping and direct cutting of thick steel plates, I-beams and truck girders, reducing customer equipment procurement cost with one machine for two uses. All machines are made of high wear-resistant base material, cylinders fitted with imported dust-proof high-pressure oil seals, adapting to dusty and dry harsh working conditions in Central Asia and Africa, avoiding oil leakage and cracking under long-term operation. Custom client brand LOGO printing on body is supported to meet local brand promotion demands overseas.
Model-specific Balanced Load Hydraulic Driving System
Model 1400/1700 is equipped with single large-bore hydraulic cylinder under standard 320kg/cm² working pressure, delivering sufficient crushing force to break concrete blocks and strip embedded rebars rapidly, matching 20-24t / 20-30t conventional excavators. Model 2660 adopts two synchronous high-thrust hydraulic cylinders with wide pressure range of 300-320kg/cm² and peak cutting force up to 2550kN, matched with Φ752mm large diameter slewing bearing for stable rotation without jamming during heavy-load breaking and cutting, compatible with 20-35 ton heavy-duty excavators. Overload buffer valve is built into hydraulic circuit of all models to release pressure automatically when breaking & cutting force exceeds limit, protecting excavator main pump and hydraulic cylinder to extend service life of whole machine and host equipment.
Complete Safety & Wear-resistant Protection System For All Models

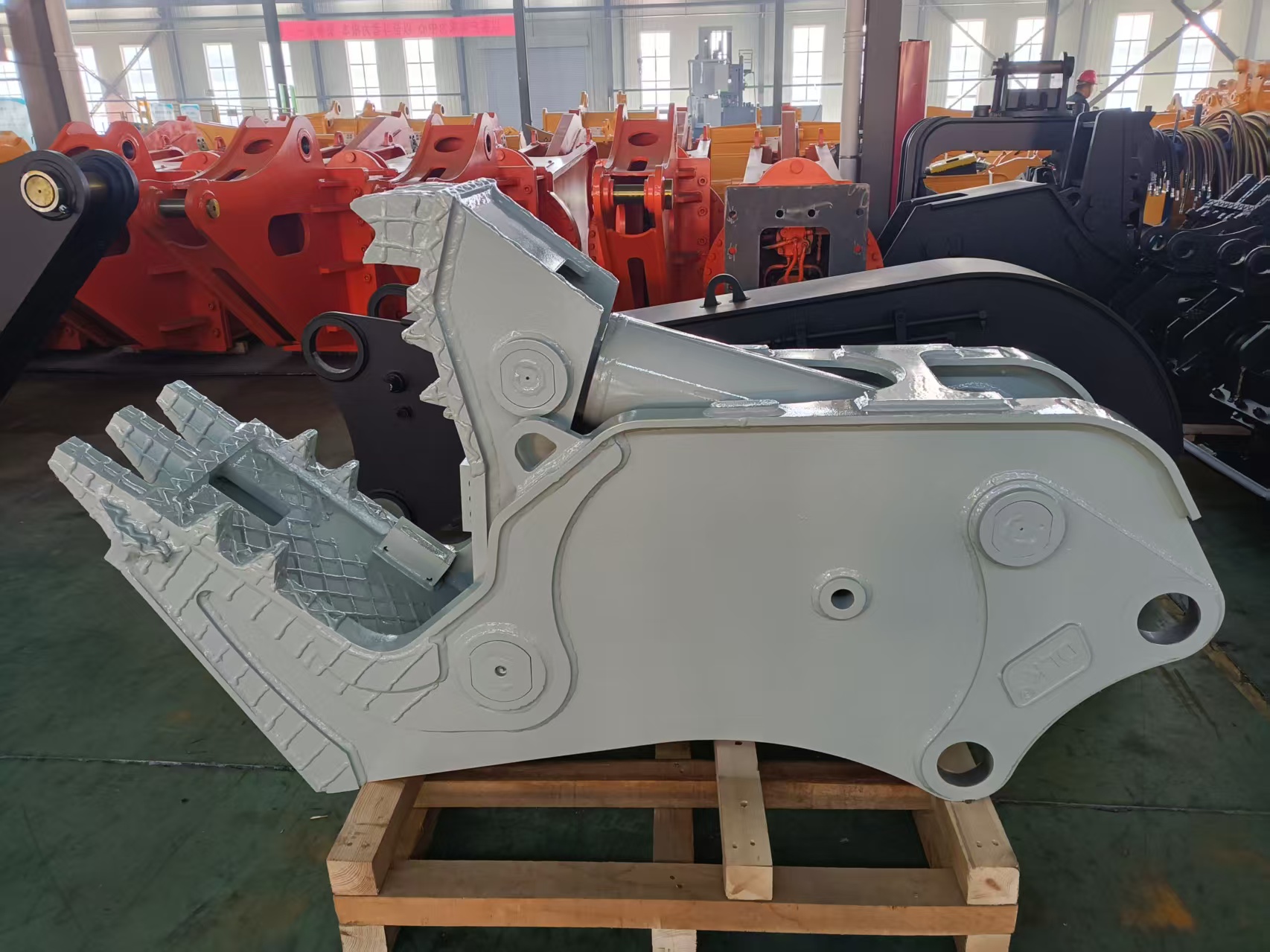

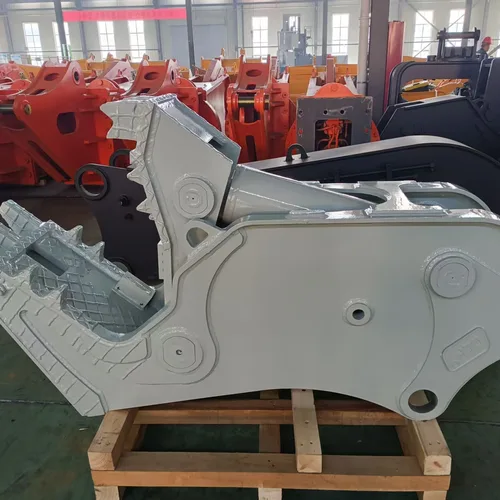

Body of 1400/1700 is integrally cast steel with few welding seams and strong impact resistance, large jaw opening clamps massive construction waste without tooth collapse. Model 2660 whole body is welded with imported HARDOX wear-resistant steel plate, thickened tooth seat and cutting teeth, 260mm extended blades can be polished and repaired repeatedly with service life 3 times longer than ordinary pulverizers. Clamping teeth of all machines are forged from special wear-resistant alloy steel, resistant to abrasion and crack when breaking concrete and biting rebars. Explosion-proof high-pressure hoses are standard for pipelines, not easy to damage by gravel impact at mine and demolition yards. Lifting and maintenance points are reserved on whole machine, full set of reflective warning signs supplied to comply with local safety regulations for hoisting and night construction overseas.
Full-range Personalized Customization Service For Overseas Market
Connecting brackets can be customized separately according to bucket ear sizes of global excavator brands including Sany, XCMG, Caterpillar, Komatsu and Hyundai. Hydraulic joints can be made to Russian, European and Chinese standards to fit hydraulic circuits of different overseas excavator brands. Body paint color, side brand LOGO, blade thickening treatment and overall weight reinforcement structure are all adjustable on demand. Overall machine dimension and weight can be modified to comply with construction machinery regulations of Russia, Central Asia and Africa, pressure & load tests required for CE certification finished before delivery to simplify customs clearance and registration procedures.
Core Application Scenarios
Model 1400/1700 Single Cylinder: Indoor demolition of urban low-rise old buildings, small construction waste recycling stations, civil building concrete breaking and waste rebar separation.

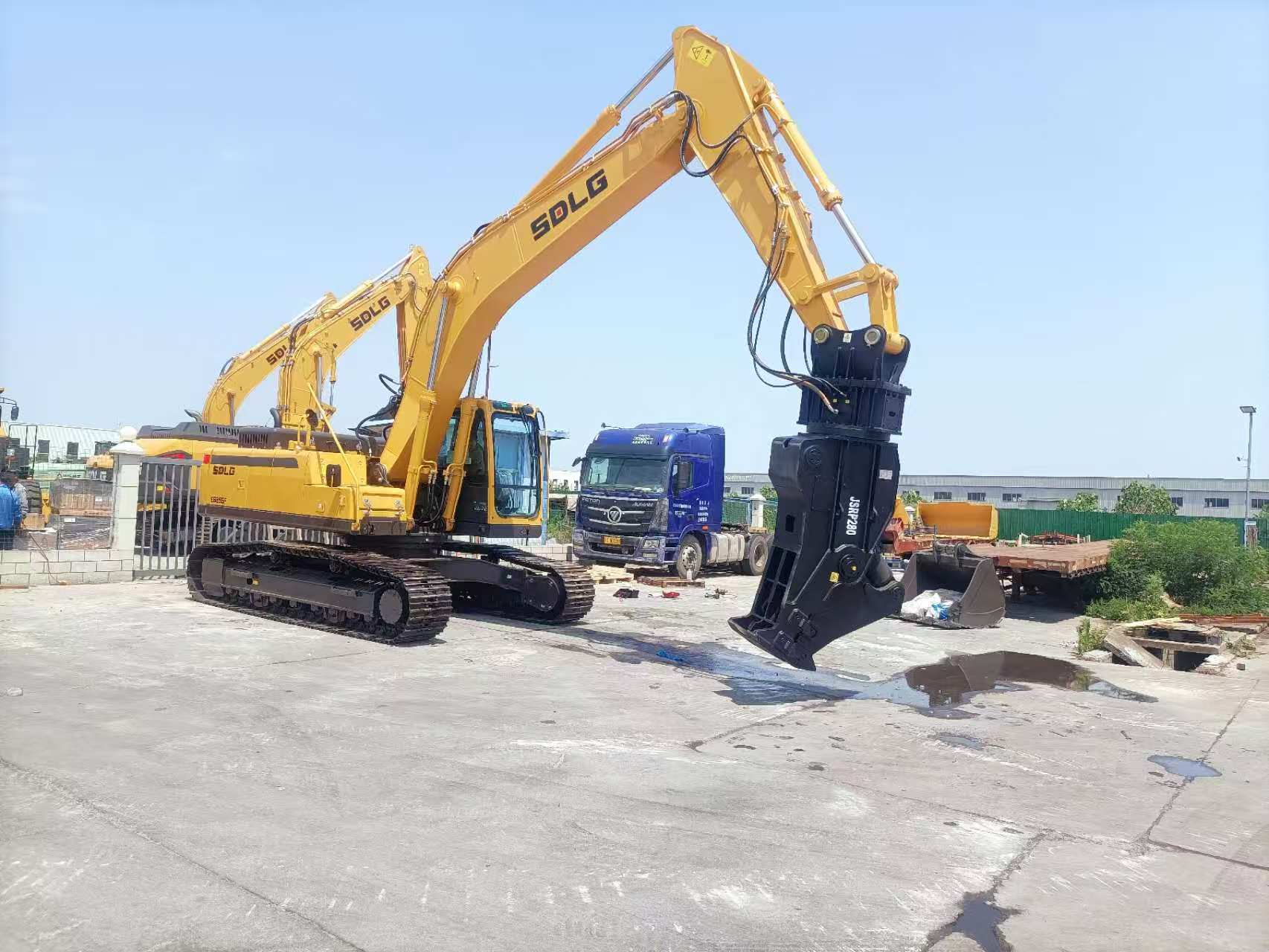

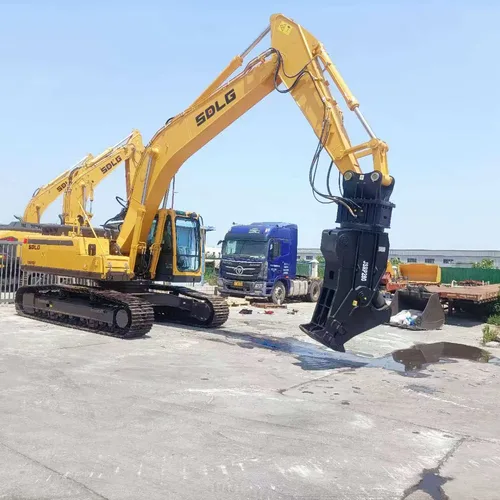

Model 2660 Rotary Double Cylinder: Large factory steel structure dismantling, bridge reinforced concrete breaking, scrap truck & semi-trailer girder cutting, thick scrap steel recycling at steel mills and heavy-load operation at large open-air demolition yards.
The complete set is mainstream hydraulic demolition attachment exported to demolition and construction waste recycling projects in Russia, Central Asia and Africa.
Full Export Supporting Service
①Imported hydraulic seals and large-diameter slewing bearings optional; CE whole machine export certificate and third-party hydraulic pressure & load test report available.
②Double coating of anti-rust epoxy primer & wear-resistant top coat for whole machine, fumigated reinforced wooden frame packaging for ocean shipping. 24-hour online Chinese & English technical after-sales support, wearing parts including blades, oil seals, pins, high-pressure hoses and slewing bearings can be exported separately in bulk for replenishment.
③Compatible with LHD & RHD excavators worldwide, connecting bracket size and pipeline joints adjustable to meet construction machinery standards of all countries; tri-lingual (Russian, English, Chinese) operation manual for equipment installation, maintenance and troubleshooting supplied.

Weight

1400kg / 1700kg / 2660kg

Max. Opening

693mm / 810mm / 880mm

Working Flow

200L/min / 200L/min / 200-250L/min

Working Pressure

320kg/cm² / 320kg/cm² / 300-320kg/cm²

Slew Diameter

/ / /Φ752mm

Blade Length

/ / /260mm

Crushing / Cutting Force

800kN /950kN/ 2550kN

Matching Excavator Ton

20-24t / 20-30t / 20-35t

MOQ

1 Pieces

Description

Core Foreign Trade Advantage Of Two Differentiated Structure Types
The complete set includes lightweight single-cylinder model (1400/1700) and heavy-duty rotary double-cylinder model (2660), covering market demands of small indoor building demolition and large factory & bridge dismantling. Model 1400/1700 adopts lightweight non-rotary design with light dead weight & flexible slewing performance, free of space limits for narrow indoor construction sites and low-rise old house demolition. The single-cylinder structure has fewer spare parts and low failure rate, cutting maintenance cost for small overseas demolition teams. Model 2660 features exclusive unlimited 360° rotation structure to clamp and break materials at any angle, equipped with 260mm extended wear-resistant alloy blades. It realizes dual functions of concrete breaking, rebar stripping and direct cutting of thick steel plates, I-beams and truck girders, reducing customer equipment procurement cost with one machine for two uses. All machines are made of high wear-resistant base material, cylinders fitted with imported dust-proof high-pressure oil seals, adapting to dusty and dry harsh working conditions in Central Asia and Africa, avoiding oil leakage and cracking under long-term operation. Custom client brand LOGO printing on body is supported to meet local brand promotion demands overseas.
Model-specific Balanced Load Hydraulic Driving System
Model 1400/1700 is equipped with single large-bore hydraulic cylinder under standard 320kg/cm² working pressure, delivering sufficient crushing force to break concrete blocks and strip embedded rebars rapidly, matching 20-24t / 20-30t conventional excavators. Model 2660 adopts two synchronous high-thrust hydraulic cylinders with wide pressure range of 300-320kg/cm² and peak cutting force up to 2550kN, matched with Φ752mm large diameter slewing bearing for stable rotation without jamming during heavy-load breaking and cutting, compatible with 20-35 ton heavy-duty excavators. Overload buffer valve is built into hydraulic circuit of all models to release pressure automatically when breaking & cutting force exceeds limit, protecting excavator main pump and hydraulic cylinder to extend service life of whole machine and host equipment.
Complete Safety & Wear-resistant Protection System For All Models
Body of 1400/1700 is integrally cast steel with few welding seams and strong impact resistance, large jaw opening clamps massive construction waste without tooth collapse. Model 2660 whole body is welded with imported HARDOX wear-resistant steel plate, thickened tooth seat and cutting teeth, 260mm extended blades can be polished and repaired repeatedly with service life 3 times longer than ordinary pulverizers. Clamping teeth of all machines are forged from special wear-resistant alloy steel, resistant to abrasion and crack when breaking concrete and biting rebars. Explosion-proof high-pressure hoses are standard for pipelines, not easy to damage by gravel impact at mine and demolition yards. Lifting and maintenance points are reserved on whole machine, full set of reflective warning signs supplied to comply with local safety regulations for hoisting and night construction overseas.
Full-range Personalized Customization Service For Overseas Market
Connecting brackets can be customized separately according to bucket ear sizes of global excavator brands including Sany, XCMG, Caterpillar, Komatsu and Hyundai. Hydraulic joints can be made to Russian, European and Chinese standards to fit hydraulic circuits of different overseas excavator brands. Body paint color, side brand LOGO, blade thickening treatment and overall weight reinforcement structure are all adjustable on demand. Overall machine dimension and weight can be modified to comply with construction machinery regulations of Russia, Central Asia and Africa, pressure & load tests required for CE certification finished before delivery to simplify customs clearance and registration procedures.
Core Application Scenarios
Model 1400/1700 Single Cylinder: Indoor demolition of urban low-rise old buildings, small construction waste recycling stations, civil building concrete breaking and waste rebar separation.
Model 2660 Rotary Double Cylinder: Large factory steel structure dismantling, bridge reinforced concrete breaking, scrap truck & semi-trailer girder cutting, thick scrap steel recycling at steel mills and heavy-load operation at large open-air demolition yards.
The complete set is mainstream hydraulic demolition attachment exported to demolition and construction waste recycling projects in Russia, Central Asia and Africa.
Full Export Supporting Service
①Imported hydraulic seals and large-diameter slewing bearings optional; CE whole machine export certificate and third-party hydraulic pressure & load test report available.
②Double coating of anti-rust epoxy primer & wear-resistant top coat for whole machine, fumigated reinforced wooden frame packaging for ocean shipping. 24-hour online Chinese & English technical after-sales support, wearing parts including blades, oil seals, pins, high-pressure hoses and slewing bearings can be exported separately in bulk for replenishment.
③Compatible with LHD & RHD excavators worldwide, connecting bracket size and pipeline joints adjustable to meet construction machinery standards of all countries; tri-lingual (Russian, English, Chinese) operation manual for equipment installation, maintenance and troubleshooting supplied.
