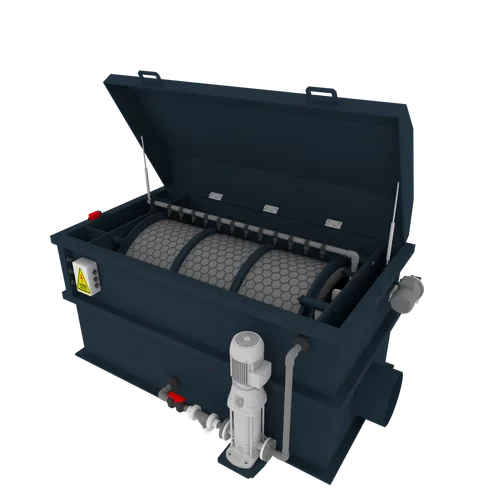

Box Microfilter

HXBDF is a mechanical filtration device with low energy consumption and high efficiency, which adopts advanced European manufacturing technology and is improved by combining domestic localization application scenarios. It can realize rapid and continuous removal of fine particles in aquaculture water and online self-cleaning.
$8520.00
Shandong Naxin New Energy Co., Ltd.

Shandong Naxin New Energy Co., Ltd.

View Supplier
Registration Date October 2017
Number of Employees 200
Factory Area 46,000 m²
Annual Sales 400 Million RMB
Main Products Water Source Heat Pump, Air Source Heat Pump, Low Temperature Difference Waste Heat Recovery Unit, Filter, Micro-filter, Protein Separator, Oxygen Increasing Equipment, Disinfection Equipment, Aquaculture Pond, Intelligent Bait Feeder, Fish Manure Collector; Full Life Cycle System Solutions for Modern Agriculture & Aquaculture
Target Markets Aquaculture Industry, Industrial Recirculating Aquaculture System
Details
Specifications
  • High efficiency and energy saving:

Compared with the frame microfilter, the same processing capacity drives the motor.
  • Emergency device:

Self-contained emergency overflow device to prevent "flooding" accident.
  • Easy installation:

The box-type shell design eliminates the construction of civil works and is convenient to install and use.
  • High strength and corrosion resistance:

The box is made of imported Guiren plate, which is corrosion-resistant, UV-resistant, long in service life and superior in strength to HDPE.
  • Automation design:
Automatic liquid level detection and automatic backwashing realize continuous and stable operation.
  • Composite mesh:

The filter screen is made of "HXBee-Cell" composite mesh, which is anti-pollution, high strength and easy to clean.
  • "Double" insurance design:

All moving parts are designed with "double" safety, so as to eliminate potential safety hazards and realize long-term safe and stable operation.
  • Intelligent monitoring:

PLC intelligent monitoring can realize remote observation of operation status and fault alarm mechanism.
Maximum throughput *(m³/h)
80/160/240/320
Filtering accuracy
Standard configuration: 200 mesh, 65um filter disc, other filtering accuracy can be customized.
Motor power (kw)
0.18/0.18/0.25/0.25
Drive motor control mode
Frequency conversion control
Power of backwashing water pump (kw)
0.75/0.75/1.1/1.1
Appearance dimension (mm)
1347*1280*1085/1762*1280*1085/2177*1280*1085/2592*1280*1085
Main material
Food grade polypropylene PP-A grade
Equipment weight (kg)
127/165/211/247
  • Box Microfilter

Description

  • High efficiency and energy saving:

Compared with the frame microfilter, the same processing capacity drives the motor.
  • Emergency device:

Self-contained emergency overflow device to prevent "flooding" accident.
  • Easy installation:

The box-type shell design eliminates the construction of civil works and is convenient to install and use.
  • High strength and corrosion resistance:

The box is made of imported Guiren plate, which is corrosion-resistant, UV-resistant, long in service life and superior in strength to HDPE.
  • Automation design:
Automatic liquid level detection and automatic backwashing realize continuous and stable operation.
  • Composite mesh:

The filter screen is made of "HXBee-Cell" composite mesh, which is anti-pollution, high strength and easy to clean.
  • "Double" insurance design:

All moving parts are designed with "double" safety, so as to eliminate potential safety hazards and realize long-term safe and stable operation.
  • Intelligent monitoring:

PLC intelligent monitoring can realize remote observation of operation status and fault alarm mechanism.
