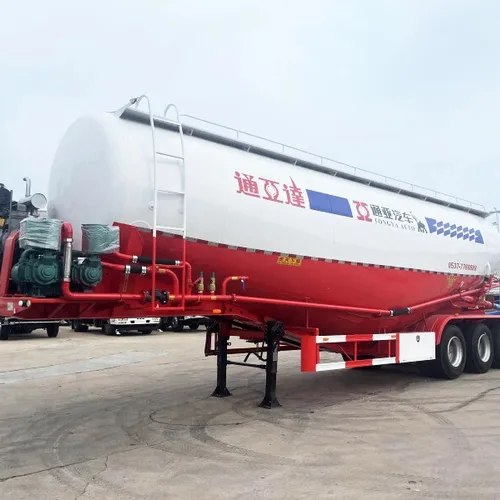

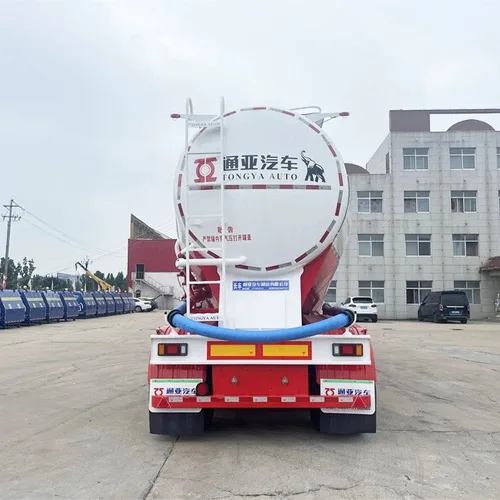

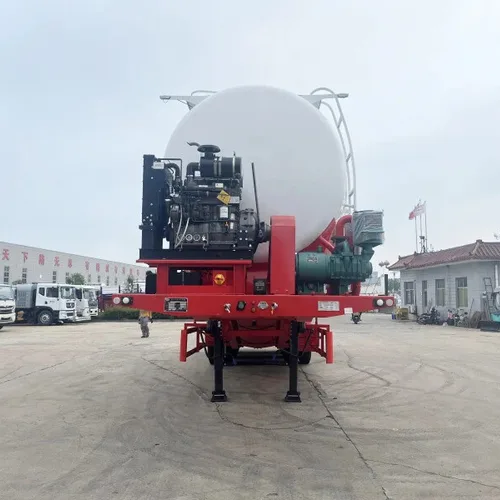

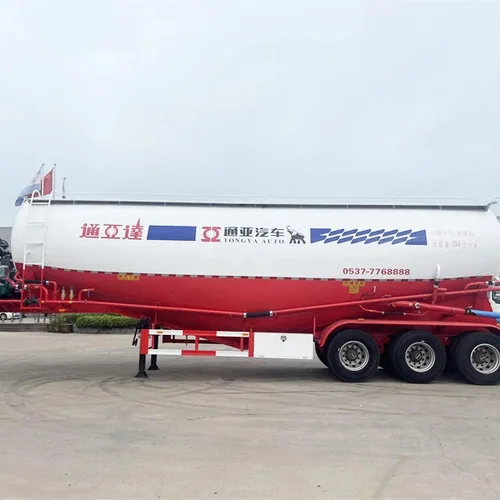

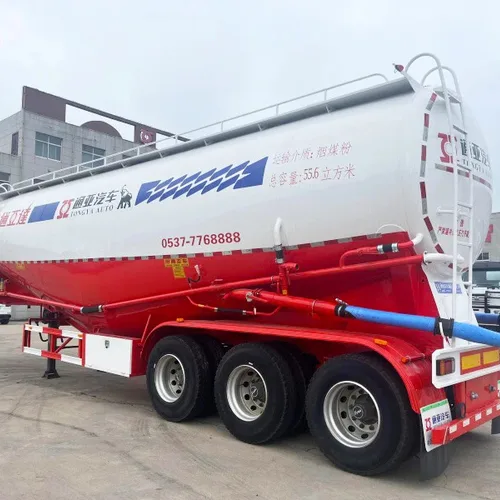

60 Ton Bulk Cement Tanker Semi Trailer 56m3 Fly Ash/Powder Tanker by Tongya Auto

Name: 60 Ton Bulk Cement Tanker Semi Trailer 56m3 Fly Ash/Powder Tanker by Tongya Auto
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

The 60-ton bulk cement tanker semi trailer by Tongya Auto has a rated capacity of 56m³, designed for transporting bulk cement, fly ash, pulverized coal and other powder materials. Adopting a "V" shaped tank structure and equipped with a double-cylinder air compressor, it features fast discharging speed with less than 0.3% residual volume, widely used in infrastructure construction, building material transportation and power plants.

$15500.00

Send Message Contact Supplier

Tongya Automobile Co., Ltd.

View Supplier

Registration Date June 24, 2000

Number of Employees 600+

Factory Area 400,000+ m²

Annual Output 16,000+ Units

Main Products Fuel Tanker Semi Trailer, Bulk Cement Tanker Semi Trailer, Low Bed Semi Trailer, Side Wall Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Dump Semi Trailer, Curtain Semi Trailer, Sanitation Vehicles

Target Markets Russia, East South Asia, South America, Africa, Central Asia and South Asia

Details

Specifications

Customization available: Tanker capacity and style can be customized according to customer requirements;

✅ Leading manufacturer: Founded in 1982, top 1 sales volume in China since 2012;

✅ Power options: Engine and air compressor available, optional PTO drive via truck tractor;

✅ High efficiency: Fast discharging with <0.3% retention volume, short delivery time of 18 days.

Model

60T Bulk Cement Tanker Semi Traile

Tare Weight

13 Tons

Loading Capacity

60 Tons

Total Weight

63 Tons

Dimensions

13000×2500×3800mm (subject to final design drawing)

Tanker Capacity

56m³ (56000L)

Tanker Design

Heavy duty & extra durable, automatic submerged-arc welding

Tanker Material

5mm Q235 steel body, 6mm Q235 steel ends

Bottom Chassis

High-strength Q345B steel

Tanker Shape

"V" shape

Silo

1 Silo

Manhole

3 pieces, diameter 500mm

Discharge Mouth

4 inch

Safety

Standard safety pressure valve

Discharge Hose

8m with hose carrier, customizable length

Air Compressor

Bohai brand 12m³ double-cylinder air compressor

Engine

Weichai 4102 diesel engine

Rear Parts

Standard rear ladder and handrail

Retention Volume

<0.3%

Axle

3×13 tons, FUWA brand

King Pin

JOST brand, 2.0/3.5 inch bolting king pin

Suspension

American design heavy duty suspension with equalizers

Steel Spring

Six sets of 10pcs leaf spring, 16mm thickness, 90mm width

Landing Legs

JOST brand manual landing legs with sand shoe

Tire

12R22.5 or 315/80R22.5 Triangle brand

Rim

9.0-22.5

Wheel Quantity

13 pieces (including 1 spare wheel)

Brake System

WABCO relay valve; four double & two single brake chambers; one 45L air tank; two standard copper air connectors

ABS

Without (optional, 450 USD/set)

Electrical

24V 7-pin ISO 1185 socket; LED lights (rear light, turn light, reflector etc.)

Painting & Marking

Color as per client's requirement, standard marking

Side Guard

Standard side guard

Spare Wheel Carrier

Two sets of heavy duty spare wheel carriers with rise

Tool Box

1 piece (1.0×0.5×0.5m) with tire spanner, gudgeon sleeve & cranking bar
