5 Ton Spider Crane, Mini Crawler Crane, For Heavy-Duty Narrow-Space Lifting

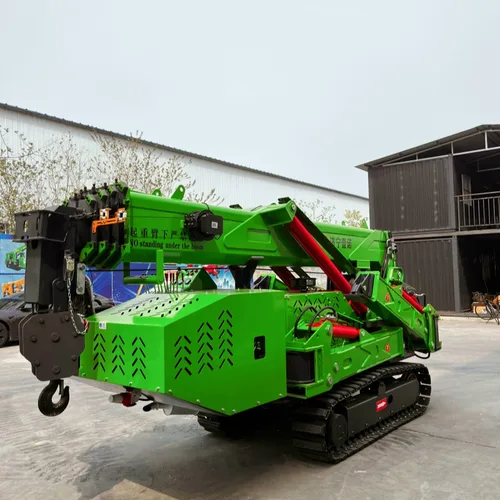

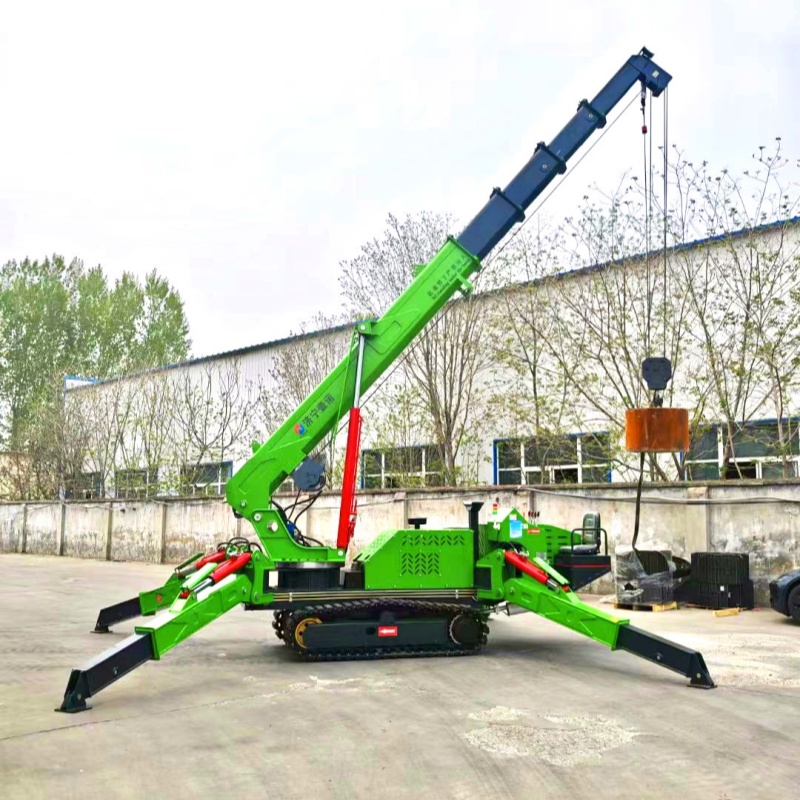

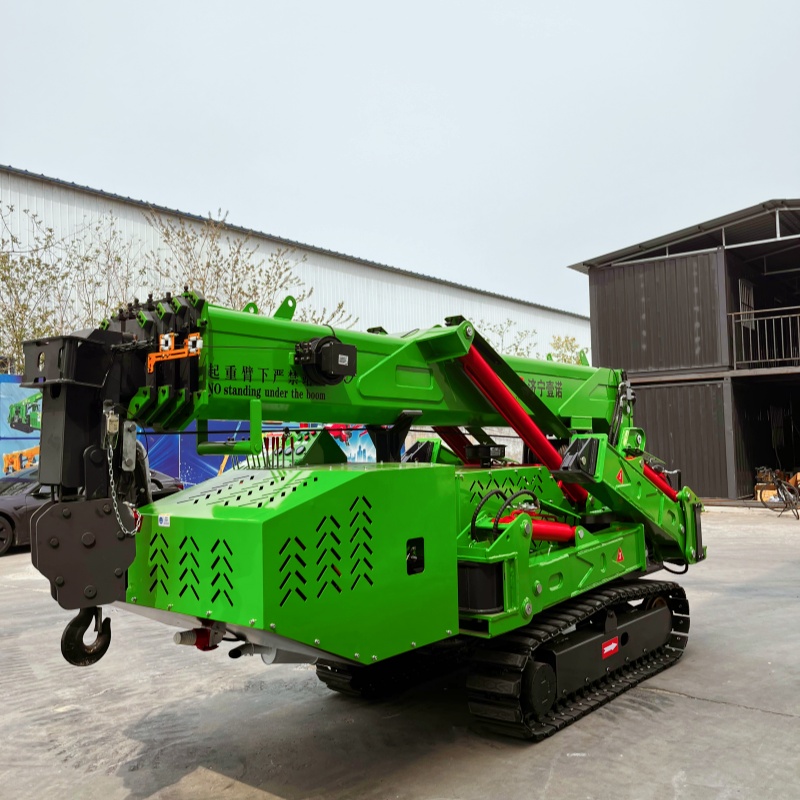

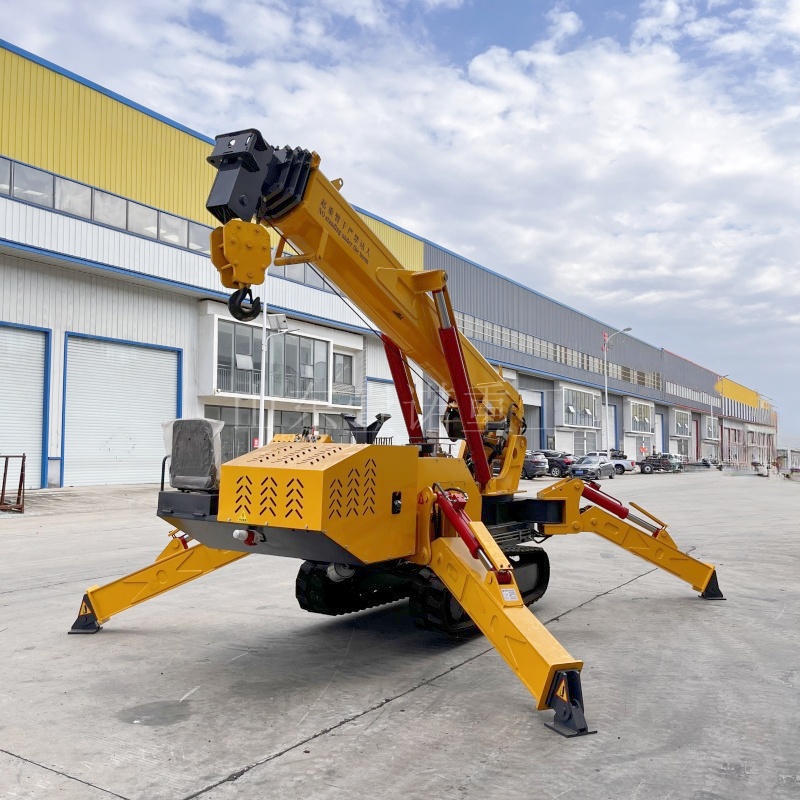

This is a 5 Ton Mini Crawler Spider Crane, the heavy-duty model in the series, purpose-built for large equipment installation, curtain wall construction, and heavy-lifting scenarios in basements and workshops. Featuring a compact crawler chassis with multi-section telescopic hydraulic outriggers, it supports wireless remote control operation with a rated lifting capacity of 5 tons and a maximum lifting height of over 16 meters, making it ideal for efficiently completing heavy-duty lifting operations in confined spaces.
$15507.80
Send Message Contact Supplier
Shandong Yinuo Heavy Industry Co., Ltd.

Shandong Yinuo Heavy Industry Co., Ltd.

View Supplier
Registration Date October 14, 2019
Number of Employees 36
Factory Area 100,000 m²
Annual Sales 87 Million RMB
Main Products Construction machinery (truck-mounted cranes, crawler cranes, forklift cranes, excavators, etc.)
Target Markets Southeast Asia, Central Asia, Russia, North Korea
Details
Specifications

1. Basic Product Information

The 5 Ton Spider Crane is the heavy-duty model in the series. With a body width of ≤1.4 meters, it still fits through elevators and stairwells into indoor spaces and basements inaccessible to conventional cranes. Featuring a reinforced crawler chassis paired with a multi-section telescopic boom and hydraulic outriggers, it offers a rated lifting capacity of 5 tons and a maximum lifting height of up to 18 meters, making it a dedicated device for heavy-duty lifting operations in confined spaces.

2. Core Advantages and Performance Features

  • Heavy-Load Adaptability: Rated lifting capacity of 5 tons with a maximum lifting height of up to 18 meters, meeting the needs of large equipment and curtain wall component lifting.
  • Narrow Site Adaptability: Compact design allows passage through elevators and stairwells into indoor spaces, solving lifting challenges inaccessible to standard heavy-duty cranes.
  • Safe and Stable Lifting: Multi-section hydraulic outriggers adjust their support angle based on site terrain, providing comprehensive stability to prevent tipping during heavy-load operations.
  • Flexible Control: Wireless remote control allows precise operation of lifting, luffing, and travel from a safe distance, reducing operational risk.
  • Floor Protection Design: Reinforced rubber crawler chassis avoids scratching indoor surfaces such as tiles and wood floors even under heavy loads, suitable for indoor operations.
  • Multiple Power Options: Diesel, electric, and hybrid high-power configurations are available to meet different power/fuel requirements of the working environment.

3. Application Scenarios

  • Curtain Wall Construction: Installation of large glass and stone curtain walls on high-rise buildings;
  • Equipment Installation: Lifting of heavy equipment, air conditioning units, and distribution panels in elevator shafts and machine rooms;
  • Indoor Decoration: Lifting of large stone, steel, and heavy components in high-rise interiors;
  • Other Scenarios: Large equipment relocation and heavy component lifting in basements and workshops.

4. Operation and Safety Recommendations

  • Confirm the ground bearing capacity before lifting; fully extend and pad the outriggers to ensure stable support.
  • Operate strictly within the rated load and working radius; overloading is prohibited.
  • Maintain a safe distance between the crane body and walls/obstacles during indoor operations to prevent collisions.
  • Regularly inspect the hydraulic system, outriggers, and crawler tracks for wear to ensure the equipment is in good working condition.
Product Model
5 Ton Mini Crawler Spider Crane
Rated Lifting Capacity
5 Ton (Varies by Working Radius)
Max Working Radius
Approx. 6-9 Meters (Depends on Boom Configuration)
Max Lifting Height
Approx. 14-18 Meters (Multi-Section Telescopic Boom)
Chassis Type
Reinforced Rubber Crawler Chassis, Strong Heavy-Load Stability, Good Terrain Adaptability
Outrigger Type
Multi-Section Telescopic Hydraulic Outriggers, Adjustable Support Angles for Comprehensive Stability
Power Type
Diesel / Electric / Hybrid (Optional, High-Power Configuration)
Control Mode
Wireless Remote + Manual Dual Control, Supports Precision Operation
Body Dimensions
Width ≤1.4 Meters, Fits in Elevators/Stairwells
Application Scenarios
Large Curtain Wall Construction, Heavy Equipment Installation, Basement/Workshop Equipment Relocation, High-Rise Indoor Heavy-Load Lifting
  • 5 Ton Spider Crane, Mini Crawler Crane, For Heavy-Duty Narrow-Space Lifting
  • 5 Ton Spider Crane, Mini Crawler Crane, For Heavy-Duty Narrow-Space Lifting
  • 5 Ton Spider Crane, Mini Crawler Crane, For Heavy-Duty Narrow-Space Lifting

Description

1. Basic Product Information

The 5 Ton Spider Crane is the heavy-duty model in the series. With a body width of ≤1.4 meters, it still fits through elevators and stairwells into indoor spaces and basements inaccessible to conventional cranes. Featuring a reinforced crawler chassis paired with a multi-section telescopic boom and hydraulic outriggers, it offers a rated lifting capacity of 5 tons and a maximum lifting height of up to 18 meters, making it a dedicated device for heavy-duty lifting operations in confined spaces.

2. Core Advantages and Performance Features

  • Heavy-Load Adaptability: Rated lifting capacity of 5 tons with a maximum lifting height of up to 18 meters, meeting the needs of large equipment and curtain wall component lifting.
  • Narrow Site Adaptability: Compact design allows passage through elevators and stairwells into indoor spaces, solving lifting challenges inaccessible to standard heavy-duty cranes.
  • Safe and Stable Lifting: Multi-section hydraulic outriggers adjust their support angle based on site terrain, providing comprehensive stability to prevent tipping during heavy-load operations.
  • Flexible Control: Wireless remote control allows precise operation of lifting, luffing, and travel from a safe distance, reducing operational risk.
  • Floor Protection Design: Reinforced rubber crawler chassis avoids scratching indoor surfaces such as tiles and wood floors even under heavy loads, suitable for indoor operations.
  • Multiple Power Options: Diesel, electric, and hybrid high-power configurations are available to meet different power/fuel requirements of the working environment.

3. Application Scenarios

  • Curtain Wall Construction: Installation of large glass and stone curtain walls on high-rise buildings;
  • Equipment Installation: Lifting of heavy equipment, air conditioning units, and distribution panels in elevator shafts and machine rooms;
  • Indoor Decoration: Lifting of large stone, steel, and heavy components in high-rise interiors;
  • Other Scenarios: Large equipment relocation and heavy component lifting in basements and workshops.

4. Operation and Safety Recommendations

  • Confirm the ground bearing capacity before lifting; fully extend and pad the outriggers to ensure stable support.
  • Operate strictly within the rated load and working radius; overloading is prohibited.
  • Maintain a safe distance between the crane body and walls/obstacles during indoor operations to prevent collisions.
  • Regularly inspect the hydraulic system, outriggers, and crawler tracks for wear to ensure the equipment is in good working condition.
