1. Basic Product Information

2. Core Configuration and Performance Features

• Power and Transmission System: The 4102 turbo diesel engine delivers 70KW (95 HP) of power paired with a 530 12-speed high/low range transmission, providing strong power and good climbing performance suitable for complex construction site road conditions. It offers optional RWD/4WD, with the 4WD version delivering better passability on muddy and uneven surfaces.
• Load and Chassis Configuration: 1069 front and rear axles with 13 reinforced leaf springs ensure strong load capacity. The high-spec steel frame offers excellent torsion resistance, withstanding heavy impacts on construction sites. The cargo box features 12mm thick floor and 6mm thick side panels, wear-resistant and impact-resistant for transporting muck, ore, and other materials.

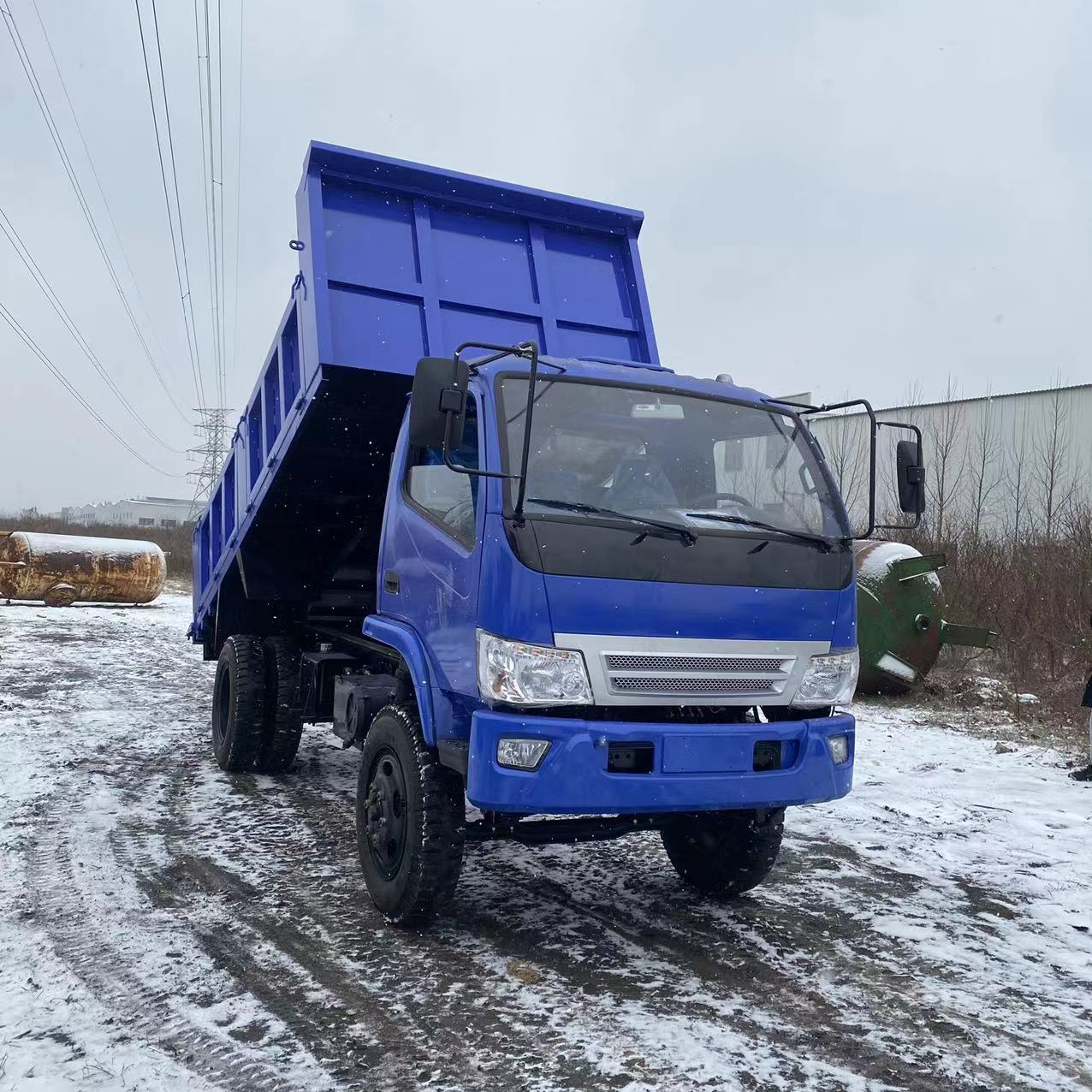

• Unloading and Braking System: The dual-cylinder hydraulic lift system with a 900mm lift height enables convenient rear discharge, improving unloading efficiency. The air brake system provides stable braking performance for enhanced safety during heavy-load downhill travel.
• Mobility and Control Configuration: 700-16 steel wire tires on both axles are wear-resistant and puncture-resistant, suitable for construction site gravel roads. The mechanical power-assisted steering system offers light operation feel, reducing fatigue during long drives. The three-way catalytic exhaust treatment ensures compliance with emissions standards for access to most construction zones.

3. Application Scenarios

• Construction Sites: Transportation of muck, sand, gravel, and concrete for civil engineering projects;
• Mining: Short-distance transfer of ore and slag in small-to-medium mines;
• Rural Infrastructure: Material transportation for rural road construction and farmland improvement;
• Other Scenarios: Small construction waste removal and material transportation for farms/plantations.

4. Operation and Maintenance Recommendations

• Distribute loads evenly to avoid tipping from uneven weight distribution; overloading is prohibited.
• Drive slowly on construction sites, avoiding sudden braking and sharp turns to protect tires and the chassis.
• Regularly inspect the hydraulic lift system, brake system, and tire wear to ensure good equipment condition.
• In cold weather, use diesel with the appropriate grade to prevent fuel line
