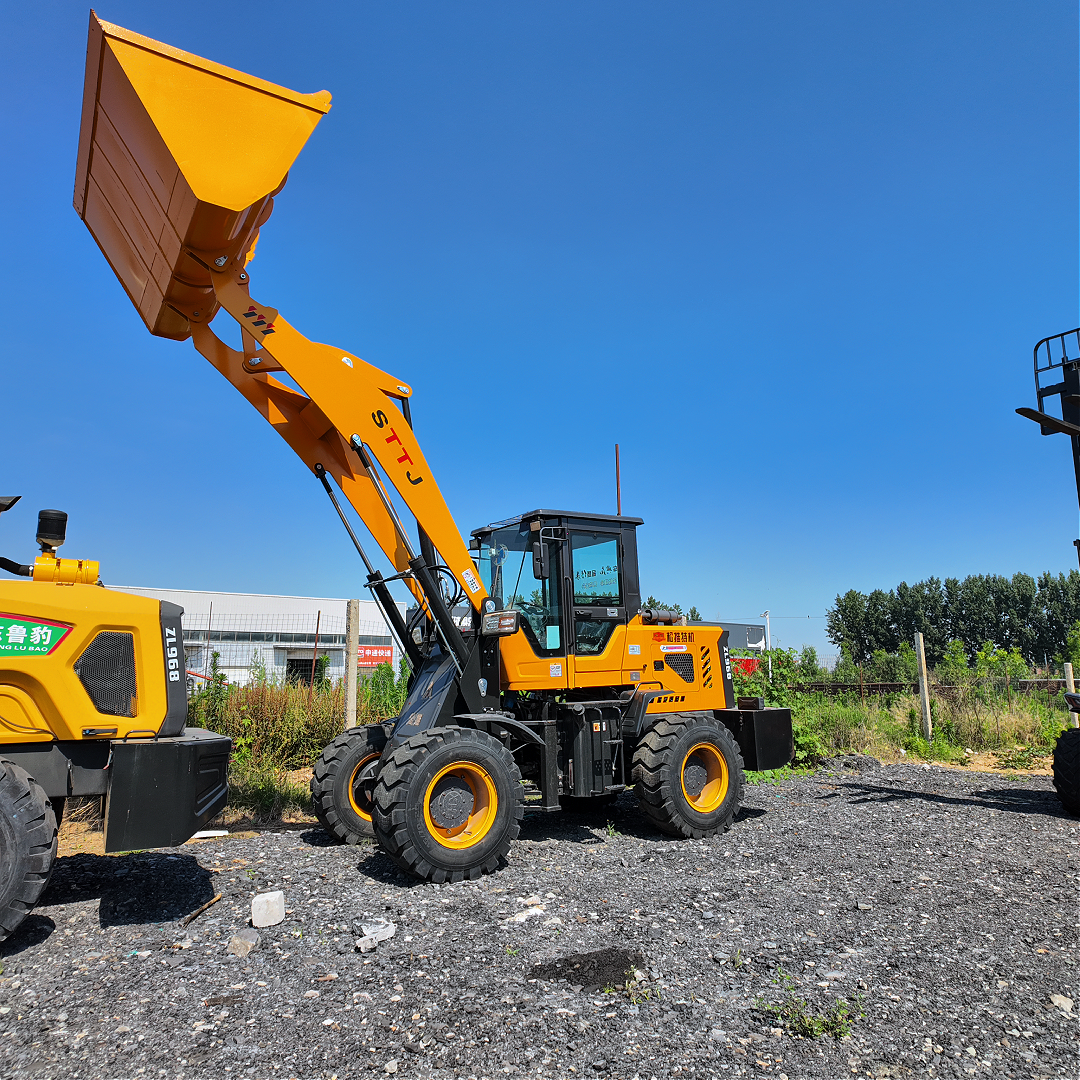

4WD Grain Depot Special Loader 3.0cm Thick Boom 4.5cm Reinforced Frame Weifang 4105 Turbo

Name: 4WD Grain Depot Special Loader 3.0cm Thick Boom 4.5cm Reinforced Frame Weifang 4105 Turbo
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Full complete set of Songtuit 968 Grain King 4WD high-dump loader, max dumping height up to 4.5m. Standard 2.15m engineering bucket, optional 80cm deepened high-volume grain bucket. 3.0cm thick widened boom, 4.5cm reinforced frame head & beam joint for heavy load. Equipped with Weifang 4105 turbo mechanical pump engine and 280 split torque converter, single-lever stepless auto transmission with travel gear, 4WD side reduction air brake. Specially for high-side truck loading in large grain depots, full machine delivered with all wearable spare parts and complete export documents as one set.

$5451.00

Send Message Contact Supplier

Jining Songtui Agricultural Machinery Co., Ltd.

Main Products: Loaders

View Supplier

Year Established Established in 2022

Main Products Loaders

Employees Less than 50 People

Factory Area 1,000-5,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Trade Information

4.5m ultra-high dumping height fits 4.2-5.8m high-side grain transport trucks, direct unloading without loading platform. Fast interchangeable standard rock bucket and deep grain bucket greatly improve grain depot transfer efficiency.
3cm thick lift boom + 4.5cm reinforced frame stress weld joint, anti-deformation and anti-crack under long-term full-load grain lifting, suitable for 24h continuous heavy work at large grain yards.
Weifang 4105 turbo pump engine matched with 280 split torque converter delivers sufficient low-speed torque without power loss when lifting full load to high-side trucks. Globally universal spare parts simplify maintenance for overseas grain depots.
Integrated single-lever auto gearbox with independent travel gear, 4WD 16-70-20 heavy tires plus side reduction air brake provide stable grip on muddy grain yards and gravel slopes, anti-slip braking during full-load long downhill travel.
Panoramic ventilated sunroof shock-absorbing cab, LCD dashboard real-time displays vehicle condition, effectively relieve operator fatigue during all-day high-intensity grain loading work.
Complete machine integrated packing delivery, main unit, wearable spare parts and export documents all included in one set, provide one-stop service including sea transport reinforcement, customs clearance and certificate of origin agency.

Max Dumping Height

4.5 Meters

Standard Bucket

2.15m Standard Engineering Bucket

Optional Replace Bucket

80cm Deepened Large Capacity Grain Bucket

Boom Spec

Widened Boom, Plate Thickness 3.0cm

Reinforced Stress Position

Head & Beam Joint Thickened 4.5cm

Tire Size

16-70-20 Heavy-duty Construction Tire

Operation Mode

Single Lever, Stepless Auto Transmission, Travel Gear, Side Reduction Axle Air Brake

Driver Cabin

Luxury Large Sunroof Cab, LCD Dashboard, Shock-absorbing Seat

Power System

Weifang 4105 Turbocharged Mechanical Pump Diesel Engine

Transmission System

Model 280 Split Hydraulic Torque Converter

MOQ

1 Pieces

Description

4.5m ultra-high dumping height fits 4.2-5.8m high-side grain transport trucks, direct unloading without loading platform. Fast interchangeable standard rock bucket and deep grain bucket greatly improve grain depot transfer efficiency.
3cm thick lift boom + 4.5cm reinforced frame stress weld joint, anti-deformation and anti-crack under long-term full-load grain lifting, suitable for 24h continuous heavy work at large grain yards.
Weifang 4105 turbo pump engine matched with 280 split torque converter delivers sufficient low-speed torque without power loss when lifting full load to high-side trucks. Globally universal spare parts simplify maintenance for overseas grain depots.
Integrated single-lever auto gearbox with independent travel gear, 4WD 16-70-20 heavy tires plus side reduction air brake provide stable grip on muddy grain yards and gravel slopes, anti-slip braking during full-load long downhill travel.
Panoramic ventilated sunroof shock-absorbing cab, LCD dashboard real-time displays vehicle condition, effectively relieve operator fatigue during all-day high-intensity grain loading work.
Complete machine integrated packing delivery, main unit, wearable spare parts and export documents all included in one set, provide one-stop service including sea transport reinforcement, customs clearance and certificate of origin agency.
