Product Summary
The Port Handling Excavator (Model PH-300) is engineered for continuous operation in high-abrasion port environments, including bulk cargo terminals, scrap yards, and timber loading docks. With a robust 30,500 kg operating weight and a high-efficiency hydraulic system delivering 2x 280 L/min main pump flow, it achieves a cycle time of just 8 seconds for a full 180-degree swing. The reinforced high-reach boom provides a maximum vertical digging height of 11.5 m, making it ideal for hopper feeding and vessel unloading.
Why Choose This Machinery
Compared to standard construction excavators, the PH-300 delivers a 15% higher fuel efficiency thanks to its variable-speed hydraulic fan and auto-idle system, reducing your per-ton operating cost. The heavy-duty undercarriage uses forged track links and six bottom rollers per side, providing 40% longer service life in abrasive port conditions. As a top-tier exporter, we offer: Genuine spare parts supply for 10+ years, 1-Year Global Warranty covering major components, and flexible shipping via RoRo or 40 HQ containers, with lead times as low as 15 days to major global ports.
Powertrain & Structural Overview

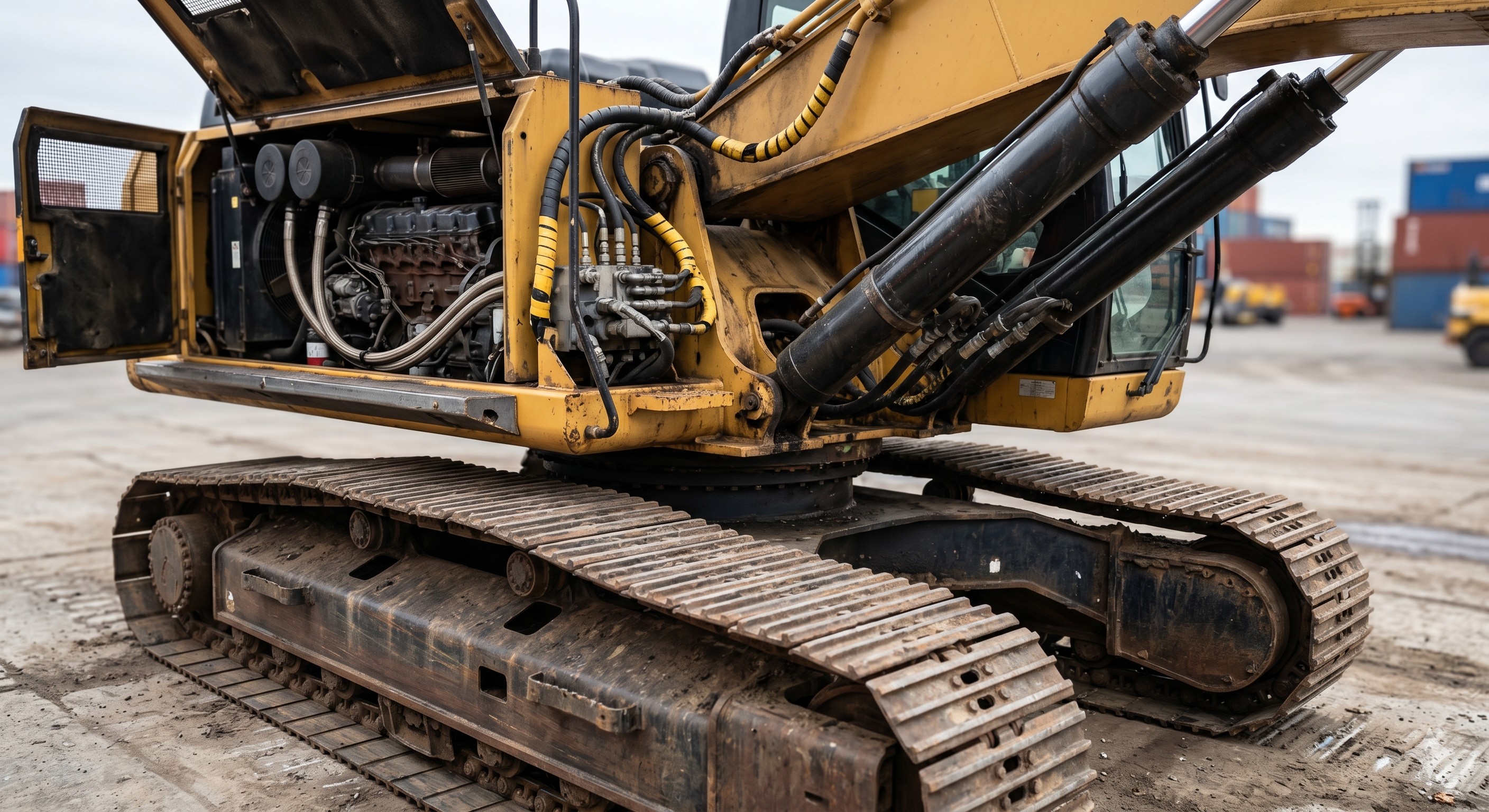

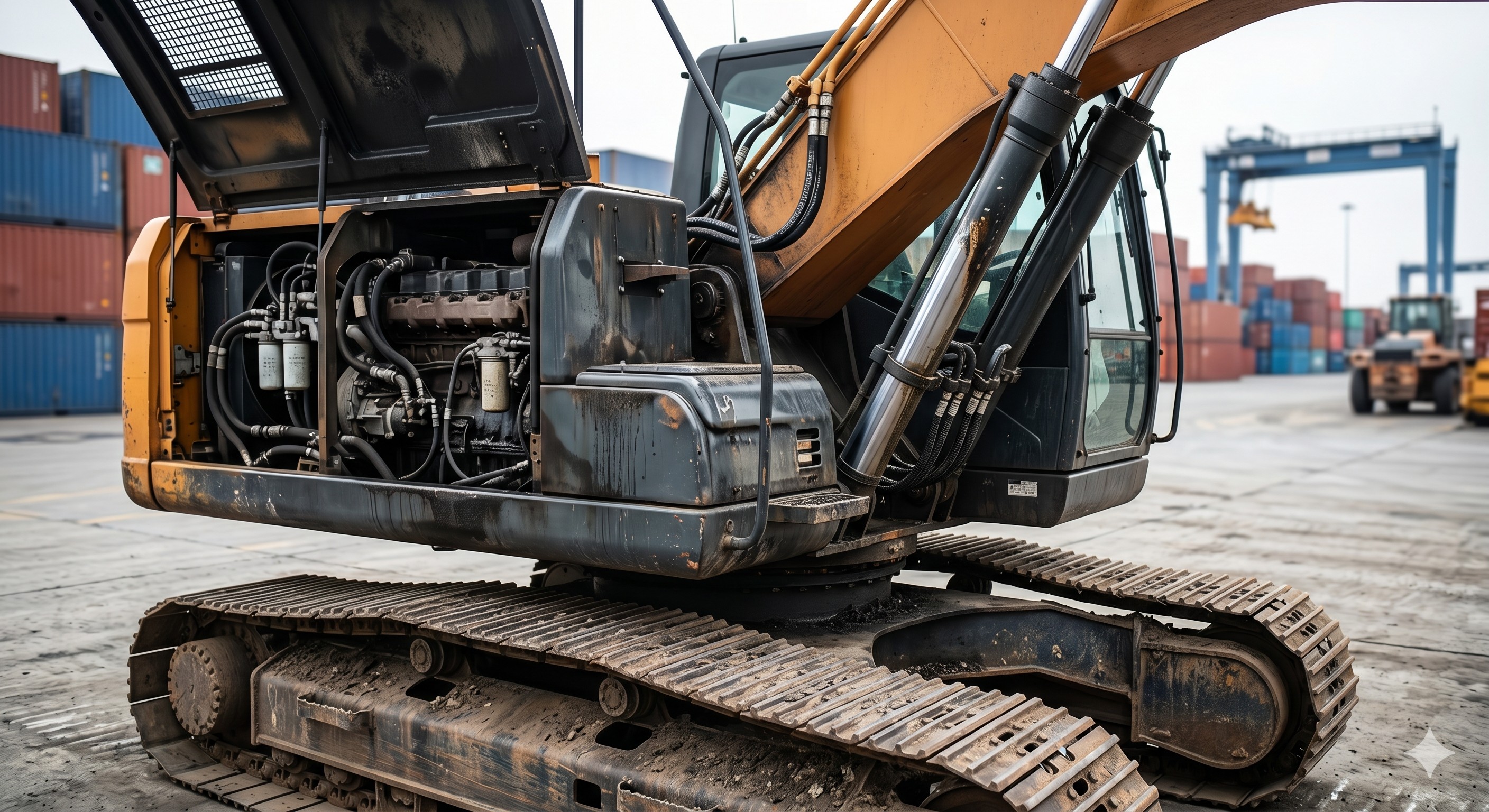

The PH-300 is powered by a Isuzu 6HK1 Tier 3 / Stage V compliant diesel engine, delivering 212 kW of reliable power with a low-rated speed of 2,000 rpm, maximizing torque while minimizing fuel burn. The closed-loop load-sensing hydraulic system, featuring Kawasaki pumps and main valves, ensures precise flow distribution for simultaneous boom, arm, and bucket operations without power loss. The reinforced upper structure includes a fully integrated FOPS/ROPS cab with large tempered glass windows, climate control, a heated air suspension seat, and an 8-inch LCD monitor displaying real-time fuel consumption, filter life, and diagnostic codes. The modular design allows rapid replacement of hydraulic hoses and cylinders, reducing downtime in port logistics.
Technical Specifications
Below is the primary data for the Port Handling Excavator PH-300. Specifications are based on OEM testing standards with 2.2 m³ heavy-duty bucket and 600 mm triple-grouser pads.
Heavy-Duty Application Scenarios
Bulk Cargo Unloading
Coal, clinker, iron ore, and grain can be efficiently transferred from vessel hoppers to shore conveyors or trucks. The high-reach boom and 2.2 m³ bucket allow for a 12 m dumping height, compatible with most mobile hoppers.
Scrap Metal & Waste Handling
Equipped with optional grapple or magnet attachments, the PH-300 excels at sorting and loading ferrous and non-ferrous scrap. The full guarding package includes belly pans and cylinder guards to prevent debris damage.
Timber & Log Loading
For forestry port applications, the machine can be fitted with a dedicated log grapple and high-visibility cab guarding, handling logs up to 6 m in length with a 3.5-ton lift capacity at full horizontal reach.
Equipment Q&A
Q1: What are the available shipping methods and typical lead times for this port handling excavator?
A1: We offer both RoRo (Roll-on/Roll-off) and 40 HQ flat rack container shipping. For RoRo to major ports like Houston, Rotterdam, or Durban, lead time is 20-30 days after deposit. Container shipping is 15-25 days, with 2 units per 40' HQ. We handle all export documentation including CE, EPA, or EAC certificates based on destination.
Q2: Does the PH-300 comply with international emission standards for import into the EU or North America?
A2: Yes, the PH-300 is available with an Isuzu engine meeting EU Stage V / EPA Tier 4 Final standards (select markets), or Tier 3 equivalent for regions with less strict requirements. We provide the necessary certificate of conformity for customs clearance. Please specify your target country at quote request.
Q3: What is included in the 1-Year Global Warranty, and how do I claim it?
A3: The warranty covers all major structural components (upper frame, undercarriage, boom, arm), the engine, and the main hydraulic pump for 12 months or 2,000 operating hours, whichever comes first. Wear parts (teeth, tracks, filters, hoses) are excluded. Claims are processed through our local partner network or via video inspection, with replacement parts shipped air freight within 5 business days.
Q4: Can you supply a wearing parts package with the machine to avoid local sourcing issues?
A4: Absolutely. We offer a 2,000-hour wearing parts kit including: 4 sets of bucket teeth & adapters, full set of track chains & pads, main & pilot filters, 6 hydraulic hoses, and a set of seal kits. This package adds $4,500 to the invoice and is highly recommended for remote ports.
Q5: Do you provide operational training documentation or on-site commissioning?
A5: Yes. Every machine ships with a detailed operator manual and a maintenance video USB drive. For fleet orders (5+ units), we offer free on-site commissioning and operator training by a factory engineer (customer provides travel and accommodation). Remote video support is always available 24/7 via WhatsApp or WeChat.
