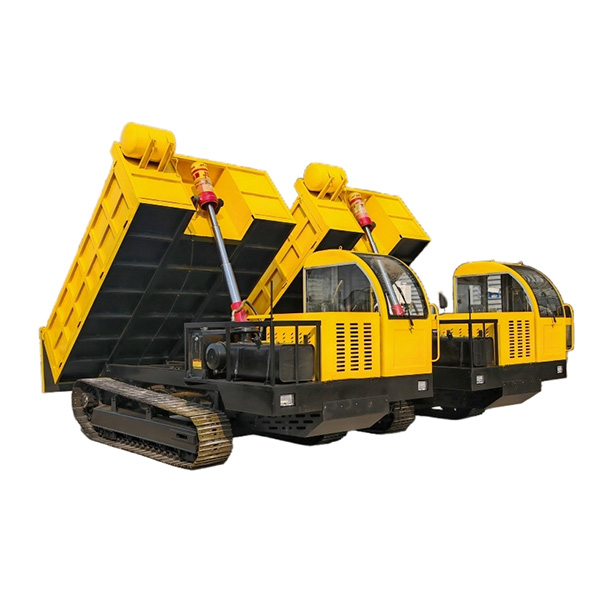

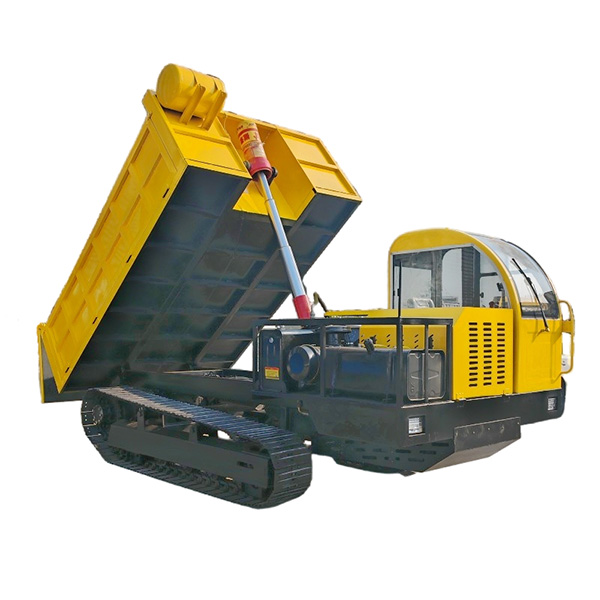

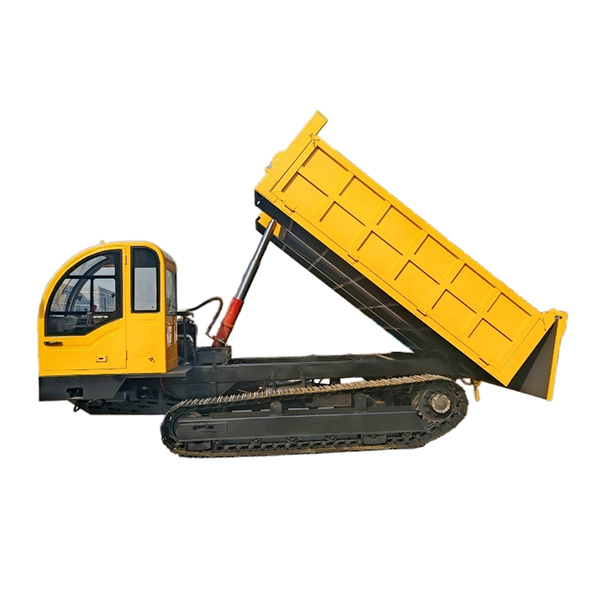

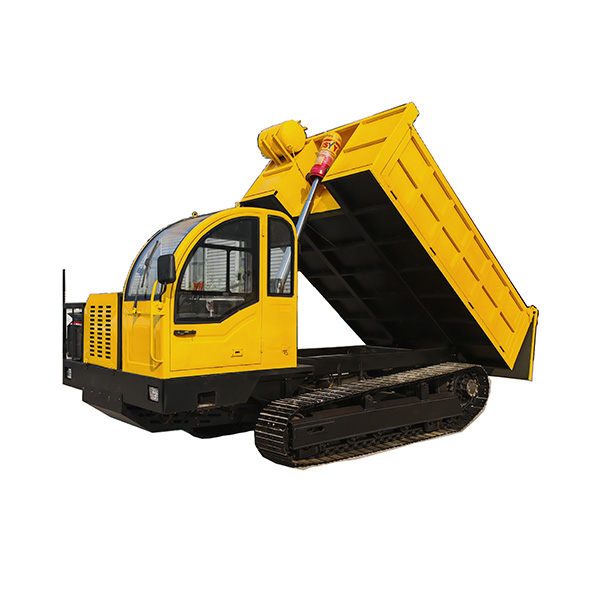

15 Ton All Terrain Crawler Dumper | EU Stage II Agricultural Tracked Tipper Truck

Name: 15 Ton All Terrain Crawler Dumper | EU Stage II Agricultural Tracked Tipper Truck
Brand: GLOBALMACHEX
SKU: 15-Ton
Availability: InStock
Rating: 5 (1 reviews)

High-performance 15 ton all terrain crawler dumper with EU Stage II diesel engine. Hydraulic self-unloading design, 15000KG load capacity, perfect for farm, construction and rough terrain transportation.

Send Message Contact Supplier

Shandong Kuangcheng Engineering Machinery Co., Ltd.

View Supplier

Registration Date May 13, 2019

Company Size 10,000 m²

Employees 100

Certifications ISO 9001, CE

Patents 10

Main Products Excavation and hoisting equipment, mining dump trucks, crawler carriers, crawler excavators

Primary Markets Europe, Africa, North America, Southeast Asia and South America

Details

Product Description

Engine	4108
Power	135kW (184 horsepower)
Gearbox Housing	Weili
Gears	10 forward gears and 2 reverse gears
Rear Axle Model	153
Container Dimensions	35002200800mm
Floor Thickness	4mm
Side Plate Thickness	3mm
Track Length	3500mm
Track Width	400mm
Overall Dimensions	550022002300mm
Track length	3500mm
Unloading Method	Hydraulic self-dumping
Braking System	Air brake
Cab	Single closed cab
Driving Position	Right-hand drive or left-hand drive
Starting Method	Electric start
Travel Speed	3-30 km/h
Gradeability	35°
Notes	Equipped with a hydraulic dozer blade at the front end.
Headlight	LED (2 pcs)
Horn	Air horn
Color	Yellow (other colors optional)

Drive Sprocket

Made of manganese steel
Provides the driving force for the equipment
High load-bearing capacity, with a maximum load of approximately 15 tons

Track Roller

Equipped with durable large bearings
Both front and rear track rollers are solid wheels
Ensures the normal operation of the equipment

Diesel Engine

We adopt the well-known domestic brand Mouldser engine.
The diesel engine supports customization, with options for Cummins or Kubota brands.
Power: 135kW (Note: 135kW ≈ 184–190 HP; the "902 horsepower" in the original text is a typo)

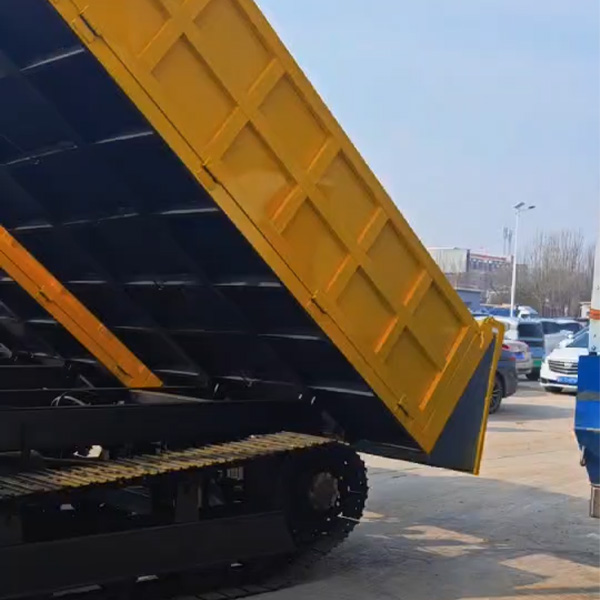

Tipper Hydraulic Cylinder

15-ton tipper hydraulic cylinder
Tilt angle up to 80°
Main beam model: 2001008
1-year warranty, lifetime after-sales service
