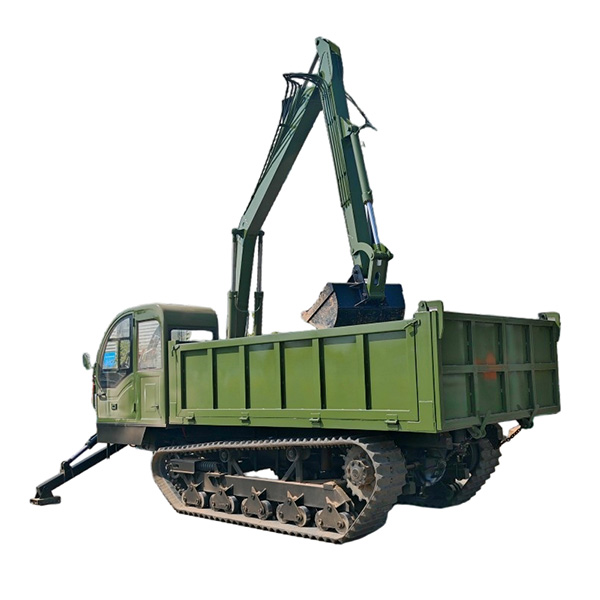

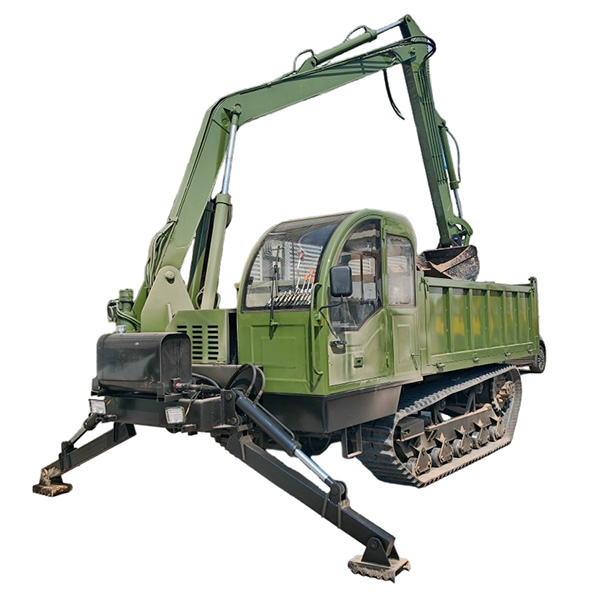

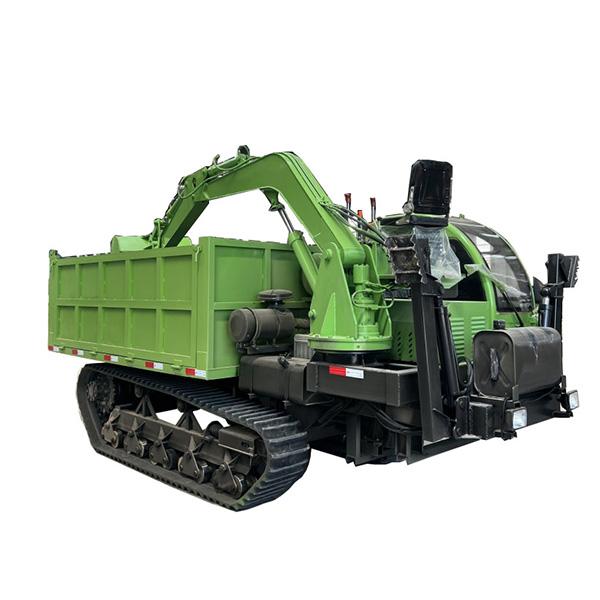

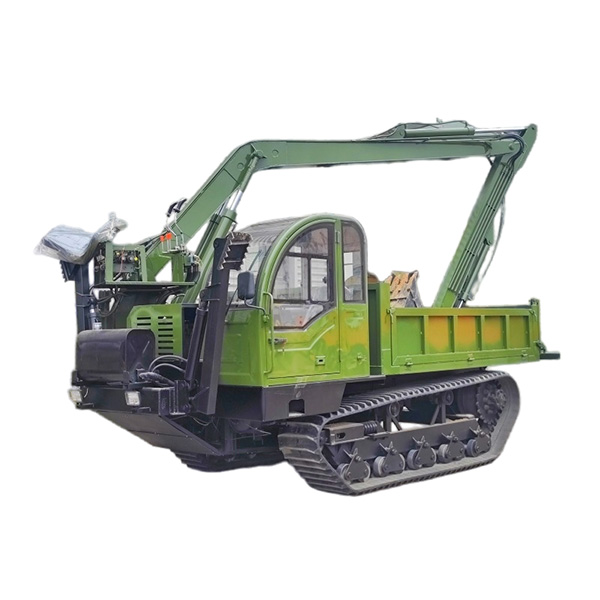

10 Ton Self-Loading Crawler Dumper Truck with Excavator | CE Compliant

10 Ton self-loading & self-dumping crawler dumper truck with integrated excavator. CE certified, manufactured by a 4-year verified factory, ideal for construction and agricultural rough terrain.
Send Message Contact Supplier
Shandong Kuangcheng Engineering Machinery Co., Ltd.

Shandong Kuangcheng Engineering Machinery Co., Ltd.

View Supplier
Registration Date May 13, 2019
Company Size 10,000 m²
Employees 100
Certifications ISO 9001, CE
Patents 10
Main Products Excavation and hoisting equipment, mining dump trucks, crawler carriers, crawler excavators
Primary Markets Europe, Africa, North America, Southeast Asia and South America
Details
Specifications

Drive Sprocket

  1. Made of manganese steel
  2. Provides the driving force for the equipment
  3. High load-bearing capacity, with a maximum load of approximately 10 tons

Excavator Arm

  1. The excavator arm is made of manganese steel
  2. High hardness, not easy to deform
  3. Thickened plate for safer and more reliable use
  4. Hand-welded

Outrigger

  1. Hydraulic valve controlled outriggers
  2. Serrated design for enhanced anti-slip performance

Diesel Engine

  1. We adopt the well-known domestic brand Mouldsel engine.
  2. The diesel engine supports customization, with options for Cummins or Kubota brands.
  3. Power: 95 kW (130 HP)

Tipping Hydraulic Cylinder

  1. 10-ton tipping hydraulic cylinder
  2. Tilting angle up to 80°
  3. Main beam model: 2001008
  4. 1-year warranty and lifetime after-sales service

Frequently Asked Questions

Q: How long is your production lead time?
A: For standard products, it takes about one week. For customized products, it takes about one month.
Q: What about the diesel engine?
A: We use well-known domestic brand diesel engines. We will also prepare some wearing parts for the engine before shipment.
The machine will work trouble-free for 5 years as long as you change the engine oil, filters and other parts regularly.
Q: Can you customize the color for us?
A: The product color can be customized according to your requirements, but it needs to meet our minimum order quantity.
Q: Is this product easy to export?
A: Yes, it is easy to export. This product belongs to construction machinery.
Q: How do you guarantee product quality?
A: We have a professional quality inspection department.
We carry out tests during production, commissioning before and after painting, and strictly control the quality.
Q: What are the advantages of choosing you?
A: The whole machine can be customized according to your requirements, and products are manufactured according to drawings.
Engine
4108 (other engine brands available)
Power
95 kW (130 HP)
Gearbox
WLY 545 Gearbox
Gears
5 forward gears + 1 reverse gear
Rear Axle Model
153
Cargo Box Dimensions
30002200800 mm
Floor Thickness
3 mm
Side Plate Thickness
3 mm
Track Width
400 mm
Overall Dimensions
480022002250 mm
Track Model
4009082
Unloading Method
Hydraulic tilting
Braking Mode
Air cut-off brake
Cab
Single closed cab
Driving Position
Left-hand drive or right-hand drive
Starting Mode
Electric start
Travel Speed
3-30 km/h
Gradeability
35°
Excavator Arm Length
5 m
Bucket Capacity
0.2 m³
Slewing Bearing
600 mm
Digging Force
3 T
Digging Depth
2800 mm
Dumping Height
5200 mm
  • 10 Ton Self-Loading Crawler Dumper Truck with Excavator | CE Compliant
  • 10 Ton Self-Loading Crawler Dumper Truck with Excavator | CE Compliant
  • 10 Ton Self-Loading Crawler Dumper Truck with Excavator | CE Compliant
  • 10 Ton Self-Loading Crawler Dumper Truck with Excavator | CE Compliant

Description

Drive Sprocket

  1. Made of manganese steel
  2. Provides the driving force for the equipment
  3. High load-bearing capacity, with a maximum load of approximately 10 tons

Excavator Arm

  1. The excavator arm is made of manganese steel
  2. High hardness, not easy to deform
  3. Thickened plate for safer and more reliable use
  4. Hand-welded

Outrigger

  1. Hydraulic valve controlled outriggers
  2. Serrated design for enhanced anti-slip performance

Diesel Engine

  1. We adopt the well-known domestic brand Mouldsel engine.
  2. The diesel engine supports customization, with options for Cummins or Kubota brands.
  3. Power: 95 kW (130 HP)

Tipping Hydraulic Cylinder

  1. 10-ton tipping hydraulic cylinder
  2. Tilting angle up to 80°
  3. Main beam model: 2001008
  4. 1-year warranty and lifetime after-sales service

Frequently Asked Questions

Q: How long is your production lead time?
A: For standard products, it takes about one week. For customized products, it takes about one month.
Q: What about the diesel engine?
A: We use well-known domestic brand diesel engines. We will also prepare some wearing parts for the engine before shipment.
The machine will work trouble-free for 5 years as long as you change the engine oil, filters and other parts regularly.
Q: Can you customize the color for us?
A: The product color can be customized according to your requirements, but it needs to meet our minimum order quantity.
Q: Is this product easy to export?
A: Yes, it is easy to export. This product belongs to construction machinery.
Q: How do you guarantee product quality?
A: We have a professional quality inspection department.
We carry out tests during production, commissioning before and after painting, and strictly control the quality.
Q: What are the advantages of choosing you?
A: The whole machine can be customized according to your requirements, and products are manufactured according to drawings.
