20 Ton Agricultural Loader | Heavy-Duty Performance & Efficiency

Introduction

In the demanding world of large-scale agriculture and bulk material handling, operational efficiency and raw power are non-negotiable. The modern 20-ton agricultural loader, such as the new flagship JCB 457S, has emerged as the definitive solution to these challenges, bridging the gap between industrial-grade strength and agricultural versatility . Designed for the most punishing tasks—from silage clamping and muck spreading to heavy earthmoving—these machines deliver class-leading power-to-weight ratios and intelligent drivetrains to maximize productivity while minimizing total cost of ownership. This article provides a technical deep-dive into the core engineering, specifications, and applications of this formidable class of heavy machinery, underscoring why it is an indispensable asset for today's industrial agricultural operations.

Core Powertrain & Structural Design

The prowess of a 20-ton agricultural loader is rooted in its robust powertrain and structural integrity. At the heart of machines like the JCB 457S is a high-torque, emissions-compliant engine, often a 6.7-litre six-cylinder Cummins B6.7, delivering a potent 282 hp (210 kW) in dynamic mode . This yields a formidable power-to-weight ratio of 14 hp per tonne, crucial for superior pushing, lifting, and climbing performance in challenging conditions .

Transmission and Driveline

These loaders feature advanced powershift transmissions, typically with six forward and three reverse ratios. A key innovation is the selectable torque converter lock-up, which provides direct mechanical drive. This feature, available as standard in all forward gears, significantly enhances pushing power and efficiency by reducing parasitic power loss, resulting in faster cycle times and improved fuel economy . Heavy-duty 20-stud axles, often equipped with limited-slip or auto-locking differentials, ensure maximum traction in slippery or uneven terrain .

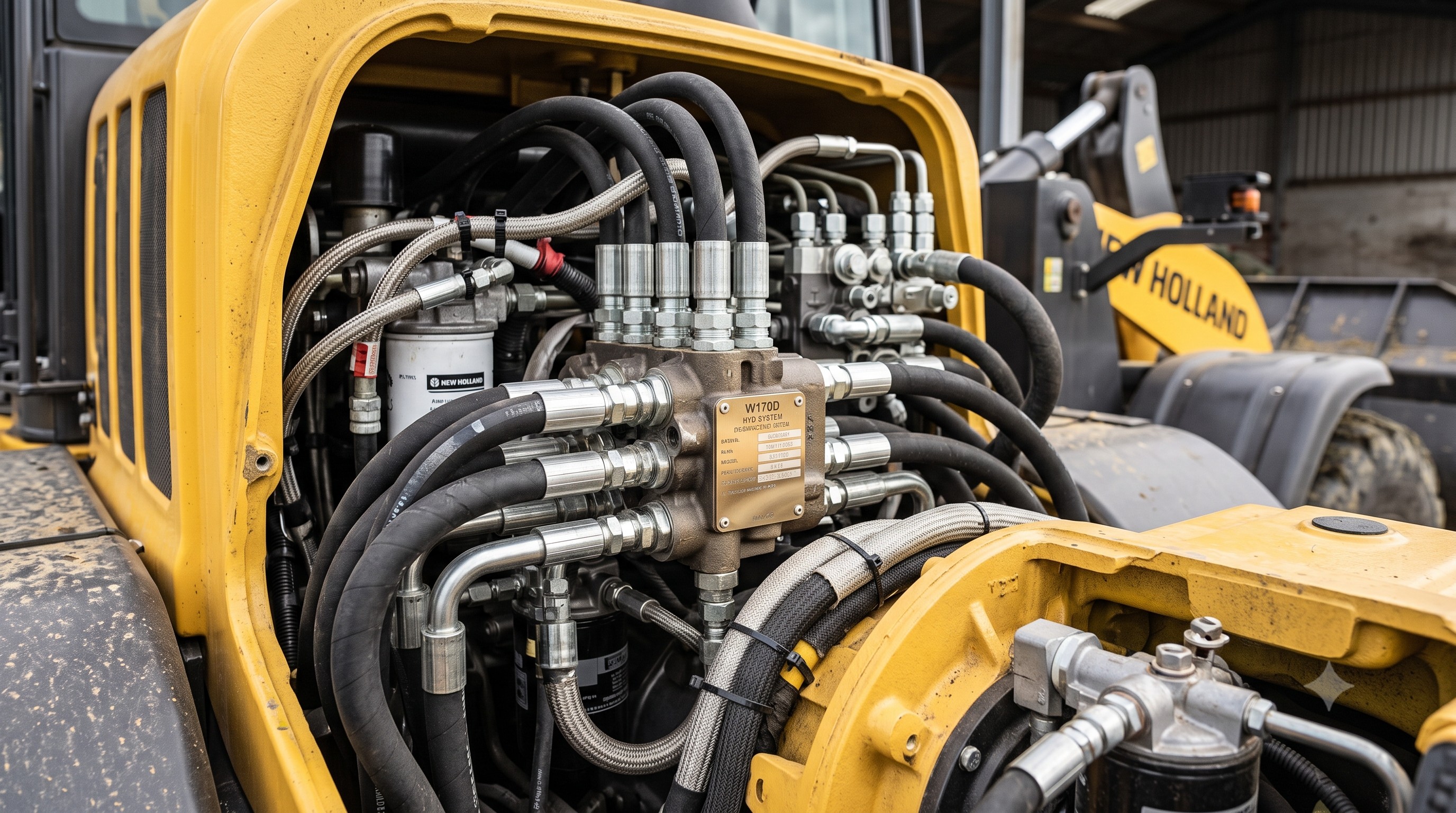

Hydraulic System and Chassis

Durability is paramount, evidenced by a new rear chassis design that integrates a substantial 400-litre fuel tank and a re-profiled counterweight for improved ground clearance and clamp-filling capabilities . The hydraulic system is engineered for muscular performance; the loader arm options, such as 'High Torque' arms, offer exceptional tear-out strength, while 'High Lift' variants provide up to 4.8m of clearance at the pivot pin for high-sided hoppers . The use of non-parallel lift links ensures superior load retention by rolling the attachment back as the arms are raised .

Technical Specifications

For a comprehensive overview, the following table details the key specifications of a leading 20-tonne agricultural loader, the JCB 457S, representing the pinnacle of this class .

Comparative Advantage: TCO & ROI Analysis

Investing in a 20-ton agricultural loader transcends initial capital expenditure; it is a strategic move towards optimizing Total Cost of Ownership (TCO) and maximizing Return on Investment (ROI). These machines are engineered for operational efficiency, featuring an 'Economy' power mode (224hp / 167kW) and an auto engine shut-down function to reduce fuel consumption during idling periods . This dual-mode capability allows operators to match power output to the task, dramatically lowering fuel costs in less demanding applications.

From an asset management perspective, the durability of the drivetrain and chassis components extends the machine's economic lifespan, maximizing residual value and minimizing unexpected downtime . As highlighted in research on heavy equipment management, factors like equipment performance and age are critical determinants of ownership costs, and a high-performance machine like this, when properly maintained, yields optimal financial returns . Furthermore, the 20,000kg towing capacity adds a layer of versatility, allowing the loader to double as a powerful tractor unit, further consolidating fleet costs and improving operational synergy .

Heavy-Duty Application Scenarios

The 20-ton agricultural loader is not a niche tool but a versatile workhorse designed for a multitude of heavy-duty applications. Its design directly addresses the pain points of modern, large-scale operations .

• Silage and AD Feedstock Management: The combination of high lift height and massive breakout force makes it ideal for clamping grass or maize. The ability to utilize a 4.88m (16ft) wide, 7.10cu m capacity folding grass fork enables rapid filling of high-sided bunkers and hoppers, significantly boosting throughput .

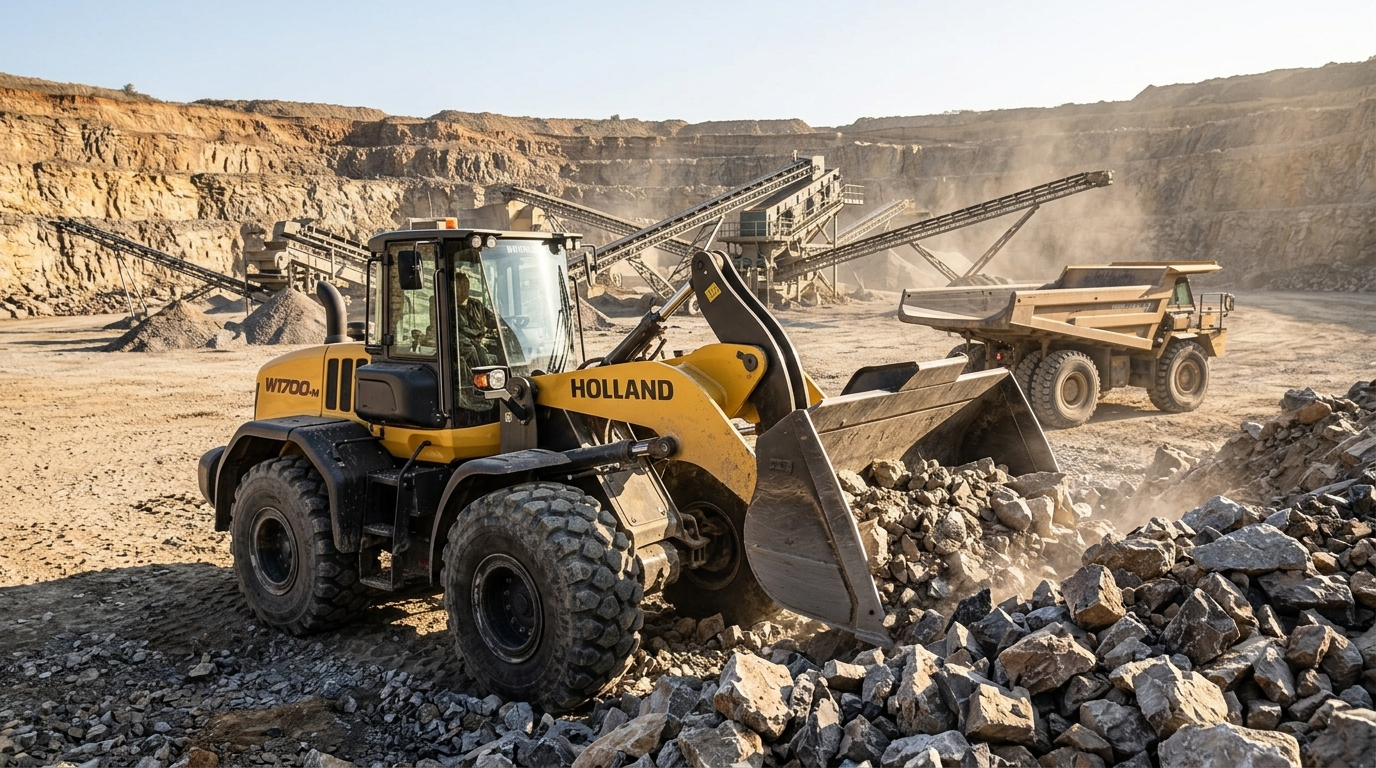

• Bulk Material Loading and Earthmoving: In applications involving sugar beet handling, grain stockpiling, or heavy earthmoving, the loader's high payload (exceeding 5,200 kg) and powerful hydraulics ensure swift, efficient loading cycles .
• Versatile Site Utility: With a 20-tonne capacity Rockinger tow hitch and trailer braking options, it can effortlessly move heavy trailers, aggregate spreaders, or manure tankers across the farm or construction site, replacing the need for a separate tractor .

Conclusion

The 20-ton agricultural loader, exemplified by the JCB 457S, represents a quantum leap in bulk handling and heavy-duty agricultural productivity. Its sophisticated powertrain, featuring a high-horsepower, emissions-compliant engine and an advanced transmission with lock-up torque converter, delivers unparalleled power and efficiency. By focusing on critical engineering details, such as durable chassis design and optimized hydraulic performance, these machines provide a robust solution to the most demanding industrial tasks. For operators seeking to maximize productivity, reduce operational costs, and gain a decisive competitive edge, the 20-ton agricultural loader is the definitive heavy equipment solution for the modern industrial landscape .
